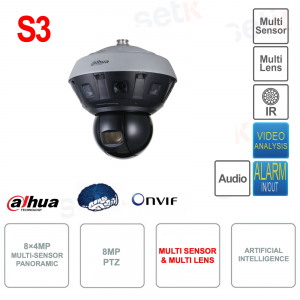

Telecamera IP ONVIF® Panoramica e PTZ - Multi-lente - Multi-sensore - 8x4MP 2.8mm - PTZ 8MP 45x zoom - IA - S3

Camera

Image Sensor

1/1.8” CMOS

Max. Resolution

11520 (H) × 2700 (V)

ROM

Channel 1 (Panoramic): 8 GB
Channel 2 (PTZ): 8 GB

RAM

Channel 1 (Panoramic): 4 GB
Channel 2 (PTZ): 4 GB

Electronic Shutter Speed

Channel 1 (Panoramic): Auto/Manual 1/3 s-1/100,000 s
Channel 2 (PTZ): Auto/Manual 1/1 s-1/300,000 s

Scanning Mode

Progressive

Minimum Illumination

Channel 1 (Panoramic):0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0 (B/W, 30 IRE)
Channel 2 (PTZ):0.001 lux @F1.5(Color, 30 IRE); 0.0001 lux @F1.5(B/W, 30 IRE); 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Channel 1 (Panoramic): NA
Channel 2 (PTZ): ≥500 m (1640.42 ft) (Laser)

IR On/Off Control

Auto; manual; zoomprio

IR LED Number

Channel 1 (Panoramic):NA
Channel 2 (PTZ):7( LASER LED); 2(IR LED)

Lens

Lens Type

Channel 1 (Panoramic): Fixed-focal
Channel 2 (PTZ): Motorized vari-focal

Lens Mount

Channel 1 (Panoramic): M16
Channel 2 (PTZ): Module

Focal Length

Channel 1 (Panoramic): 2.8 mm
Channel 2 (PTZ): 5.5 mm–248 mm

Max. Aperture

Channel 1 (Panoramic): F1.0
Channel 2 (PTZ): F1.5–F5.3

Field of View

Channel 1 (Panoramic): H: 360°; V: 105°
Channel 2 (PTZ): H: 2.02°–64.4°; V: 1.14°–38.37°; D: 2.29°

Close Focus Distance

Channel 1 (Panoramic):1.4 m (4.59 ft)
Channel 2 (PTZ): 0.1 m–5 m (0.33 ft–16.4 ft) (T to W)

Iris Control

Channel 1 (Panoramic): Fixed
Channel 2 (PTZ): Auto

PTZ Dome

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –11° to 90°, auto flip 180

Manual Control Speed

Pan PTZ speed: 240°/s, Pan preset speed: 240°/s
Tilt PTZ speed: 100°/s, Tilt preset speed: 100°/s

Preset Speed

Pan: 0.05° Tilt: 0.05°

Remote PTZ Reset

Yes

Presets

300

Tour

8 (up to 32 preset per tour)

Pattern Number

5

Scanning Number

5

Power-off Memory

Yes

Idle Motion

Preset/Pattern/Tour/Scan

Time Task

Yes

Three-dimensional Positioning

Yes

PTZ Limit

Yes

Position Display

Yes

Information Display

Yes

Time Display

Yes

Intelligent

Intelligence Description

Channel 1 (Panoramic): Perimeter protection, crowd distribution map, vehicle density.
Channel 2 (PTZ): Perimeter protection, video metadata, face recognition

IVS (Perimeter Protection)

Channel 1 (Panoramic): Tripwire; intrusion; parking detection
Channel 2 (PTZ): Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering

Face Recognition

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures

Crowd Distribution Map

Crowd map, global crowd density; crowd density in area; people counting in area

Vehicle Density

Vehicle density; Parking upper limit; traffic congestion alarm

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, helmet.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Channel 1 (Panoramic):
Main stream: 11520 × 2700@(1-25/30fps)
Sub stream: 2048 × 680@(1-25/30fps)
Third stream: 1920 × 1080@(1-25/30fps)
Channel 2 (PTZ):
Main stream: 3840 × 2160@(1-25/30fps)
Sub stream: 704 × 576@(1-25/30fps)
Third stream: 1920 × 1080@(1-25/30fps)

Stream Capability

3 streams

Resolution

Channel 1 (Panoramic):
Main stream: 11520 × 2700; 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096 × 900
Sub Stream: 2048×452
Third Stream: 3840 × 832; 2560 × 560
Channel 2 (PTZ):
Main stream: 3840 × 2160; 2560 × 1440; 1960 × 1080; 1280 × 960; 1280 × 720
Sub Stream: 704 × 576; 352 × 288
Third Stream: 1920 × 1080; 1280 × 960; 1280 × 720

Bit Rate Control

CBR/VBR

Video Bit Rate

Channel 1 (Panoramic):
H.264: 127 kbps–20736 kbps
H.265: 50 kbps–12544 kbps
Channel 2 (PTZ):
H.264: 32 kbps–27740 kbps
H.265: 12 kbps –16572 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

Channel 1 (Panoramic): DWDR
Channel 2 (PTZ): 120 dB

Scene Self-adaptation

Yes

White Balance

Auto; Natural; Street lamp; Outdoor; Manual; Regional Custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Channel 1 (Panoramic): Yes (4 areas)
Channel 2 (PTZ): Yes (8 areas)

Image Stabilization (OIS)

Channel 1 (Panoramic): NA
Channel 2 (PTZ): Optical Image Stabilization

Defog

Channel 1 (Panoramic): NA
Channel 2 (PTZ): Optical defog

Image Rotation

0°/180° (Channel 2 (PTZ)

Privacy Masking

Channel 1 (Panoramic): 4 areas
Channel 2 (PTZ): 8 areas

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error;
SD card durability warning; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; security exception

Network

Network

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP

Interoperability

ONVIF® (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 400 M)

Storage

FTP; SFTP; NFS; SMB; Micro SD card (support max. 512 GB)

Browser

IE: IE 9, IE 10 and IE11
Chrome: Chrome 42 and earlier
Firefox: Firefox 52 and earlier

Management Software

DSS

Cyber Security

Configuration encryption;trusted execution;Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Optical  Module Specification

SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm

Optical Fiber

FC

Optical Fiber Module Type

Gigabit SFP optical module, single mode, single fiber TX-1550nm/RX-1310nm

Audio Input

2 channels (terminal)

Audio Output

2 channels (terminal)

Alarm Input

7 channels in: 5mA 3V–5V DC

Alarm Output

3 channels out: 1,000mA 30V DC/500mA 50V AC

Analog Output

1 channel (CVBS outputs, NBC port)

Power

Power Supply

36V DC

Power Consumption

Basic: 51.48 W (36 VDC)
Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation): 71.9 W (36 VDC)
Heating: Channel 1 (Panoramic): 6 W (36 VDC); PTZ: 5.4 W

Environment

Operating Conditions

–40°C to +70°C (–40°F to +158°F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Protection Grade

IP66; Anti-Corrosion Protection (optional)

Structure

Casing

Metal + Plastic

Dimensions

Φ383 mm × 462 mm (15.07" × Φ18.19")

Net Weight

14.7 kg (32.4 lb)

Gross Weight

19.8 kg (43.7 lb)
