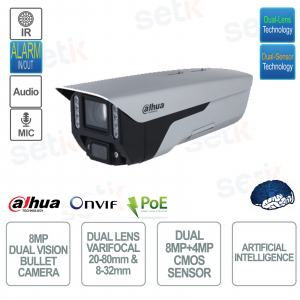

Telecamera Bullet IP POE ONVIF - Doppia ottica e doppio sensore 8MP+4MP - 20-80mm e 8-32mm varifocale - AI

Camera

Image Sensor

Channel 1: 1/1.2" CMOS
Channel 2: 1/1.8" CMOS

Max. Resolution

Channel 1: 3840 (H) × 2160 (V)
Channel 2: 2688 (H) × 1520 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Channel 1:
0.0003 lux@F1.1(Color,30IRE)
0 lux (Illuminator on)
Channel 2:
0.0005 lux@F1.6(Color,30IRE)
0.0002 lux@F1.6(B/W,30IRE)
0 lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

Channel 1: 80 m (262.47 ft) (warm light)
Channel 2: 120 m (393.70 ft) (IR ); 80 m (262.47 ft) (warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

Channel 1: 8 (Warm light)
Channel 2: 2 (illuminator with dual light fusion)

Pan/Tilt/Rotation Range

Channel 1: Tilt: ±5°
Channel 2: Tilt: ±15°

Lens

Lens Type

Motorized vari-focal

Lens Mount

Channel 1: CS
Channel 2: Module

Focal Length

Channel 1: 20 mm–80 mm
Channel 2: 8 mm–32 mm

Max. Aperture

Channel 1: F1.1
Channel 2: F1.6

Field of View

Channel 1: H: 27°–9° ; V: 15°–5° ; D: 31°–10° ;
Channel 2: H: 42°–15° ; V: 23°–9° ; D: 49°–17°

Iris Control

Channel 1: Auto
Channel 2: Auto

Iris Control Type

Channel 1: P-Iris
Channel 2: DC-Iris

Close Focus Distance

Channel 1: 5 m–10m (16.40 ft–32.81 ft)
Channel 2: 3 m–5.5 m (9.84 ft–18.04 ft)

Smart Event

IVS

Abandoned object; missing object

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, face mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); optimization time setting

Face Recognition

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 100,000 face pictures.

People Counting

Tripwire people counting, people counting in area and queue management, generating and exporting report (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.

Crowd Distribution Map

Crowd distribution map; global people counting; people counting in area

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Channel 1:
Main Stream: 3840 × 2160@(1-25/30 fps)
Sub stream: 1920 × 1080@(1-25/30 fps)
Third stream: 1920 × 1080@(1-25/30 fps)
Channel 2:
50 Hz
Main stream: 2688 × 1520@(1-25/30 fps)
sub stream: 1920 × 1080@(1-25/30 fps)
third stream: 1920 × 1080@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

Channel 1: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)
Channel 2: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

Channel 1:
H.264: 32 kbps – 16384 kbps
H.265: 12 kbps – 11776kbps
Channel 2:
H.264: 32 kbps – 15872kbps
H.265: 12 kbps – 9472kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

4 areas

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

8 areas

Time-Division Exposure

Yes

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723;

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; face recognition; video metadata; crowd density

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

Plug-in:
IE: IE 9 and later
Chrome: Chrome 86 and earlier
Firefox: Firefox 86 and earlier
Without Plug-in:
Edge
Chrome: Chrome 86 and later
Firefox: Firefox 86 and later

Management Software

DSS Pro; DMSS

Mobile Client

iOS; Android

Function

Defog (Glass Heating)

Yes

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

2 channels (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

7 channels in: 5 mA 3 V–5 VDC

Alarm Output

3 channels out: 1,000mA 30V DC/500mA 50V AC

Power

Power Supply

12 VDC, 4 A

Power Consumption

Basic: 11.5 W (12 VDC)
Max. (ICR Switch+IR intensity): 36.1 W (12 VDC)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

10–95%

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Protection

IP67

Structure

Casing

Metal + plastic

Product Dimensions

483.4 mm × 197.7 mm × 178.5 mm (19.03" × 7.78" × 7.03") (L × W × H)

Net Weight

6.3 kg (13.89 lb)

Gross Weight

8.5 kg (18.74 lb)
