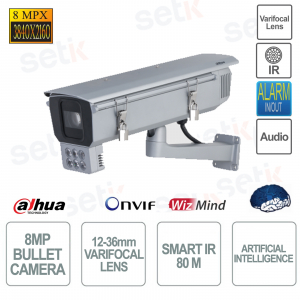

Telecamera Bullet IP ONVIF® - 8MP - Ottica 12-36mm - Smart IR 80m - Intelligenza artificiale - Dahua

Technical Specs

Camera

Image Sensor

1/1.2" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

8 GB

RAM

4 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 Lux@F1.2 (Color,30IRE)
0.0001 lux@F1.2 (B/W, 30 IRE)
0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

80 m (262.47 ft) (warm light)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

6 (Warm light)

Lens

Lens Type

Motorized vari-focal

Lens Mount

CS

Focal Length

12 mm–36 mm

Max. Aperture

F1.2

Field of View

H: 50°–17°;
V: 28°–9°;
D: 58°–19°

Iris Type

Auto

Close Focus Distance

1 m (3.28 ft)

Smart Event

IVS

Abandoned object; missing object

Professional, intelligent

IVS (Perimeter Protection)

Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection

Face Detection

Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: Face, single inch photo; three snapshot methods: Real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting

Face Recognition

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 100,000 face pictures.

People Counting

Support the people counting of tripwire, people counting in area, and displaying and outputting yearly/monthly/daily reports Support queue management, and displaying and outputting monthly/daily reports Support 4 rules configuration for people counting of tripwire, 4 rules configuration for people counting in area , 4 rules configuration for queue management

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: License plate, plate color, vehicle color, vehicle logo, vehicle year, sun visor, seatbelt, smoking, calling, ornament, and annual inspection sticker and more.
Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.
Human body attributes: Top and bottom type and color, bag, hat, and gender.
Human body attributes: Top and bottom type and color, bag, hat, and gender.

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+/H.264+

Video Frame Rate

Main Stream: 3840 × 2160 (1-25/30 fps)
Sub stream: 1920 × 1080@(1–25/30 fps)
Third stream: 1920 × 1080 (1-25/30 fps)
Fourth stream: 1920 × 1080 (1-25/30 fps)
Fifth stream: 704 × 576 (1-25fps)/704 × 480 (1–30 fps)

Stream Capability

5 streams

Resolution

8M (3840 × 2160); 6M (3072 × 2048/3072 × 1728); 5M (2592 × 1944)/4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–16384 kbps;
H.265: 12 kbps–14050 kbps

Day/Night

Color

BLC

Yes

HLC

Yes

WDR

120 dB

Scene Self-adaptation (SSA)

Yes

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Electronic Image Stabilization (EIS)

Yes

Smart Illumination

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Time-Division Exposure

Yes

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G.722.1; G.729

Alarm Event

Alarm Event

No SD card; SD card full; SD card error; network disconnection; illegal access; security exception; IP conflict; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; face recognition; people counting in area; people counting; people number error detection; security exception

Network

Network

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE 11 and earlier;
Chrome: 88.0.4324.190 and earlier;
Firefox: 47.0.2 and earlier

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

Certifications

Certification

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15,Support B

Port

RS-485

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

2 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

3 channels in: 5mA 3V–5V DC

Alarm Output

2 channels out: 1,000mA 30V DC/500mA 50V AC

Power

Power Supply

100–240 VAC 0.6 A

Power Consumption

Basic: 22.5 W (220 V)
Max. (Basic+ WDR+ Intelligence on + Illuminator on + Lens switching): 26 W (220 V)

Environment

Operating Conditions

–30°C to +60°C (–22°F to +140°F)/Less than 95% RH

Storage Temperature

–30 °C to +75 °C (–22 °F to +167 °F)

Protection Grade

IP67

Construction

Casing

Metal + Plastic

Dimensions

513.14 mm × 177.09 mm × 190.7 mm (20.20" × 6.97" × 7.50") (L × W × H)

Net Weight

4.8 kg (10.58 lb)

Gross Weight

6.45 kg (14.22 lb)
