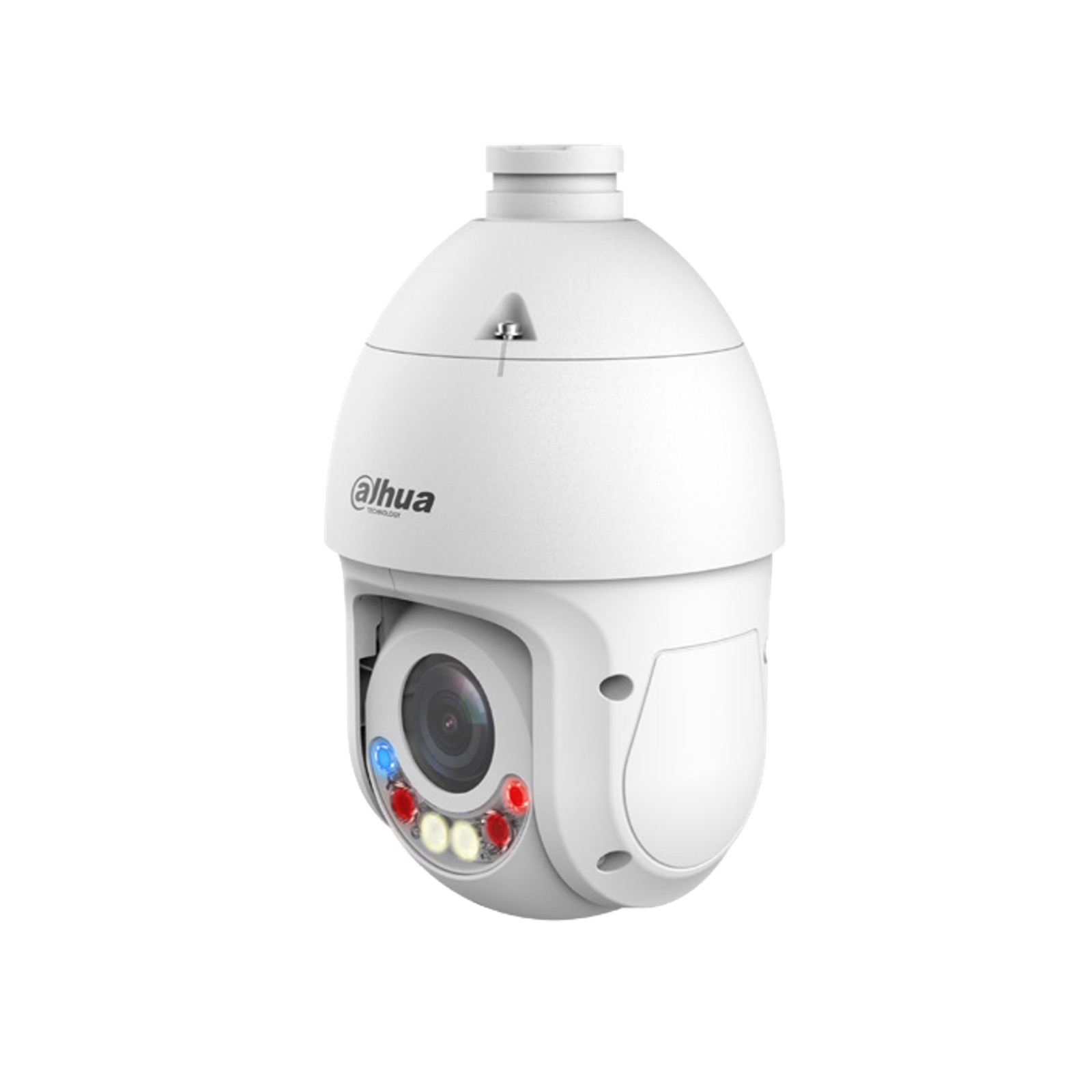

Telecamera IP POE ONVIF PTZ 8MP - 25x zoom 5-125mm - Intelligenza artificiale - IR 100m

Camera

Image Sensor

1/2.8" CMOS

Pixel

8 MP

Max. Resolution

3840 (H) × 2160 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6 (Color, 30 IRE);
B/W: 0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)

Illumination Distance

100 m (328.08 ft) (IR)
50 m (164.04 ft)(White light)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

2 (IR)
2 (Dual light fusion)

Lens

Focal Length

5 mm–125 mm

Max. Aperture

F1.6–F3.6

Field of View

H: 53.1°-3.4°;
V: 30.4°-1.9°;
D: 59.3°-3.9°

Optical Zoom

25×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

0.1m-1.5 m (0.33 ft–4.92 ft)

Iris Control

Auto; manual

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

Pan: 0.1°/s–200°/s
Tilt: 0.1°/s–120°/s

Preset Speed

Pan: 240°/s;
Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Pattern; Preset; Scan; Tour

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Detection

Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

Auto Tracking

Yes

SMD

SMD 4.0

Auto Patrol

It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets

Active Deterrence

Light Warning

Red and blue warning light.
Flash duration: 5 s–30 s
Flash frequency: high, medium, low

Sound Warning

Offers 11 types of sound alarms, and supports importing custom sound alarms.

Video

Video Compression

H.264H;H.264B;Smart H.265+;H.265;MJPEG(Sub Stream);Smart H.264+;H.264M

Streaming Capability

3 streams

Resolution

4K (3840 × 2160); 4M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4K/4M/3M/1080p/1.3 M/720p@(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@(1–25/30 fps)
Sub stream 2: 1080p/1.3 MP/720p@(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 128 Kbps–16,384 Kbps
H265: 128 Kbps–11,776 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

DWDR

HLC

Yes

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Electronic (EIS)

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS;Android

Certification

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014

Port

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))

Alarm Linkage

Capture; recording; send email; preset; pattern; tour; alarm digital input; audio; warning light

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Alarm Input

2 (on-off value input: 0–5 VDC)

Audio Output

1 channel

Power

Power Supply

12 VDC/3 A ± 10%
PoE+ (802.3at)

Power Consumption

12 VDC:
Basic: 8 W;
Max.: 16 W (white light + heated glass + PTZ on + alarm + red and blue light flashing)
POE:
Basic: 9 W;
Max: 17 W (white light + heated glass + PTZ on + alarm + red and blue light flashing)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤95%

Protection

TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection

Structure

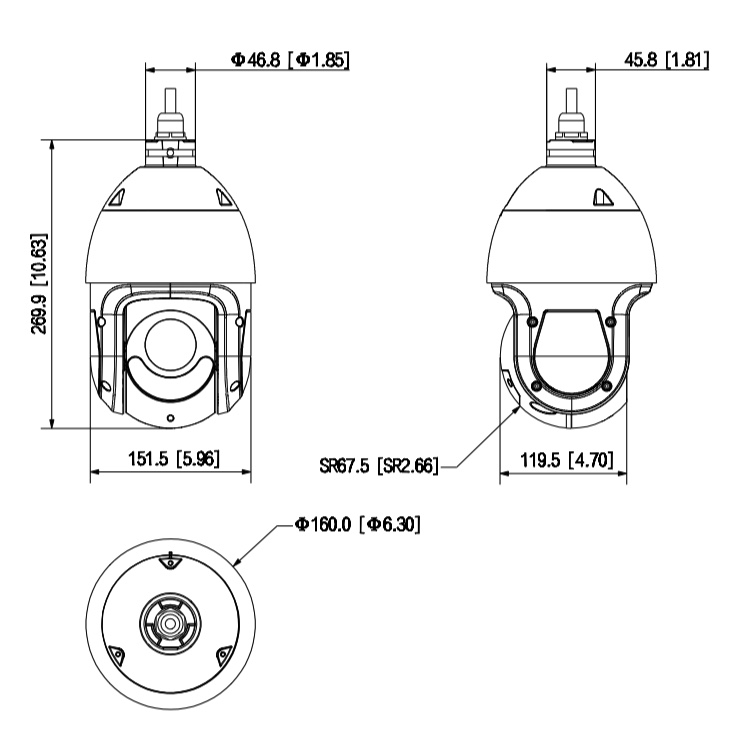

Product Dimensions

269.9 mm × Φ160.0 mm (10.59" × Φ6.30")

Net Weight

2.6 kg (5.73 lb)

Gross Weight

4 kg (8.82 lb)
