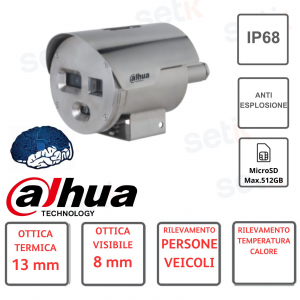

Telecamera IP - termica - antiesplosione - ibrida - videoanalisi - Dahua

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

400 (H) × 300 (V)

Pixel Pitch

17 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

≤40 mK (@f/1.0)

Focal Length

9 mm; 13 mm; 25 mm

Field of View

9 mm: H: 41°; V: 31°

13 mm: H:30.4°; V:22.5°

25 mm: H:15.5°; V:11.6°

Thermal Focus Control

Fixed-focal

Close Focus Distance

9 mm: 1.7 m (5.58 ft)

13 mm: 2.9 m (9.51ft)

25 mm: 9 m (29.53 ft)

Detection Distance?

9 mm: Vehicle: 588 m (1,929.11 ft);

Human: 220 m (721.77 ft)

13 mm: Vehicle:1,019 m (3,342.32 ft);

Human: 382 m (1,253.26 ft)

25 mm: Vehicle: 1,960 m (6,428.80 ft);

Human: 735 m (2,411.38 ft)

Recognition Distance?

9 mm: Vehicle: 147 m (482.27 ft);

Human: 56 m (183.72 ft)

13 mm: Vehicle:255 m (836.60 ft);

Human: 98 m (321.51 ft)

25 mm: Vehicle: 490 m (1,607.59 ft);

Human: 189 m (620.07 ft)

Identification Distance?

9 mm: Vehicle: 73 m (239.50 ft);

Human: 28 m (91.86 ft)

13 mm: Vehicle:127 m (416.66 ft);

Human: 49 m (160.76ft)

25 mm: Vehicle: 245 m (803.79 ft);

Human: 94 m (308.39 ft)

Note:

?Detection Distance: Detects objects, but cannot recognize their characteristics

(objects must cover more than 3.6 pixels of the image).

?Recognition Distance: Classifies objects into general categories, such as human,

vehicle (the object must cover more than 14 pixels of the image).

?Identification Distance: Classifies objects into specific categories based on their

characteristics, such as engineering truck, car (the object must cover more than 28

pixels of the image).

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

19 levels

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°; mirror; rotation mode

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Temperature Measurement Range

Low temperature mode:

–20 °C (–4 °F) to +150 °C (+302 °F)

High temperature mode:

+100 °C (+212 °F) to +550 °C (+1022 °F)

Auto mode

Temperature Measurement Accuracy

Max. (±2 °C, ±2%)

Operating temperature: –20 °C (–4 °F) to +50 °C (+122°F)

Temperature Measurement Mode

Spot: 12

Line: 12

Area: 12

Support 12 rules simultaneously

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

≥1100 TVL

Min. Illumination

Color: 0.01 lux
Black & white: 0.001 lux
0 lux (white light on)

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio

>55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp;
street lamp; natural

Defog

Electronic defog

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Fixed

Image Flip

180°; mirror; rotation mode

Exposure Compensation

Yes

Visible Focus Control

Fixed-focal

Focal Length

4 mm; 6 mm; 8 mm

Field of View

4 mm: H: 90.1°; V: 48.2

6 mm: H: 56°; V: 30°

8 mm: H: 41.3°; V: 23.1°

Close Focus Distance

4 mm: 1.5 m (4.92 ft)

6 mm: 3 m (9.84 ft)

8 mm: 4.4 m (14.44 ft)

Aperture

F2.0

Illuminator On/Off Control

Auto; manual

Illumination Distance

30 m (98.43 ft)

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Thermal:

Main stream: 1280 × 1024; 1280 × 960; 1280 × 720; 400 × 300; 1280 × 960 (default); Sub stream: 640 × 512; 640 × 480; 400 × 300; 400 × 300 (default)

Visible:

Main stream: 2688 × 1520; 1920 × 1080; 1280 × 720; 704 × 576; 2688 × 1520 (default); Sub stream: 704 × 576; 352 × 288; 704 × 576 (default)

Video Frame Rate

Thermal (50 Hz):

Main stream: 1 fps–25 fps, 25 fps by default

Sub stream: 1 fps–25 fps, 15 fps by default

Visible (50 Hz):

Main stream: 1 fps–25 fps, 25 fps by default

Sub stream: 1 fps–25 fps, 15 fps by default

Thermal (60 Hz):

Main stream: 1 fps–30 fps, 30 fps by default

Sub stream: 1 fps–30 fps, 15 fps by default

Visible (60 Hz):

Main stream: 1 fps–30 fps, 30 fps by default

Sub stream: 1 fps–30 fps, 15 fps by default

Audio Compression

PCM; G.711a; G.711mu; AAC

Image Encoding Format

JPEG

Function

Two-way Audio

Yes

Sound and Light Alarm

Local audio and white light alarm prompts

Network Protocol

IPv4/IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE

Storage

FTP; Micro SD card (optional)

Micro SD Card (Max.)

512 GB

Interoperability

ONVIF; CGI

Browser

IE; Firefox; Chrome

User/Host

Up to 12 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC

address; encrypted HTTPS; IEEE 802.1x; controlled

network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection;

memory card state detection; memory space detection

Fusion Mode

Yes. Disabled by default.

PIP

Yes

Intelligence

Cold/Hot Spot Trace

Yes

Perimeter Protection

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

2

Alarm Output

2

Audio Input

1

Audio Output

1

RS-485

1

Power

Power Supply

12 VDC ± 20%, PoE (802.3af)

Power Consumption

Basic: 5 W

Max: 10 W

ePoE

Yes

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Physical Characteristics

Protection

IP68

Reliability

Surge protection: 6 kV

Air discharge of 15 kV

Contact discharge of 8 kV

Structure

Product Dimensions

248 mm × 149 mm × 155.7 mm (9.76" × 5.87" × 6.13") (L × W × H)

Packaging Dimensions

Package: 330 mm × 256 mm × 256 mm (12.99" × 10.08" × 10.08") (L × W × H)

Protection box: 535 mm ×535 mm ×360 mm (21.06" ×21.06" × 14.17") (L × W × H)

Net Weight

≤5.8 kg (12.79 lb)

Gross Weight

≤6.8 kg (14.99 lb)

Certification

Certifications

CE/FCC

Explosion-proof

certification

ATEX, IECEx:

II 2G Ex db IIC T6 Gb/II 2D Ex tb IIIC T80 °C Db

Heat Detection Distance

Focal Length

Max. Distance

9 mm

540 m (1,771.65 ft)

13 mm

780 m (2,559.06 ft)

25 mm

1,500 m (4,921.26 ft)

Note:

The table displays the measured distances obtained from using the target size

2 m × 2 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.

Temperature Measurement Distance

Focal Length

Min. Distance

Max. Distance

9 mm

1 m (3.28 ft)

5 m (16.4 ft)

13 mm

2 m (6.56 ft)

10 m (32.81 ft)

25 mm

4 m (13.21 ft)

20 m (65.62 ft)

Note:

The table displays the measured distances obtained from using the target size

0.1 m × 0.1 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
