Barriera a raggi infrarossi a doppio fascio codificato a basso assorbimento per esterno con portata 30m. 4 frequenze di fascio selezionabili direttamente in campo, integrate con un circuito D.Q. (disqualifica ambientale) per un funzionamento ottimale. Include la funzione di regolazione del tempo di interruzione del fascio, segnalazione tramite LED e uscita per batteria bassa. 4 pile al litio SAFT LSH20. - Protezione IP55 . - AX-100TFRC

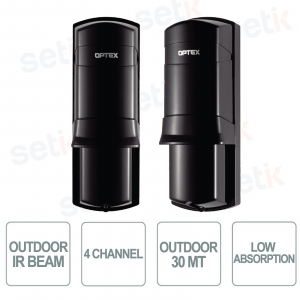

BARRIERA A RAGGI INFRAROSSI A TWIN A BASSO ASSORBIMENTO DA ESTERNO FILIARE - PORTATA DI 30 M - IP55 - OPTEX

Dettagli prodotto
- Barriera a raggi infrarossi twin da esterno a basso assorbimento a media portata
- Portata m 30 in esterno
- Consumo: 620mA
- Alimentazione: 3.6V 13.0 Ah 4 batterie a litio LSH20
- Temperatura di lavoro: -20 °C ~ + 60 °C
- Protezione IP65
- Dimensioni:217 x 89 x 163 mm

Scheda tecnica
Model | AX-100TFRC |
Detection method | Infrared beam interruption detection |
Maximum detection range | 30m (100ft.) |
Maximum arrival range | 265m (870ft.) |
Interruption period | Selectable between 50, 100, 250, and 500m sec. |
Selectable beam frequency | 4 channel |
Power Sourace | 3.6V 13.0 Ah: LSH20 lithium batteries manufactured by SAFT (not invluded) Trasmitter: 2units Reciver: 2 units |
Current Drow | 620mA T: 300mA+R:320mA (at 25°C, 3.6 VDC) |
Batterie Life | 5 Years |
Output | |
Alarm period | 2sec. (±1) nominal |
Alarm output | From C-Solid State Switch: 3.6 VDC, 0,01A |
D.Q. output | From A/B-solid State Switch: 3.6 VDC, 0.01 A |
Low Battery output | From A/B-solid State Switch: 3.6 VDC, 0.01 A (Transmitter & Receiver) |
Tamper output for front cover | From C: 3.6 VDC, 0.01A activites when cover removed (reciver only) |
Tamper output for back box | From C: 3.6 VDC, 0.01A activites when either back box or chassis is removed from the installment |
Indicator | |
Alarm Indicator (Receiver) | (1) Light on - IR Beam not received. (2) Flickering Light - IR Beams not recieved sufficiently (3) Light Off - IR Beams received |
Power (Trasmitter) | Power ON:ON Power OFF:OFF |
Low Battery | Voltage reduction: flicker |
Operation temperature | -20°C-+60°C (-4°F - +140°F) |
Operating ambient humidity | 95% (max.) |
Alingnment angle | ± 90° Horizontal, ± 5° Vertical |
Mounting | Indoor/Outdoor, Wall/Pole/Tower mounting (Optional main unit mounting brackets are required, when the unitsmount in the tower) |
Weight | 1600g (56.5oz) (Total weight of transmitter + receiver, excluding accessoeries) |
International protection | IP55 |
