Barriera a raggi infrarossi a doppio fascio codificato per esterno con portata 30m. Memoria allarme tenuta per 55 minuti. La codifica selezionabile del fascio è progettata per prevenire interferenze indesiderate, garantendo un funzionamento affidabile anche in situazioni che prevedono l'uso di fasci multipli su lunghe distanze o in presenza di barriere installate in colonna. - Protezione IP65 . - AX-100TF

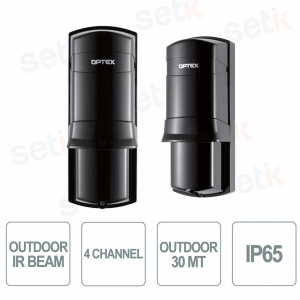

BARRIERA A RAGGI INFRAROSSI A TWIN DA ESTERNO FILIARE - PORTATA DI 30 M - IP65 - OPTEX

Dettagli prodotto
- Barriera a raggi infrarossi twin da esterno a media portata
- Filiare
- Portata m 30 in esterno
- Memoria allarme 55 minuti
- Consumo: 44mA
- Alimentazione: 10.5 - 28V DC
- Temperatura di lavoro: -35 °C ~ + 60 °C
- Protezione IP65
- Dimensioni:170 x 65 x 70 mm

Scheda tecnica
Model | AX-100TF |
Detection method | Infrared beam interruption detection |
Maximum detection range | 30m (100ft.) |
Maximum arrival range | 300m (1000ft.) |
Interruption period | Selectable between 50, 100, 250, and 500m sec. |
Selectable beam frequency | 4 channel |
Power Supply | 10.5 - 28V DC |
Current consumption (transmitter + receiver) | 44mA (max.) |
Alarm period | 2sec. (±1) nominal |
Alarm output | N.C./N.O. 28V DC, 0.2A (max.) |
D.Q. output | N.C. 28V DC, 0.2A (max.) |
Tamper switch | Opens when cover is removed at 28V DC, 0.2A max |
Operation Temperature | -35°C to +60°C (-31°F to +140°F) Use the optional heating unit (HU-3) in conditions of -25°C (-13°F) or below. |
Operating Humidity | 95% (Max) |
Alignment Angle | ± 90° Horizontal, ± 5° Vertical |
Mounting | Wall and pole mounting |
Weight | 700g (24.7oz.) |
IP rating | IP65 |
Download
