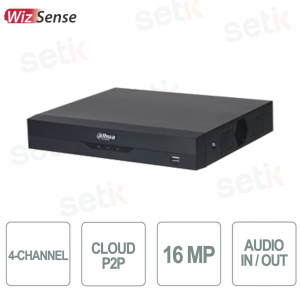

Videoregistratore NVR IP per la sorveglianza. 4 Canali fino a 16Megapixel 4K ULTRA-HD in preview e playback, Max 80Mbps banda , Video Compressione Smart H.265+; H.265; Smart H.264+; H.264; MJPEG, 1 HDMI, 1 VGA, Max 1HDD SATA 16TB, 2 Porte USB, 1 Ingresso + 1 Uscita Audio, 1 porta RJ-45 10/100Mbps. Compatibile ONVIF, supporto Video Analisi. Serie WizSense. NVR4104HS-EI
NVR IP 4 CANALI 4K ULTRA-HD FINO A 16 MEGAPIXEL - H.265+ - VIDEO ANALISI AUDIO - SERIE WIZSENSE DAHUA

4 Canali 4K ULTRA-HD fino a 16Megapixel - Max 80Mbps bandalarga - Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Compatibile ONVIF® - Video Analisi supportata - 1 Ingresso + 1 Uscita Audio
Supporta 1HDD SATA 16 TB (non incluso) - Garanzia 24 mesi
TECNOLOGIA 4K - ULTRA HD - COSA SIGNIFICA? | |
---|---|
|
Dettagli prodotto

|
Questo NVR supporta la videocompressione in H.264 e anche nel nuovo standard H.265 Ottimizzato per Mobile |
![]() |
Nuova Tecnologia ULTRA HD 4K! Risoluzione ancora più superiore rispetto al FULL-HD! Maggior dettaglio disponibile, maggior senso di profondità e realismo. |
![]() |
4 Canali con risoluzione fino a 16Megapixel! Max 80Mbps larghezza di banda
|
![]() |
Supporta telecamere IP ONVIF® Versione 2.4 |
![]() |
Supporta telecamere IP: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more (il funzionamento con i modelli qui proposti è da verificare di caso in caso) |
![]() |
Questo videoregistratore supporta alcune funzioni della Video Analisi: ![]() |
![]() |
Funzione Cloud con Easy4IP |
![]() |
Questo NVR supporta telecamere con a bordo IVS (Funzioni di Video Analisi)
|
![]() |
Monitoraggio multiplo di rete: Web viewer, CMS(DSS/PSS) & DMSS(miglior software TVCC per Mobile) |
![]() |
Compatibile con tutti i dispositivi Mobile: Android, Iphone,![]() |
![]() |
Equipaggiato di: 1 SATA III Port, fino a 16 TB di capacità. (Hard disk non incluso) ATTENZIONE: sui sistemi NVR usate dischi specifici audio/video. Per avere maggiori informazioni, leggete il nostro articolo dedicato. |
![]() |
Funzione Motion. La registrazione parte nel momento in cui la telecamera rileva movimento. |
![]() |
1x RJ-45 (10/100Mbps) |
![]() |
Questo NVR presenta 2x Porte USB |
![]() |
Questo prodotto presenta 1x porta HDMI. |
![]() |
Questo DVR presenta 1 ingresso e 1 uscita audio |
![]() |
Dynamic DNS: permette di raggiugere l'NVR anche in caso di IP Dinamico |
![]() |
Questo NVR dispone di invio email.
Inoltre registra e invia snapshot su Cloud Storage esterno (Dropbox, Skydrive) |
![]() |
Questo prodotto è coperto da Garanzia di 24 mesi. |
Scheda tecnica
Model: DVR | NVR4104HS-EI |
SYSTEM | |
Main Processor | Industrial-grade processor |
Operating System | Embedded LINUX |
Operating Interface | Web, Local GUI |
AI | |
AI by Recorder | Face detection, face recognition, perimeter protection, and SMD Plus |
AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
Perimeter Protection | |
Perimeter Performance AI by Recorder (Number of Channels) | 2 channels, 10 IVS rules for each channel |
Perimeter Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
Face Detection | |
Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
Face Detection Performance of AI by Recorder (Number of Channels) | 1 channel (up to 12 face images/s each channel) |
Face Detection Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
Face Recognition | |
Face Database Capacity | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
Face Detection Performance of AI by Recorder (Number of Channels) | 4-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
Face Recognition Performance of AI by Camera (Number of Channels) | All channels (8 targets/s) |
SMD Plus | |
SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
SMD Plus by Camera | All channels (16 targets/s) |
Audio and Video | |
Access Channel | 4 channels |
Network Bandwidth |
80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing |
Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 3-channel 6 MP@30 fps; 4-channel 5 MP@30 fps |
Video Output | 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
Multi-screen Display | Main Screen: 1/4 Sub Screen: 1/4 |
Third-party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
Compression Standard | |
Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
Audio Compression | G.711a; G.711u; PCM; G726 |
Network | |
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
Mobile Phone Access | iOS; Android |
Interoperability | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
Browser | Chrome; IE; Safari; Edge; Firefox |
Recording Playback | |
Multi-channel Playback | Up to 4 channels |
Record Mode |
General, motion detection; intelligent; alarm |
Backup Method |
USB device and network |
Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback |
Alarm | |
General Alarm | Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm |
Anomaly Alarm |
Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception |
Intelligent Alarm |
Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
Alarm Linkage |
Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email |
Port | |
Audio Input | 1-channel RCA |
Audio Output | 1-channel RCA |
Disk Interface | 1 SATA port. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature. |
USB | 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
HDMI | 1 |
VGA | 1 |
Network Port | 1 (10/100 Mbps Ethernet port, RJ-45) |
General | |
Power Supply | 12 VDC, 2 A |
Power Consumption | <10 W(without HDD) |
Net Weight | 0.81 kg (1.79 lb) |
Gross Weight | 1.41 kg (3.11 lb) |
Product Dimensions | 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H) |
Packaging Dimensions | 334 mm × 89 mm × 315 mm (13.11" × 3.50" × 12.40") (W × D × H) |
Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
Operating Humidity | 10%–93% (RH), non-condensing |
Installation | Rack or desktop |
Certifications | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
