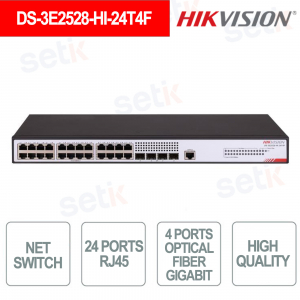

Il DS-3E2528-HI-24T4F di Hikvision, è uno switch di rete 24 Porte RJ45 + 4 Porte fibra ottica gigabit, Fino a 56 Gbps di larghezza di banda.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
SWITCH DI RETE 24 PORTE RJ45 - 4 PORTE FIBRA OTTICA GIGABIT - 56 Gbps - HIKVISION

24 Porte RJ45 + 4 Porte fibra ottica gigabit - Capacità di commutazione 56 Gbps - MAC 16K - IEEE 802.3ad (aggregazione dinamica dei collegamenti) e aggregazione statica delle porte
Dettagli prodotto

- Switch di rete - Hikvision
- 24 Porte RJ45
- 4 porte fibra gigabit
- supporta il protocollo di protezione dell'anello Ethernet a livello di telecomunicazione con un tempo di spostamento di protezione minore
- Plug and play senza configurazione
- dispone di potenti funzioni ACL per accedere e controllare i dati L2-L7, fornendo vettori flessibili e vari
- supporta l'In-Service Software Upgrade (ISSU) per garantire l'incessante inoltro dei dati durante
Scheda tecnica
Model | DS-3E2528-HI-24T4F |
General | |
Shell | Metal |
Net Weight | 2.10 kg (4.63 lb) |
Gross Weight | 2.90 kg (6.39 lb) |
Dimensions (W × H × D) | 440.00 mm × 160.00 mm × 43.60 mm (17.32'' × 6.29'' × 1.71'') |
Operating Temperature | -5 °C to 45 °C (23 °F to 113 °F) |
Storage Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
Operating Humidity | 10% to 95% (no condensation) |
Relative Humidity | 5% to 95% (no condensation) |
Power Supply | AC:100 V~240 V AC,50/60 Hz |
Installation Mode | Rack (equipped with mounting ears) |
Max. Power Consumption | 21 W |
Power Consumption in Idle | 14 W |
Surge Protection | 6 kV |
Network Parameters | |
Porti | 24 × Gigabit RJ45 port,4 × Gigabit fiber optical port |
MAC Address Table | 16 K |
Internal Cache | 1.5 Mbits |
Switching Capacity | Whole-Device Performance: 56 Gbps Port Performance: 56 Gbps |
Packet Forwarding Rate | Whole-Device Performance: 41.66 Mpps Port Performance: 41.66 Mpps |
Software Function | |
Ethernet | LLDP Static MAC configuration Limit of number of MAC addresses to be learned (up to 16K) Port mirroring and traffic mirroring Port aggregation (up to 24 groups and 8 ports for each group) Port isolation STP/RSTP/MSTP IEEE 802.3ad (dynamic link aggregation) and static port aggregation |
VLAN | 802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP |
IP Routing | Static routing RIP/OSPF |
DHCP | DHCP Relay DHCP Client DHCP Snooping |
Multicast | IGMP V1/V2/V3 snooping PIM Snooping Multicast VLAN IPv6 multicast setting |
QoS | SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
ACL | ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL |
Security | Hierarchical user management and password protection SSH for a secure encrypted channel for user login Specific IP address based FTP logging and password mechanism Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet MAC address limit IP+MAC+PORT binding IEEE 802.1x Radius and AAA SNMPv3 Broadcast suppression |
System Management | Command line configuration via console/AUX Modem/Telnet/SSH Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files SNMP V1/V2c/V3 sFlow NQA NTP clock System operating logs |
IPv6 | IPv6 static routing and dual-stack DHCPv6 Client and DHCPv6 Snooping ND and PMTU IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution |
Reliability | Hot patch, in-service patch upgrade |
HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device. |
Approval | |
EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) |
Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
