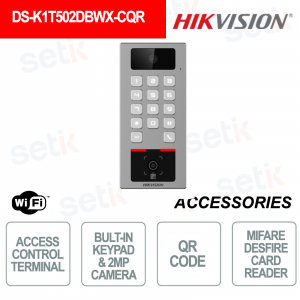

DS-K1T502DBWX-CQR - Terminale per il controllo degli accessi con camera da 2MP - Lettore schede Mifare e Desfire - supporta metodi di autenticazione carta, PIN, codice QR - Connessione con card reader esterni via RS-485 - Audio bidirezionale via SIP 2.0. - Protezione IP65 e IK09 - Record 100.000 tessere, 300.000 eventi - Tamper - WIFI - SLot per SD card - Wiegand - allarme 1in/1out. HIKVISION
DS-K1T502DBWX-CQR | TERMINALE DI CONTROLLO ACCESSI - HIKVISION

-
CARATTERISTICHE PRINCIPALI:
- Terminale per il controllo degli accessi DS-K1T502DBWX-C(STD) di HIKVISION
- Protezione IP65 e IK09
- Camera da 2MP integrata
- Consente autenticazione multipla
- Lettore integrato di schede Mifare, Desfire e QR code
- Distanza lettura schede da 0 a 3cm
- Lettore integrato di impronte digitali
- Protocollo RS-485 per la comunicazione e connessione con card reader esterni
- Audio bidirezionale via protocllo SIP 2.0
- Tamper
- Allarme 1in/1out
- Exit Button
- WIFI
- Record:
Fino a 100.000 schede
Fino a 300.000 eventi - Supporta Hik Connect mobile App
Scheda tecnica
DS-K1T502DBWX-CQR | |
Video |
|
Lens |
1 |
Video compression standard |
H.264 and H.265 |
Resolution |
2 MP |
FOV |
HFOV = 110°; VFOV = 81°; DFOV = 122° |
Network |
|
Wired network |
10 M/100 M self-adaptive |
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
Bluetooth |
Support |
Interface |
|
Network interface |
1 RJ-45 10/100 Mbps self-adaptive |
Lock control |
1 |
Exit button |
1 |
Door contact input |
1 |
Alarm input |
1 |
Alarm output |
1 |
TAMPER |
1 |
RS-485 |
1, RS-485 (Half duplex,HIKVISION) |
Wiegand |
1, Wiegand (Hik 26bit,Hik 34bit) |
SD Card Slot |
null |
Event capacity |
300,000 |
Authentication |
|
Card type |
CPU card No.;M1 card content;M1 card;DESfire card;Felica card |
General |
|
Built-in access controller |
Support |
Power supply |
12 VDC to 24 VDC, 1 A |
Power consumption |
≤12 W |
Working temperature |
-40 ℃ ~ +70 ℃ (-40 °F ~ +158 °F) |
Protective level |
IK09, IP65 |
Language |
Arabic, English, French, Indonesian, Italian, Portuguese (Brazil), Russian, Spanish (Europe), Thai, Ukrainian, Vietnamese, German, Polish, Hungarian, Czech, Romanian, Bulgarian, Croatian, Serbian, Greek, Slovak, Portuguese, Dutch, and Turkish |
Function |
|
Hik-Connect |
Support |
Video intercom |
Support |
