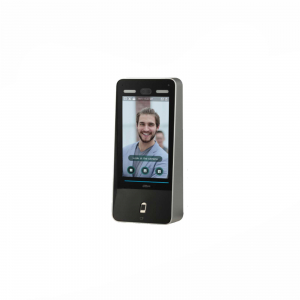

ASI8214Y-V3 Terminale controllo accessi dahua e rilvazione presenze, con riconoscimento facciale ed impronte digitali. Display 10,1" TFT Touch screen 1280x800 con doppia lente grandangolare 2MP, Lettore RFID IC CARD, 100.000 utenti, 100.000 tessere, 100.000 password, 10.000 impronte digitali. I dati dell'utente possono essere memorizzati presso il controller di accesso; può contenere 100, 000 immagini del viso e lavorare senza rete. RS232, RS485 /Wiegand, 1 USB 2.0, 2 Ingressi Allarme / 2 Uscite Allarme, Pulsante di apertura porta. Ideale sia per interno che esterno. Dahua Technology
1.433,73 €
3.334,26 € -57%Scrivici dove e ti sconteremo la differenza fino a fine mese!
Descrizione Dettagli Prodotto Scheda tecnica Ulteriori Dettagli Download
CARATTERISTICHE PRINCIPALI:
| ASI8214Y-V3 | |
| System | |
| Main Processor | Embedded Processor |
| Internet Protocol | IPv4, RTSP, RTP, TCP, UDP, P2P |
| OSDP Protocol | Yes |
|
Interoperability |
CGI |
| SDK | Support SDK |
| Basic | |
| Display | 10.1 inch TFT screen |
| Screen Type | Capacitive touch screen |
| Screen Resolution | 1280x800 |
| Camera | 2MP CMOS |
| WDR | 120dB |
| Light Compensation |
Auto whitelight fill light Auto IR fill light |
| Status Indicator Light | 1 indicator lights. Red: Recognition failed; Green: Recognition succeeded; Blue: Standby mode |
| Voice Prompt | Yes |
| Housing Material | PC+ABS; Aluminum alloy frame |
| Function | |
| Unlock Mode | Card/Password/Fingerprint/Face unlock Card, password, fingerprint, and face combination unlock |
| Card Reading Type | IC Card |
| Period List | 128 |
| Holiday Period | 128 |
| First-Card Unlock | Support |
| Remote Verification | Support |
| Peripheral Card Reader | 1 RS-485 and 1 Wiegand |
| Multiple Card Authentication | Support |
| Real-Time Surveillance | Support |
| Web Configuration | Support |
| Card reading distance | 1cm-4cm |
| Face Recognition Range | Face-camera distance: 0.3 m–2.0 m Human height:0.9 m–2.4 m |
| Face Verification Accuracy | ≥99.5% |
| Face Recognition Speed | 0.2s |
| Fingerprint Sensor Type | Capacitance |
| Fingerprint Verification Mode | 1:N |
| Fingerprint Comparison Time | ≤1.5S |
| Capacity | |
| User Amount | 100, 000 |
| Face Amount | 100, 000 |
| Fingerprint Amount | 10, 000 |
| Card Amount | 100, 000 |
| Password Amount | 100, 000 |
| Storage Record Amount | 100, 000 |
| Port | |
| RS-485 | 1 |
| RS-232 | 1 |
| Wiegand | 1 (26, 34, 66) |
| USB | 1 USB2.0 port |
| Ethernet | 1 10M/100M Ethernet Port |
| Alarm Input | 2 |
| Alarm Output | 2 |
| Alarm Linkage | Support |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-Passback | Support |
| Tamper Alarm | Support |
| Duress | Support |
| Door Sensor Timeout | Support |
| Illegal Intrusion | Support |
| Illegal Card Exceeding Threshold |
Support |
| Duress Fingerprint | Support |
| General | |
| Power Supply | DC 12V 2A |
| Ingress Protection | IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Power Consumption | ≤24W |
| Dimensions | 396.9mm×185.6mm×77.2mm |
| Operating Temperature | 30°C to +50°C |
| Operating Humidity | 5%RH–95%RH |
| Working Environment | Indoor and outdoor |
| Gross Weight | 4.32 kg |
| Installation Method | Wall mount |
