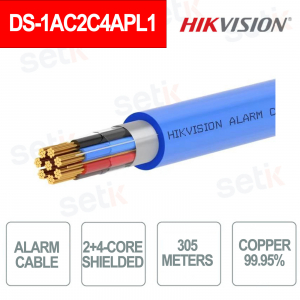

DS-1AC2C4APL1 | CAVO DI ALLARME - HIKVISION
DS-1AC2C4APL1 cavo di allarme schermato 2+4-core è ideale per impianti in grattacieli, hotel, ospedali e altri edifici complessi. Adatto per allarmi antincendio, antifurto e comunicazioni vocali, offre alta resistenza meccanica, ottima trasmissione grazie al rame nudo, ed è ignifugo (EN50575). Facile da installare, funziona da -20°C a +70°C ed è conforme alla direttiva RoHS 2.0.

Scheda tecnica
Model | DS-1AC2C4APL1 |
Categoria | |
Product Category | Alarm Cable 2x0.75mm2+4x0.22mm2 |
Fire resistance | |
Fire resistance | CPR Eca |
Conductor/Conductor 1 | |
Conductor Material | Bare Stranded Copper (99.95%) |
Conductor spec | 7/(0.185± 0.007) mm 25 AWG |
Conductor/Conductor 2 | |
Conductor Material | Bare Stranded Copper (99.95%) |
Conductor spec | 24/(0.185± 0.007) mm 19AWG |
Insulation/Insulation 1 | |
Insulation Material | LSZH |
Insulation Thickness | 0.2 mm |
Insulation Diameter | 1.15± 0.10 mm |
Insulation/Insulation 2 | |
Insulation Material | LSZH |
Insulation Thickness | 0.2 mm |
Insulation Diameter | 1.60± 0.10 mm |
Shield | |
Shield | Drain wire + Aluminum foil |
Drain | |
Drain Material | Bare Stranded Copper (99.95%) |
Conductor Spec | 7/(0.185± 0.007) mm 25 AWG |
Rip-cord | |
Rip-cord | Yes, Nylon |
Jacket | |
Jacket Material | LSZH |
Jacket thickness | 0.50 mm |
Jacket Diameter | 5.20 ± 0.50 mm |
Color | Blue |
Jacket physical properties | |
Tensile strength | ≥ 10 Mpa |
Elongation | ≥ 150% |
Cold bend | -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks |
Electrical Characteristics | |
DC resistance | ≤ 95 Ω/Km(0.22mm²) ≤ 29 Ω/Km(0.75mm²) |
Elongation | ≤ 4.0% |
Cold bend | 300 V |
Environmental Specifications | |
Usage scenarios | Indoor |
Operating Temperature | -20°C to 70°C |
Packaging and Weights | |
Packaging Type | Reel in box |
Package dimension | 328mm×286mm×330mm |
Packaging quantity | 1 |
Length | (305 ± 1.5) m |
Weight | 16.60±2.00kg |
