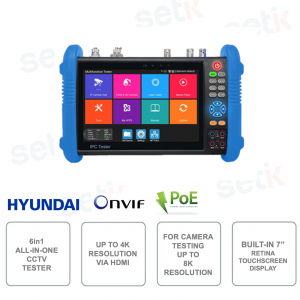

Tester IP POE ONVIF 6in1 all in one per sistemi CCTV - Per telecamere fino a 8K - Display 7 Pollici integrato -
HYU-1076 - Tester IP HYUNDAI - Multifunzione, 6in1, con WIFI incorporato e display da 7 pollici touchscreen retina 1280x800 - Supporta CVBS, CVI, TVI, SDI, AHD, IP - Supporta formato H.264/H.265 fino a 4K (in/out) - HDMI in: 4K 30fps - HDMI out: 4K 60fps - Porte Ethernet Gigabit x2 - Audio input. Ideale per il testing di sistemi videosorveglianza con risoluzione fino a 8K.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
TESTER MULTIFUNZIONE 6in1 HYUNDAI - WIFI INCORPORATO - TOUCH SCREEN DA 7 POLLICI RETINA - HYU-1076

HYU-1076 - Tester Mutlifunzione 6in1 (CVBS, CVI, TVI, AHD, SDI, IP), con touchscreen retina display da 7 pollici integrato 1280x800 e funzionalità WIFI.
HDMI out: max 4K 60fps. HDMI in: max 4K 30fps. Funzione Hotspot. Supporta H.265 fino a 4k 3840x2160p - Supporta ONVIF® - 1xPorte Ethernet Gigabit - Prodotto disegnato per l'allestimento di sistemi di videosorveglianza - MicroSD Memory Card da 8GB inclusa - Controllo PTZ, cattura immagini, registrazione video, playback dei video registrati. Audio input - Alimentazione PoE supportata - Media Player integrato.
Dettagli prodotto

- Tester da CCTV multifunzione all-in-one - 6 in 1 - Touchscreen da 7" - Supporto per CVI/TVI di fino a 8MP, AHD di fino a 5MP, SDI e IP H.265/H.264 fino a 4K - HYU-1076
- Incorpora WiFi e analizzatore WiFi
- Display retina Touchscreen da 7 pollici con risoluzione 1280x800
- Entrata audio
- Codec Video H.265 fino a 4K
- Supporto per camere fino a 8K (IP)
- Supporto per test fino a 8MP (TVI/CVI/AHD/ex-SDI)
- Entrata/uscita HDMI 4K (30fps in / 60fps out)
- Controllo PTZ
- Test UTP cable
- TDR test
- Test di attenuazione BNC
- Digital Cable tracing
- Uscita PoE
- Uscita di alimentazione 24V, 12V e 5V
- Supporta Onvif
- Supporta PoE
- 2x RJ45 Gigabit
- MicroSD Memory Card da 8GB inclusa
- Temperatura di funzionamento: -10°C ~ +50°C
- App incluse: EVOPLUS, HYUVMS, ASMS, HYU CONNECT, HYUPLUS
- Dimensioni: 240 x 154 x 46 mm
Scheda tecnica
HYU-1076 |
All-in-one tester for 8K security camera testing |
Used for installation and maintenance of IP cameras, analog cameras and other security equipment |
Numerous App tools and automatic OS update support |
7" retina touch screen (1200x800 pixels) |
8K H.265 video display through main stream |
8MP (3840x2160) TVI test at 15 fps, 4X zoom, video recording and playback, coaxial PTZ control and OSD menu calling |
8MP (3840x2160) AHD test at 15 fps, 4X zoom, video recording and playback, PTZ coaxial control and OSD menu call |
8MP (3840x2160) CVI test at 12.5/15 fps, 4X zoom, video record and playback, coaxial PTZ and OSD menu call |
8MP EX-SDI test (3840x2160) at 25/30 fps, 4X zoom, video record and playback, coaxial PTZ and OSD menu call |
2MP HD-SDI test (1920x1080) at 25/30/50/60 fps, 4X zoom, video recording and playback, coaxial PTZ and OSD menu call |
2MP 3G-SDI test (1920x1080) 50/60 fps, 4X zoom, video recording and playback, coaxial PTZ and OSD menu call |
Fast ONVIF, auto login and image display, test report creation |
CVBS camera test and PTZ control |
IP camera test (non-ONVIF), HIK test tool for Hikvision cameras and DH test tool for Dahua cameras |
Video level meter, peak video signal level, SYNC signal level, color bar chroma level measurement |
24V DC /2A, 12V DC /3A power outputs (camera can be powered from tester) |
48V PoE with a maximum output power of 30W |
Fast, one-touch video to detect all network cameras and automatic display |
Built-in WiFi to display wireless camera image and create WIFI hotspots |
CVBS loop test to send and receive color bar generator signal to test BNC cable |
Enhanced color bar generator, PAL/NTSC multi-system color bar video generator |
Cable upgrading test, UTP cable test, telephone cable test etc. |
RJ45 cable TDR test which allows you to check the cable pair condition, length, attenuation, reflectivity, impedance, bias etc. |
Enhanced Digital Cable Tracing, searching BNC cable, network cable and telephone cable for cable clutter, with higher accuracy. |
TDR test: BNC cable, network cable, telephone cable, RVV cable, elevator cable and cat 5/6 cable length and short-circuit |
Professional WIFI analyzer, detect surrounding wifi signal and signal strength |
Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route |
TesterPlay: Tester, android version cell phone and PC display simultaneously |
Shortcut button, drop-down menu, you can select Poe power, IP setting, CVBS, LAN information, HDMI IN etc. |
Traffic monitoring, display network port or WIFI connection in real time upload and download speeds and other network parameters |
Auto-update software, can install applications with android version. |
Media player, playback of 4K video files and MKV/MP4 media files |
8GB SD card included |
Audio input |
LED lamp, calculator, music player and other tools |
7.6V /7800mAh battery, fast charging in 3.5 hours, working time 16 hours |
Working temperature: -10°C ~ +50°C |
Dimensions: 240 x 154 x 46 mm |
Included apps: EVOPLUS, HYUVMS, ASMS, HYU CONNECT, HYUPLUS |
