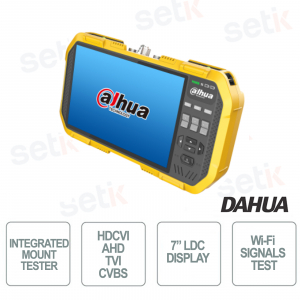

PFM907-E - Tester Dahua - di montaggio integrato, Supporta HDCVI/AHD/TVI/CVBS. Schermo touch screen TFT da 7 pollici, Display LCD con interfaccia RGB Risoluzione 1920 × 1200, Supporto fino a 6MP!. 13 tasti. Alimentazione PoE o 12 VCC, Controllo PTZ. Test audio. RS 485. 1 entrata e 1 uscita Audio, 1 usb 1 micro USB, 1 ingresso e 1 uscita HDMI. Due scomparti batteria, batteria al Litio sostituibile da 18,5 Wh. Compatto e portatile. Dahua Technology.
SCEGLI PROFESSIONISTA
https://www.setik.biz/it/accessori/10192-dahua-pfm907-e-tester-di-montaggio-integrato-4in1-7-pollici-dahua.html
1.090,64 €
2.536,38 € -57%
tasse incluse
PRODOTTO NON DISPONIBILE, SUBITO UNO SCONTO DEL 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
SPEDIZIONE GRATUITA
SU TUTTO IL CATALOGO!
1. Raggiungi almeno 149€ di spesa
2. Seleziona GLS
3. Conferma il codice NATALE-FREE
4. Concludi il tuo ordine.
La spedizione sarà gratuita!
Fino alle 10:00 del 27/12/2024
Codice NON cumulabile con altri attivi
TESTER DI MONTAGGIO INTEGRATO 4IN1 DAHUA - TEST AUDIO - SCHERMO LDC DA 7 POLLICI - SUPPORTO FINO A 6MP!
PFM907-E - Tester Dahua - di montaggio integrato, Supporta HDCVI/AHD/TVI/CVBS. Schermo touch screen TFT da 7 pollici, Display LCD con interfaccia RGB Risoluzione 1920 × 1200, Supporto fino a 6MP!. 13 tasti. Alimentazione PoE o 12 VCC, Controllo PTZ. Test audio. RS 485. 1 entrata e 1 uscita Audio, 1 usb 1 micro USB, 1 ingresso e 1 uscita HDMI. Due scomparti batteria, batteria al Litio sostituibile da 18,5 Wh. Compatto e portatile. Dahua Technology.
Dettagli prodotto
- Tester di montaggio integrato (HDCVI/AHD/TVI/CVBS)
- Schermo LDC da 7 pollici
- Supporto fino a 6MP!
- 13 tasti
- Test audio
- 1 entrata e 1 uscita Audio
- Supporto del controllo PTZ RS485
- Alimentazione 12 VDC 1A/POE 48 V–0.5 A per la telecamera
Scheda tecnica
| Model | PFM907-E | ||||
| System | |||||
| Operation System | Linux | ||||
| Language | 13 languages including Chinese and English | ||||
| Operation mode | Touchscreen | ||||
| Auto Standby/Power Off | Off/5–60min | ||||
| Keyboard Sound | On/Off | ||||
| Display Screen | 7-in 16.7M color TFT touch screen, RGB interface lcd display: 1920 ×1200, backlight brightness adjustable | ||||
| Button | Keypad: 13 keys Others: On–off button |
||||
| LED | 2 | ||||
| Wi-Fi | Frequency: 2.4G/5G Protocol: IEEE 802.11a/n/ac |
||||
| Update | Supports online and local update | ||||
| Structure&Environment | |||||
| Net Weight | 0.93kg (2.05 lb) | ||||
| Product Dimensions | 235.0 mm × 135.0 mm × 45.0 mm (9.25'' × 5.31'' × 1.77'') (L × W × H) | ||||
| Operating Temperature | –10 °C to +55 °C (14 °F to 131 °F ) | ||||
| Operating Humidity | 30%–90% (RH) | ||||
| IPC Test | |||||
| Camera Access | ONVIF and Dahua private protocol | ||||
| Resolution | 2 MP (only supports 1920 × 1080@25 fps, 1920 × 1080@30 fps); 4 MP; 6 MP; 4K | ||||
| Initialization | Yes | ||||
| Image | Live view, snapshot and recording, zoom, and H.264/H.265 decoding | ||||
| Function Control | Modify the IPC resolution, IP address and account password. Control IPC to restore factory defaults | ||||
| Analog Video Test | |||||
| Video Format | HDCVI; HDTVI; AHD; CVBS (NTSC, PAL) | ||||
| Resolution | HDCVI: 720p@25/30/50/60 fps, 1080p@25/30 fps, 2560 ×1440@25/30 fps, 2880 × 1620@25/30 fps HDTVI: 720p@25/30/50/60 fps, 1080p@25/30fps, 2048×1536@18 fps, 2560 × 1440@25/30 fps AHD: 720p@25/30 fps, 1080p@25/30fps, 2048 × 1536@ 18/25/30 fps, 2560 × 1440@25/30 fps CVBS: 720 × 576@25 fps, 720 × 480@30 fps |
||||
| Function Control | OSD menu; PTZ control | ||||
| Image | Disable/ 5~60 minutes | ||||
| Live view, snapshot and recording, zoom | PAL; NTSC viedo test signal HDCVI; HDTVI; AHD viedo test signal (720p/1080p) |
||||
| UTC | |||||
| UTC | Switches from CVBS mode to CVI/TVI/AHD mode; Switches from one HD format (up to 1080p) to another HD format |
||||
| Power | |||||
| DC Voltage | Limit: 2/20/200/600 V Reading range: ±19999 Min. Resolution: 0.1 mV Accuracy: ±0.1%+8 |
||||
| AC Voltage | Limit: 20/200/600 V Reading range: ±1999 Min. Resolution: 1 V Accuracy: ±1.2%+3 |
||||
| DC Current | Limit: 20/200/2000 mA Reading range: ±19999 Min. Resolution: 1 uA Accuracy: ±0.1%+8* |
||||
| AC Current | Limit: 20/200/2000 mA Reading range: ±1999 Min. Resolution: 1 uA Accuracy: ±1.2%+3 |
||||
| Resistance Test | Limit: 2 kΩ/20 kΩ/200 kΩ/2 mΩ/20 mΩ Reading range: 0–19999 Min. Resolution: 0.1 Ω Accuracy: ±0.1%+8 |
||||
| Capacitance Test | Limit: 2 nF/20 nF/200 nF/2 uF/20 uF/200 uF/2 mF/20 mF Reading range: 0–1999 Min. Resolution: 1 pF Accuracy: ±4%+5 |
||||
| Diode Voltage Drop | Limit: 2 V Reading range: 0–19999 Min. Resolution: 0.1 mV Accuracy: ±0.1%+20 |
||||
| Continuity Test | Limit: 2 kΩ Reading range: 0–19999 Min. Resolution: 0.1 Ω Accuracy: ±0.1%+20 |
||||
| Others | |||||
| RS-485 Control | Communication protocol: More than 30 protocols including Pelco–D/P, Samsung, Panasonic, Lilin, and Yaan Baud Rate: 150 bps, 300 bps, 600 bps, 1200 bps, 2400 bps, 4800 bps, 9600bps, 19200 bps |
||||
| Wireless | Spectrum Test; Wi-Fi Test; Signal Monitoring | ||||
| Cable Test | Network Cable Test: Test network cable pair length, attenuation and delay deviation. Test two or more network cables. The connection sequence and network cable number will be displayed on the screen. |
||||
| HDMI Test | 1-ch HDMI video input (720p and 1080p); 1-ch HDMI video output (1920 ×1080p) |
||||
| Audio Test | 1 × audio input, and 1 audio output | ||||
| Power Supply for Camera | 12 VDC 2A | ||||
| Network Test | Features IP address scanning and PING test. | ||||
| Protocol Code Acquisition | Built–in serial port tool, can receive and display RS485 protocol code data sent by control device, and can also send hexadecimal codes. |
||||
| Optical Power Meter | Detector Type: InGaAs Calibrated Wavelength: 1625/1550/1480/1310n/1300/850 nm Power Test Range: –70 dBm to +10 dBm Measurement Accuracy: <±3% dB (–10 dBm, +22 °C/+71.6 °F); <±5% dB (FS, +22 °C/+71.6 °F) Resolution: Linear: 0.1%, logarithmic : 0.01 dBm Connector: FC/PC |
||||
| Port | |||||
| Power | 1 × charge port, 12 VDC 1 × power output port, 12VDC 2A |
||||
| Audio Port | 1 × audio input port, 1 × audio output port | ||||
| USB | 1 × USB, 1 × Micro-USB | ||||
| Network Port | 2 × RJ45 10M/100M/1G network port | ||||
| SD Card | NA | ||||
| HDMI | 1 × HDMI input port 1 × HDMI output port |
||||
| RS-232 | NA | ||||
| RS-485 | 1 | ||||
| VLS | NA | ||||
| OPM | 1 | ||||
| Multimeter | 4 | ||||
| Power Supply | |||||
| Power Supply | 12 VDC 1A/POE 48 V–0.5 A | ||||
| Battery | Two battery compartments. Each battery compartment can hold a dedicated lithium battery pack with a capacity of 18.5Wh. The combined working time is about 10 hours. (can operate on a single battery). |
||||
| Certifications | |||||
| Certifications | CE: EN 55032: 2015, EN 55032: 2017, EN 61000–3–2: 2014, EN 61000–3–3: 2013, EN 61010-1: 2010, EN 62321–1: 2013 | FCC: FCC Part 15 Subpart B: 2016 | |||
