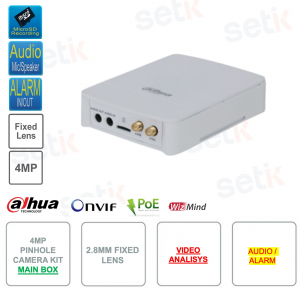

Main Box per Pinhole Network Camera Kit - IP POE ONVIF® - 4MP - Ottica 2.8mm - Video Analisi

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

2592 (H) × 1944 (V)

ROM

128 MB

RAM

1 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F2.0 (Color,30 IRE)

0.0005 lux@F2.0 (B/W,30 IRE)

S/N Ratio

> 56 dB

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm

Max. Aperture

F2.0

Iris Control

Fixed

Close Focus Distance

0.5 m

Intelligence

IVS (Perimeter Protection)

Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection.

Object Monitoring

Abandoned object, missing object

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+
Smart H.264+

Video Frame Rate

Main stream: 2592 × 1944 @(1–20 fps ), 2688 × 1520 @(1–25/30 fps )

sub stream: 704 × 576 @(1–25 fps)/704 × 480 @ (1–30 fps)

Stream Capability

2 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

Scene Self-adaptation

Yes

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Manual; auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Defog

Yes

Image Rotation

0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, tripwire, intrusion, fast moving, missing object, abandoned object, parking detection, loitering detection, people gathering; scene changing, audio detection, voltage detection, external alarm, face detection , and security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability

ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genete

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser

IE: IE8, IE9, and IE11
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

FCC:47 CFR FCC Part 15, Subpart B

Port

Audio Input

1 channel (3.5 mm JACK port)

Audio Output

1 channel (3.5 mm JACK port)

Alarm Input

2 channels in: 5 mA 3-5 VDC

Alarm Output

2 channels out: 1,000 mA 30 VDC/500 mA 50 VDC

Power

Power Supply

12 VDC/PoE(802.3af)

Power Consumption

Basic: 3.2W (12 VDC); 5.1W (PoE)
Max. (Max. Resolution+ Intelligence): 4.7 W (12 VDC); 7.2 W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Operating Humidity

≤ 95%

Storage Temperature

–40 °C to +60 °C (–40 °F to 140 °F)

Protection

IP66 (L3)

Structure

Casing

Metal

Product Dimensions

110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94")

Net Weight

210 g (0.5 lb)

Gross Weight

376 g (0.8 lb)

La camera Pinhole presenta una risoluzione di 4Megapixel in tempo reale!

Sensore CMOS 1/2.7" da 4MP a scansione progressiva.

Risoluzioni Supportate:

• 4M (2688 × 1520);
• 3.6M (2056 × 1440);
• 3M (2304 × 1296);
• 1080p (1920 × 1080);
• 1.3M (1280 × 960);
• 720p (1280 × 720);
• D1 (704 × 576/704 × 480);
• VGA (640 × 480);
• CIF (352 × 288/352 × 240)

Smart H.265+

Smart H.265+ è l'implementazione ottimizzata del codec H.265 che utilizza una strategia di codifica adattiva alla scena, GOP dinamico, ROI dinamico, struttura di riferimento multi-frame flessibile e riduzione del rumore intelligente utile per fornire video di alta qualità senza affaticare la rete.

Smart H.265+ riduce di molto il bit rate e i requisiti di archiviazione rispetto alla compressione H.265 standard

FUNZIONI INTELLIGENTI

Questa telecamera prevede funzioni intelligenti:

- IVS protezione perimetro
- Face detection
- Smart seach
- Oggetti abbandonati e persi

BLC (Back Light Compensation): è uno dei 3 passaggi possibili nella gestione delle immagini con contrasto, situazioni tipiche sono: entrate o uscite da parcheggi, targhe, luci particolari, ingressi con riprese dall'interno verso l'esterno, ecc. La compensazione della luce è una delle operazioni più complesse possibili, la funzione BLC permette un discreto adattamento a queste situazioni

Livello di protezione IP67 ( Polveri / Immersioni )

Soluzione ideale per uso in esterni.
