-58%

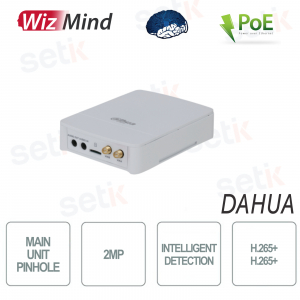

Dahua - 2MP Covert Pinhole Wizmind Network Camera-Main Box - Unità principale Pinhole con sensore CMOS da 1/2,8 pollici - PoE - H.265+ - ROI - WDR - 3D DNR - HLC - Funzioni intelligenti: intrusione, oggetti abbandonati, riconoscimento volti - 2x ingresso, 2x uscita Allarme - 1x entrata, 1x uscita Audio
SCEGLI PROFESSIONISTA
PRODOTTO NON DISPONIBILE, SUBITO UNO SCONTO DEL 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA - UNITA' CENTRALE PINHOLE - SENSORE 1/2.8" - 1080P - PoE - FUNZIONI INTELLIGENTI
Dahua - 2MP Covert Pinhole Wizmind Network Camera-Main Box - Unità principale Pinhole con sensore CMOS da 1/2,8 pollici
PoE - H.265+ - ROI - WDR - 3D DNR - HLC
Funzioni intelligenti: intrusione, oggetti abbandonati, riconoscimento volti
2x ingresso, 2x uscita Allarme - 1x entrata, 1x uscita Audio
Dettagli prodotto
Scheda tecnica
| Model | |
| IPC-HUM8241-E2 | |
| Camera | |
| Image Sensor | 1/2.8" 2 Megapixel progressive CMOS |
| Max Resolution | 1920 (H) × 1080 (V) |
| ROM | 128MB |
| RAM | 1GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Electronic Shutter Speed |
| Min. Illumination | 0.005 Lux@F2.0 (Color,30 IRE) 0.0005 Lux@F2.0 (B/W,30 IRE) |
| S/N Ratio | >56 dB |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | 2.8 mm: F2.0 |
| Field of View | L1/L4: Horizontal: 105°; Vertical: 58°; Diagonal: 118° L3: Horizontal: 114°; Vertical: 60°; Diagonal: 136° L5: Horizontal: 109°; Vertical: 58°; Diagonal: 127° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.5 m |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attribute extraction including 6 attributes (gender, age, glasses, expressions, mask and beard) and 8 expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear); face snapshot set as face or one-inch photo; 3 snapshot strategies (real-time snapshot, optimization snapshot, and quality priority); face angle filter; optimization time setting |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ Smart H.264+ |
| Video Frame Rate | Main stream: 1920 × 1080 @25/30 fps Sub stream: 704 × 576 @25 fps; 704 × 480 @30 fps |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Manual; auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 1080p resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8, IE9, and IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | IOS; Android |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Certification | |
| Certifications | CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B |
| Audio Input | 1 channel (3.5 mm JACK port) |
| Audio Output | 1 channel (3.5 mm JACK port) |
| Alarm Input | 2 channels in: 5 mA 3V–5V DC |
| Alarm Output | 2 channels out: 1,000 mA 30V DC/500 mA 50V DC |
| Power | |
| Power Supply | 12V DC/PoE(802.3af) |
| Power Consumption | Basic: 2.8W (12V DC); 3.5W (PoE) Max. (Intelligence + WDR): 4.5W (12V DC); 5.5W (PoE) |
| Enviroment | |
| Operating Temperature | –40°C to +60°C (–40°F to 140°F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40°C to +60°C (–40°F to 140°F) |
| Protection | IP66 (L3) |
| Structure | |
| Casing | Metal |
| Product Dimensions | E1: 110 mm × 83 mm × 24 mm (4.33" × 3.27" × 0.94") L1: ?30.5 mm × 48.7 mm (?1.20" × 1.92") L3: ?30.5 mm × 57.6 mm (?1.20" × 2.27") L4: 35 mm × 35 mm × 26.7 mm (1.38" × 1.38" × 1.05") L5: 35 mm × 35 mm × 28.4 mm (1.38" × 1.38" × 1.12") |
| Net Weight | 210 g (0.5 lb) |
| Gross Weight | 376 g (0.8 lb) |
Ulteriori dettagli
Download
Depliant in inglese.
Tutti i nostri prodotti sono conformi alla normativa CE vigente (leggi qui). Per richiedere la copia del certificato
compila questo modulo
