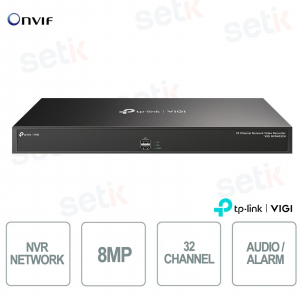

NVR Network TP Link 32 Channel VIGI NVR4032H HDMI 8MP H.265+ 4 x SATA

NVR Network TP Link 32 Channel VIGI NVR4032H HDMI 8MP H.265+ 4 x SATA
ANUNCIOS -45%

VIGI NVR4032H TP-Link VIGI NVR IP network 32 channels (16 channels 2MP / 8 channels 4MP / 4 channels 8MP / 16 channels Synchronous Playback), 320Mbps input and output bandwidth. H265+ compression, maximum resolution 8MP - 2x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 16 in alarm 4 out alarm, 1x RS232, 1x HDMI, 1x VGA - supports 4 SATA HDD up to 10TB - Motion detection, abandoned object detection, vehicle and person detection. Dimensions: 440 × 330 × 44 mm


3 Years Warranty




referencia : VIGI NVR4032H

brand : VIGI

EAN: 4895252500752

Manufacturer Object ( [id] => 52 [name] => VIGI [description] =>

La historia de VIGI se remonta a la creciente demanda de soluciones de seguridad de video de alta calidad. Con el aumento de la conciencia sobre la seguridad, las personas buscaban soluciones confiables para monitorear y proteger sus espacios. TP-Link respondió a esta necesidad mediante la introducción de la marca VIGI.
Los productos VIGI incluyen varios tipos de cámaras de vigilancia, como cámaras bullet, cámaras domo, cámaras PTZ y más. Estas cámaras vienen con características avanzadas como resolución de video de alta definición, visión nocturna, detección de movimiento, notificaciones push y mucho más. Además, muchas cámaras VIGI ofrecen la opción de almacenar videos en tarjetas microSD o utilizar servicios de almacenamiento en la nube.
TP-Link se ha ganado una reputación de confiabilidad y calidad en la industria de redes, y la marca VIGI ha continuado esta tradición en el sector de seguridad de video. Con un compromiso constante con la innovación y la calidad, TP-Link continúa expandiendo la línea de productos VIGI para satisfacer las crecientes necesidades de seguridad del mercado.

[short_description] =>


La marca VIGI fue lanzada por TP-Link como una línea de productos de vigilancia de video avanzados, enfocados en la seguridad doméstica y comercial. Esta línea de productos fue diseñada para ofrecer soluciones de vigilancia de video confiables, de alto rendimiento y fáciles de usar para ayudar a las personas a proteger sus hogares, negocios y propiedades.

[id_address] => [date_add] => 2024-06-11 17:20:54 [date_upd] => 2025-02-18 16:36:33 [link_rewrite] => vigi [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


SSD1TB PRECIO DE CHOQUE!×


 SSD1TB SHOCK PRICE!
Same price as the NON-SSD version!
Only 100 pieces!
  Buy now >>

ESPECIAL VIGI×


  TRY VIGI!
FREE SHIPPING + 10% EXTRA
 Discover now >>

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>


VIGI NVR4032H NVR NETWORK TP LINK VIGI 32 CHANNELS HDMI 8MP |

Made VIGI

TP-Link VIGI 8MP IP 32-channel network NVR - VIGI NVR4032H
Max Resolution 8MP - 32 channels (16 channels 2MP / 8 channels 4MP / 4 channels 8MP / 16 channels Synchronous Playback) - H.265+ Compression - Support 4HDD up to 10TB - 320Mbps in/out - 1 Audio in/out - 16 in & 4 alarm out
2x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 16 in alarm 4 out alarm, 1x RS232, 1x HDMI, 1x VGA
Motion Detection - Abandoned Object Detection - Vehicle and Person Detection
Remote Monitoring - 3 Years Warranty

PRODUCT DETAILS

NVR4032H


|| Technical Specifications:

  • Video Resolution: H.265+/H.265/H.264+/H.264
  • 32 Channel HDMI 16 Channel 2MP / 8 Channel 4MP / 4 Channel 8MP / 16 Channel Synchronous Playback
  • 320 Mbps incoming bandwidth and 320 Mbps outgoing bandwidth
  • Maximum resolution 8MP
  • Ports: 2x USB 2.0, 1x USB 3.0, 1 CH RCA audio in/out, 16 in alarm 4 out alarm, 1x RS232, 1x HDMI, 1x VGA
  • Supports 4HDD up to 10TB
  • Motion Detection - Abandoned Object Detection - Vehicle and Person Detection
  • Remote monitoring
  • 3 years warranty

TECHNICAL DATA SHEET

VIDEO AND AUDIO
IP Video Input 32-Channel
Incoming Bandwidth 320Mbps
Outgoing Bandwidth 320Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Video Output Mode HDMI/VGA Independent Output
Multi-View Display 1,4,6,8,9,16,25,32,36
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-Channel
Capability 4-ch@8MP (25fps), 6-ch@5MP (25fps), 8-ch@4MP (25fps), 10-ch@3MP (25fps), 16-ch@1080P (25fps)
RECORD MANAGEMENT
Record Mode
  • Manual Recording
  • Scheduling Recording
  • Motion Detection Recording
Playback Mode
  • Instant Playback
  • Regular Playback
  • Tag Playback
  • Event Playback
Backup Mode
  • Regular Backup
  • Video Clip Backup
Playback Function
  • Play
  • Breaks
  • Stop
  • Fast Forward
  • Fast Backward
  • Play By Frame
  • Full Screen
  • Video Clip
  • Export Clip
  • Digital Zoom
  • Lock Recording
  • Sound On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF Profile S, CGI
EXTERNAL INTERFACE
Network Interface 2, RJ-45 10/100/1000Mbps Self-Adaptive Ethernet Interface
USB Interface 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out 16/4
Serial Interface 1, RS232
Power 1× AC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 4 SATA Interfaces
Capacity Up to 16 TB Capacity for Each HDD*
ALARM
General Alarm
  • Motion Detection
  • Video Tampering
  • Scene Change Detection
  • Line Crossing Detection
  • Intrusion Detection
  • Region Entering Detection
  • Region Exit Detection
  • Loitering Detection
  • Object Abandoned/Removal Detection
  • Vehicle Detection
  • Human Detection
Note: The alarm function requires the use of a camera.
Anomaly Alarm
  • Video Loss
  • Offline and IP Conflict
  • DiskException
  • LoginException
  • Fan Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage
  • Recording
  • White Light Alarm
  • Buzzer
  • Log
  • Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90%RH Non-Condensing
Package Contents
  • VIGI Network Video Recorder
  • Mouse
  • Installation Guide
  • Power Cord
  • HDD Power Cables
  • HDD Data Cables
  • Terminal Blocks
  • Mounting Brackets
  • Screws
  • Rubber Feet
Working Temperature NVR: -10–55 °C
Power adapter: 0–40 °C
Working Humidity 10%~90%RH Non-Condensing
Dimensions (L x W x H) 440 × 330 × 44 mm
External power supply 100-240VAC, 50-60HZ, 1.5A
Net Weight 4.0 Kg
Gross Weight 5.0 Kg
Power Supply 100-240VAC, 50-60Hz, 1.5A
Power Consumption 5W (Without Disk)
48W (With Disk)
Certifications CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF




This product complies with Onvif standard


All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems.

This camera is ONVIF® compatible

Feature-rich ports for SMB surveillance


Feature-rich ports for SMB surveillance

Dual Ethernet Port Design


Dual Ethernet Port Design

One-click system initialization

VIGI NVRs allow you to quickly add cameras, initialize HDDs and schedule storage with just one click, reducing installation costs.

One-click system initialization
