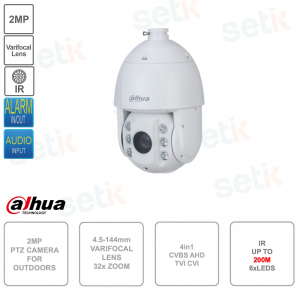

4in1 2MP Outdoor PTZ Camera - 4.5-144mm Lens 32x Zoom - IR 200m

4in1 2MP Outdoor PTZ Camera - 4.5-144mm Lens 32x Zoom - IR 200m
-57%

4in1 PTZ Camera - 2MP - SD6C3232DB-HC - 2MP Full HD resolution, motorized varifocal lens with 32x optical zoom (4.5-144mm), 1/2.8" 2MP CMOS sensor Starlight technology, IR up to 200m - WDR 120dB, HLC, BLC, AGC, 3DNR, Electronic Defog - RS-485 interface, Audio, Alarm, IP66 protection - Ideal for outdoor systems.



referencia : SD6C3232DB-HC

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DAHUA: DEBAJO DEL COSTE×


 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PTZ STARLIGHT - 2MP- 4in1 - ZOOM 32x 4.5-144MM - AUDIO - ALARM - IR 200M - DAHUA - SD6C3232DB-HC

Made by Setik

4in1 PTZ Starlight 2MP Dahua camera - SD6C3232DB-HC
4 technologies in 1: TVI/CVBS/AHD/CVI - 2MP Full HD resolution - 4.5-144mm lens ( 32x zoom) - 1/2.8" 2MP CMOS sensor with Starlight technology - IR illuminator up to 200m with 6 LEDs - WDR 120dB - AGC - 3DNR - BLC - HLC - AWB - Audio 1in - Alarm 2in/1out - Analog CVBS output - IP66 and TVS6000 - 24 month manufacturer's warranty - IP66 protection, ideal for outdoor use.

Product details

  • ONVIF® Outdoor AI IP Camera - SD6C3232DB-HC
  • 2MP Full HD 1920x1080p Progressive Scan resolution
  • 4.8-154mm motorized varifocal lens (32x optical zoom)
  • 1/2.8" CMOS sensor with Starlight Technology
  • Starlight Technology: Color Night Vision!
  • Day/Night(ICR), AWB, AGC, BLC, HLC 2D / 3D-NR, Electronic Defog, WDR (120db) , 16x digital zoom
  • Quality illuminator up to 200m, with 6 LEDs
  • 2 inputs and 1 alarm output
  • 1 audio input
  • 1 RS485 port
  • IP66 protection for outdoor
  • TVS 6000v lightning protection
  • Dimension: 325.3mm × Φ202.0mm
  • Weight: 4.6 kg
  • Operating temperature: –40 °C to +70 °C
  • Bracket and power supply included
  • 24 month manufacturer's warranty

Technical data sheet

SD6C3232DB-HC

Room

Image Sensor

1/2.8" CMOS

Pixel

2 MP

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

256 MB

Electronic Shutter Speed

1/3 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator)

Illumination Distance

200 m (656.17 ft) (IR)

Illuminator On/Off Control

Zoom Prio; manual

Illuminator Number

6 (IR)

Lens

Focal Length

4.5mm–144mm

Max. Openings

F1.6–F4.0

Field of View

H: 59.6°–2.8°; V: 34.1°–1.6°; D: 67.9°–3.3°

Optical Zoom

32x

Protection

TVS 6000V lightning proof; IP66; surge protection; voltage transient protection

Structure

Product Dimensions

325.3 mm × Φ202.0 mm (12.81" × Φ7.95")

Net Weight

4.6 kg (10.14 lb)

Gross Weight

6.5 kg (14.33 lb)

Further details

This camera has a resolution of 4Mpx 2560x1440 This camera features a resolution of 2MP

1/2.8" CMOS sensor with STARLIGHT technology.
Low brightness, color vision even in night mode

With this CMOS sensor, it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision changes to black/white.

With the SENSOR present, night shots will be clear and in color

Esempio di visione notturna in presenza di sensore con tecnologia starlight

32X optical zoom 32x Optical Zoom (4.5mm~144mm) + 16x Digital Zoom
IR LED Illuminator

IR LED illuminator with maximum range up to 200m Meters!

It has 6 LED lights.

Infrared Illuminator Generic PTZ Functions:
Pan/Tilt Range: Pan: 0° to 360° endless; Tilt: –20° to +90°, auto flip 180°
Manual Control Speed: Pan: 0.1°–240°/s; Tilt: 0.1°–120°/s???????
Preset Speed: Pan: 0.1°–240°/s; Tilt: 0.1°–120°/s
Presets: 300
PTZ Mode: 5 Patterns, 8 Tours (up to 32 presets per tour)
Speed Setup: Human-oriented focal length/ speed adaptation
Power off memory: Yes
Idle Motion: Preset; Patterns; Tours; Scan
Full HD It is extremely useful to have Inputs/Outputs in a CCTV system to be able to control relays or activate recording following an event.
This Camera has 2 Inputs and 1 Output
Ingresso Audio This camera has 1 audio input
Dual Encoding RS 485 for PTZ Controls (Remotely controllable cameras)
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

ULTRA 2D / 3D-DNR
3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light.
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
DEFOG Function Icon This function allows you to clearly see images taken in particular weather conditions: rain, smoke and fog.
DEFOG function example image
DEFOG function example image
Messa a fuoco automatica

This camera has auto or manual focus

Dual Encoding This product is covered by a 24 month manufacturer's warranty.

Download

Download the English Brochure
