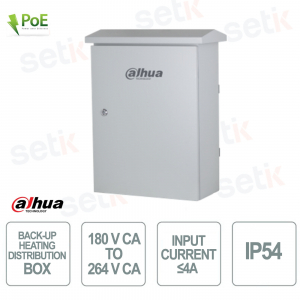

BACK-UP HEATING DISTRIBUTION BOX - VOLTAGE 180–264V AC - IP54 - DAHUA
Wide input voltage range from 180VAC to 264VAC, input current ≤4A . 57V battery charger and a 53V PoE switch power supply that can be connected. Built-in IP54 lightning surge protection that protects against lightning, Only supports 7Ah and 9Ah storage batteries and requires 4 of them to be installed. Built-in thermal insulation chamber and heating module that allows the device to be used in temperatures as low as -35°C.
Product details
- Spare Heating Distribution Box - Dahua
- Input voltage 180V AC to 264V AC
- Input current ≤4A
- Output voltage: PoE: 53VDC ± 0.5VDC, Battery: 57VDC ± 0.5VDC
- Material: SPCC, thickness: 1.2mm (0.05")
- Color: RAL7035 , light grey
- Dimensions: 500mm × 240mm × 640mm
- Weight: 24 kg
- Product excluded from warranty
Technical data sheet
| Model | PFC112FB |
| Function | |
| Input Voltage | 180–264 VAC |
| Input Current | 4 A |
| Output Voltage | PoE: 53VDC ± 0.5VDC Battery: 57VDC ± 0.5VDC |
| Output Current | PoE: max 5A; Battery: max 1.5A |
| Input Frequency | 47 Hz–63 Hz |
| Surge Protector | 385 Vac/10 kA × 2 pcs |
| Air Circuit Breaker (ACB) | 230 Vac/32 A × 1 pcs |
| DIN-Rail | 35mm |
| Material | SPCC, the thickness is 1.2 mm |
| Heating & Heat Dissipation | Heating power: 200W |
| Fiber Optic Splice Tray | Yes |
| Environment | |
| Operating Temperature | –35 °C to +50 °C (–31 °F to +122°F) |
| Operating Humidity | 0–95% (RH) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Storage Humidity | 0–95% (RH) |
| Structure | |
| Appearance Color | RAL7035, light gray |
| Product Dimensions | 500 mm × 240 mm × 640 mm (19.69" × 9.45“ × 25.20") |
| Transport Package Dimensions | 540 mm × 280 mm × 680 mm (21.26" × 11.02" × 26.77") |
| Installation | Hose Clamp |
| Pole Diameter | The diameter of the pole that the hose clamp will be installed on: Φ130 mm–Φ240 mm. |
| Cable Hole | 3 |
| Net Weight | 23.5 kg (51.81 lb) |
| Gross Weight | 26.5 kg (58.42 lb) |
| Accessories | M10 × 140 stainless steel outer hexagon bolts × 4 M10 stainless steel outer hexagon nuts × 8 M10 stainless steel spring washers ×4 M10 stainless steel flat washers × 8 Hose clamps × 2 M25 cable gland × 3 User manual × 1 Legal and regulatory information × 1 |
| Certifications | |
| Certification | THERE IS |
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
