PFM340-5CH - 5-Channel Distribution Power Box 4A Output, 5-Output Voltage 12VDC (-3%~+7%), AC90~264V Input, 5 Spare Fuses, Max. per Output 2.5A. No-load Power Consumption <0.5W, With Overload Protection, Overcurrent Protection, Overvoltage Protection, Anti-static and Anti-interference Capability. Dahua
BUSQUE INSTALADOR
https://www.setik.biz/es/suministro-de-energia/11042-dahua-pfm340-5ch-5-channel-distribution-power-box-dc12v4a-dahua.html
38,82 €
90,28 € -57%
impuestos incluidos
PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
5 CHANNEL DISTRIBUTION POWER BOX - 4A OUTPUT - DAHUA

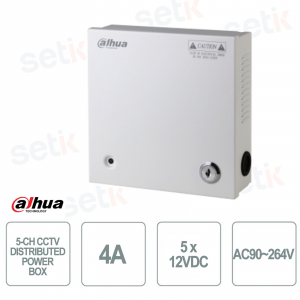

5-Channel Distribution Power Box - Dahua
Output 4A, 5 output voltage 12VDC (-3%~+7%), Input AC90~264V, 5 spare fuses, max. per output 2.5A. No-load power consumption <0.5W, With overload protection, overcurrent protection, overvoltage protection, anti-static and anti-interference ability.
Quality product
Output 4A, 5 output voltage 12VDC (-3%~+7%), Input AC90~264V, 5 spare fuses, max. per output 2.5A. No-load power consumption <0.5W, With overload protection, overcurrent protection, overvoltage protection, anti-static and anti-interference ability.
Quality product
Product details
- 5-Channel Distribution Power Box - Dahua
- 4A output
- Voltage 5 outputs 12VDC (-3%~+7%)
- Efficiency: 84%
- Input voltage range: AC90~264V
- Output current 2.5A with 5 fuses
- Product excluded from warranty
Technical data sheet
| Model | PFM340-5CH |
| Electrical Specification | |
| Input Voltage Range | AC90~264V |
| Outputs | 5 x 12VDC (-3%~+7%) outputs |
| Max. output | 4 A |
| Output Protection | 5 replacement fuses, max. for 2.5A output |
| Efficiency | 84% |
| no load power consumption | <0.5W |
| Internal ON/OFF Power Switch | Yes |
| Individual LED Output Indicator | Yes |
| Protection/Environmental | |
| Surge Protected | Line to ground: 4000V Line to line: 2000V |
| ESD | Contact discharge: 6000V Air discharge: 8000V |
| Working temperature | -20℃~+45℃(-4℉~+113℉) |
| Working humidity | <90%RH |
| Physical Properties | |
| Weight | 0.85kg(1.87lb) |
| Dimensions(LxWxH) | 165mmx165mmx50mm(6.5”x6.5”x1.97”) |
| Installation | Wall mount |
| Color | White |
| Safety Standards | |
| Certification | CE(EN55032, EN55020) FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6) |
Further details
 |
Components which by their nature or due to normal wear and tear or decay, require periodic maintenance or replacement (e.g. power supplies, cables, connectors, structural components or anything that is subject to mechanical and electrical stress) are specifically excluded from the Warranty. |
