The 360-degree volumetric IR detection with flush-mounted installation ensures complete and reliable coverage in indoor environments. Designed for a variable fixing height between 2.5 and 4.5 meters , this detector offers a range of 6 meters with optimal performance even when fixed high, up to 4.5 meters . The compact dimensions without mounting box are 52 x 42.5 mm . Dimensions 86x86x42.5 mm - AP-360B
BUSQUE INSTALADOR

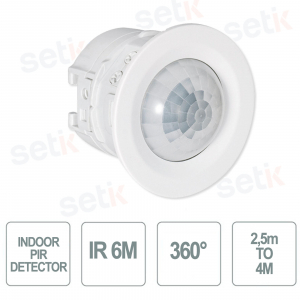

INDOOR PIR DETECTOR - IR 6M - 360° - OPTEX
Product details
- PIR Detector
- From inside
- To branch
- Fixing height from 2.5 to 4.5 m
- IR detector coverage 6m
- Dimensions 86 x 86 x 42.5 mm
Technical data sheet
|
Model |
AP-360B | |
| Detection method | Passive infrared | |
| Detection area | ø6 m (ø20') at mounting height 4.5 m (14'9”) | |
| Mounting height | 2.5 to 4.5 m (8'2” to 14'9”) | |
| Mounting type | Recessed ceiling mount/86-type box mount | |
| Sensitivity | 2.0℃ at 0.6 m/s (3.6°F at 2'/s) | |
| Detection speed | 0.3 to 3.0 m/s (1'/s to 9'10”/s) | |
| LED indicator | Warm-up upon power on: blinking Stand-by: off Alarm: solid on | |
| Alarm cycle | 2 s to 120 s (variable) | |
|
Illuminance |
20 to 320 lux (variable/not detected) | |
| Battery saving timer | - | |
| Alarm output | NO/NC, 28V DC 200mA max | |
| Tamper switch | NC 28V DC 100mA max The contact opens once the casing is detached. |
|
| Warm up time | Approx. 60 s | |
| Power supply | 9.5 to 16V DC | |
| Current | 12V DC Standby: 11mA, Max.: 13mA |
|
| PIR sensitivity | H/M/L | |
| Weight | 50g (1.76oz) | |
| Operation temperature | -20 to +50℃ (-4°F to +122°F) | |
| Operation humidity | < 95% | |
| Location | Indoors | |
| Dimensions | ø52 x 42.5 mm (ø2.05 in. x 1.67 in.): without switch box mount 86 x 86 x 42.5 mm (3.39 x 3.39 x 1.67 in.): with 86-type box mount |
