The outdoor dual PIR detector with anti-masking and anti-creep zone is the ideal solution for protecting large outdoor areas. Designed to ensure high performance, it integrates an advanced system of temperature and ambient light measurement, which allows automatic correction of sensitivity based on surrounding conditions. Equipped with a 3-axis accelerometer, it detects tampering and rotation attempts, ensuring a higher level of security. The passive infrared detection technology covers a main area of up to 50x30 meters and offers anti-creep coverage of 3x5 meters at a height of 2.3 meters or 6x9 meters at a height of 4 meters, with adjustable detection angle. With 100 detection zones in the main area and 36 dedicated to anti-creep, the device ensures precise and reliable monitoring. Installable at a height between 2.3 and 4 meters , it is powered by PoE - SIP-5030-IP-BOX
991,37 €
1.457,90 € -32%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

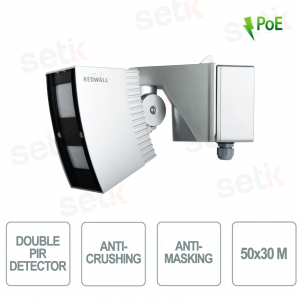

OUTDOOR DUAL PIR DETECTOR WITH ANTI-CRAWLING AND ANTI-MASKING ZONE - 50x30 M - POE - OPTEX
Product details
- Outdoor Dual PIR Detector
- Anti-creep
- Anti-masking
- To branch
- PoE Power Supply
- Detection coverage 50x30 m
- Mounting for height 2.3 - 4 m
- Dimensions 331x102x290 mm
- Weight: 2.1 Kg
Technical data sheet
Model |
SIP-5030-IP-BOX |
Detection method | passive infrared |
Coverage (main area) | 50 x 30 m (165 x 100 ft.) |
Coverage (creep zone) | 3x 5m (10 x 16ft.) installed at 2.3m (7.6ft.) height, 6 x 9m (20 x 30ft.) installed at 4m (13ft.) height Detection angle adjustable horizontally |
Power supply | PoE * (IEEE802.3af/at compliant) |
Current draw | 40mA max. |
Mounting height | 2.3 to 4m (7.6 to 13ft) |
Sensitivity selector | Far: SH/H/M/L Near: SH/H/M/L |
Detection logic selector | And/Or |
Alarm output (main area) | REDWALL event code (UDP/TCP) |
Alarm output (creep zone) | Redwall event code (UDP/TCP) |
Alarm interval period | Off/15, 30, 60 sec. |
Alarm period | approx. 2 sec. |
Warm-up period | approx. 60 sec. |
Operating temperature | -25 to 60°C, -40 to +60°C with optional heating unit (-13 to + 140°F, -40 to 140°F with optional heating unit) If the heater is used, it should be external 22-26V AC (not POE) |
IP rating | Main unit: IP66 Frame: IP55 |
Dimensions | 331 x 102 x 290 mm (13x 40x 11.4 in.) |
Weight | 2.1 kg |
Supported protocols | IPv4, ARP, UDP, TCP, ICMP, HTTP |
Function setting | Use web browser |
Download
