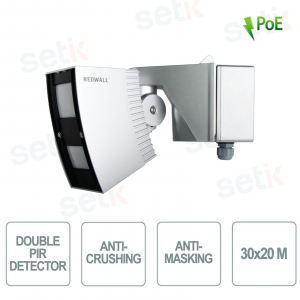

Outdoor 30x20m POE Dual PIR Detector with Creep-Off and Anti-Mask Zone - Optex

-32% nuevo

Outdoor dual infrared detector with anti-masking function provides a detection coverage of 30 x 20 meters , offering 74 detection zones. It features an intelligent sensor that adapts sensitivity based on ambient light and temperature, supported by an advanced detection algorithm for optimal performance. Anti-vandalism functions protect the device from tampering, while the logical detection and range selector ensures customized configuration. The alarm range is adjustable and the installation is compatible with heights between 2.3 and 4 meters , making it a versatile solution for outdoor security. PoE Power - SIP-3020-IP-BOX

referencia : SIP-3020-IP-BOX

brand : Optex

BUSQUE INSTALADOR

https://www.setik.biz/es/sensores-y-detectores/11239-optex-sip-3020-ip-box-outdoor-30x20m-poe-dual-pir-detector-with-creep-off-and-anti-mask-zone-optex.html

603,12 €

886,94 € -32%

impuestos incluidos

ERES PROFESIONAL DEL SECTOR?
REGÍSTRESE PARA ACCEDER A SU LISTA

cantidad

Disponible en 5 dàas

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Download

OUTDOOR DUAL PIR DETECTOR WITH ANTI-CRAWLING AND ANTI-MASKING ZONE - 30x20 M - POE - OPTEX

Product details

Outdoor Dual PIR Detector
Anti-creep
Anti-masking
To branch
PoE Power Supply
Detection coverage 30x20 m
Mounting for height 2.3 - 4 m
Dimensions 248x102x266 mm
Weight: 1.7 Kg

Technical data sheet

Model	SIP-3020-IP-BOX
Detection method	passive infrared
Coverage	30x20 m (100 x 65 ft.)
Power supply	PoE * (IEEE802.3af/at compliant)
Current draw	40mA max., 75mA, 415mA max. with optional heating unit
Mounting height	2.3 to 4m (7.6 to 13ft)
Sensitivity selector	Far: SH/H/M/L Near: SH/H/M/L
Detection logic selector	And/Or
Alarm interval period	Off/15, 30, 60 sec.
Alarm period	approx. 2 sec.
Warm-up period	approx. 60 sec.
Operating temperature	-25 to 60°C, -40 to +60°C with optional heating unit (-13 to + 140°F, -40 to 140°F with optional heating unit) If the heater is used, it should be external 22-26V AC (not POE)
IP rating	Main unit: IP66 Frame: IP55
Dimensions	248 x 102 x 266 mm (9.8 x 4.0 x 11.4 in.)
Weight	1.7 kg
Supported protocols	IPv4, ARP, UDP, TCP, ICMP, HTTP
Function setting	Use web browser
