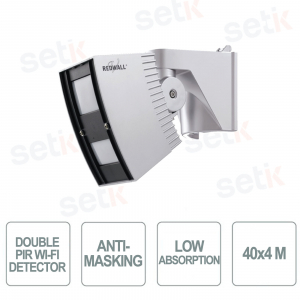

OUTDOOR LOW POWER DOUBLE PIR WI-FI DETECTOR WITH ANTI-CRAWLING - 40x4 M - OPTEX

Rilevatore a doppio PIR

Product details

  • Outdoor Dual PIR Detector
  • Anti-creep
  • low absorption
  • Wi-Fi
  • Detection coverage 40x4 m
  • Mounting for height 2.3 - 4 m
  • Dimensions 227x102x266 mm
  • Weight: 1.2 Kg

Technical data sheet

Model

SIP-404WF
Detection method Passive infrared
Coverage 40x10 m (130 x 13 ft.)
Power input 3 to 9 VDC alkaline or lithium battery
Operating voltage 2.5 to 10VDC
Current draw 40mA (Standby) 5mA max. (Operating LED ON)
Mounting height 2.3 to 4m (7.6 to 13ft)
Sensitivity selector Far: SH/H/M/L Near: SH/H/M/L
Range selector to: On/Off
Detection logic selector And/Or
Alarm input NC, 10 VDC, 0.01A max. NO 10 VDC, 0.01A max.
Alarm interval period Off/5, 60, 150 sec.
Troubleshooting NC, 10 VDC 0.01 A max.
Tamper-proof NC, 10 VDC 0.01 A max.
Alarm period approx. 2 sec.
Warm-up period approx. 120 sec.
Operating temperature -25 to 60°C (-13 to + 140°F)
IP rating Main unit: IP66
Frame: IP55
Dimensions 227x102x266 mm (9.0x4.0x10.5 in.)
Weight 1.2 Kg (42 oz)

Detection area

SIP-3020 dimensions

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
