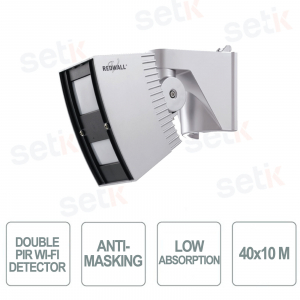

Outdoor 40x10m Low Power Wi-Fi Dual PIR Detector with Creep Detection - Optex

-32% nuevo

Dual IR Wi-Fi outdoor detector with low power consumption anti-masking, ensures a detection coverage of 40 x 10 meters. Mounting height 2.3 and 4 meters , IP65 & IP55 protection. - SIP-4010WF

referencia : SIP-4010WF

brand : Optex

BUSQUE INSTALADOR

https://www.setik.biz/es/sensores-y-detectores/11224-optex-sip-4010wf-outdoor-40x10m-low-power-wi-fi-dual-pir-detector-with-creep-detection-optex.html

427,24 €

628,30 € -32%

impuestos incluidos

ERES PROFESIONAL DEL SECTOR?
REGÍSTRESE PARA ACCEDER A SU LISTA

cantidad

Disponible en 5 dàas

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Download

OUTDOOR LOW ABSORPTION WI-FI DUAL PIR DETECTOR WITH ANTI-CRAWLING - 40x10 M - OPTEX

Product details

Outdoor Dual PIR Detector
Anti-creep
low absorption
Wi-Fi
Detection coverage 40x10 m
Mounting for height 2.3 - 4 m
Dimensions 227x102x266 mm
Weight: 1.2 Kg

Technical data sheet

Model	SIP-4010WF
Detection method	Passive infrared

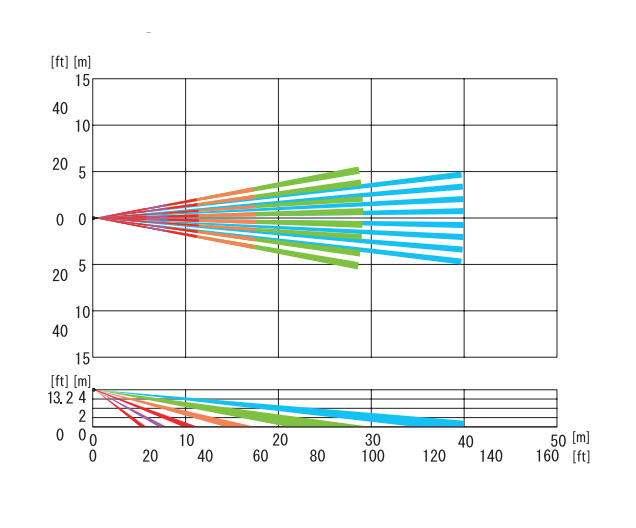

Coverage	40x10 m (130 x 33 ft.)
Power input	3 to 9 VDC alkaline or lithium battery
Operating voltage	2.5 to 10VDC
Current draw	40mA (Standby) 5mA max. (Operating LED ON)
Mounting height	2.3 to 4m (7.6 to 13ft)
Sensitivity selector	Far: SH/H/M/L Near: SH/H/M/L
Range selector	to: On/Off
Detection logic selector	And/Or
Alarm input	NC, 10 VDC, 0.01A max. NO 10 VDC, 0.01A max.
Alarm interval period	Off/5, 60, 150 sec.
Troubleshooting	NC, 10 VDC 0.01 A max.
Tamper-proof	NC, 10 VDC 0.01 A max.
Alarm period	approx. 2 sec.
Warm-up period	approx. 120 sec.
Operating temperature	-25 to 60°C (-13 to + 140°F)
IP rating	Main unit: IP66 Frame: IP55

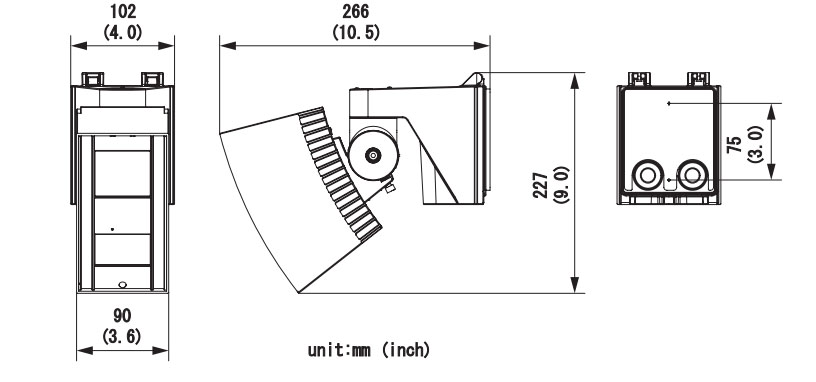

Dimensions	227x102x266 mm (9.0x4.0x10.5 in.)
Weight	1.2 Kg (42 oz)
