Outdoor dual infrared detector with anti-masking function provides a detection coverage of 40 x 10 meters , offering 48 detection zones. It features an intelligent sensor that adapts sensitivity based on ambient light and temperature, supported by an advanced detection algorithm for optimal performance. Anti-vandalism functions protect the device from tampering, while the logical detection and range selector ensures customized configuration. The alarm range is adjustable and the installation is compatible with heights between 2.3 and 4 meters , making it a versatile solution for outdoor security. - SIP-4010
BUSQUE INSTALADOR
398,21 €
585,60 € -32%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

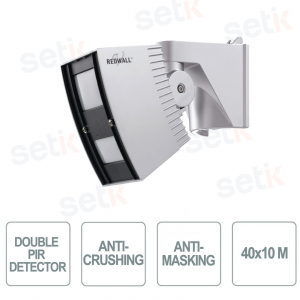

OUTDOOR DUAL PIR DETECTOR WITH ANTI-CRAWLING AND ANTI-MASKING ZONE - 40x10 M - OPTEX
Product details
- Outdoor Dual PIR Detector
- Anti-creep
- Anti-masking
- To branch
- Detection coverage 40x10 m
- Mounting for height 2.3 - 4 m
- Dimensions 227x102x266 mm
- Weight: 1.2 Kg
Technical data sheet
|
Model |
SIP-4010 |
| Detection method | Passive infrared |
| Coverage | 40x10 m (130 x 33 ft.) |
| Power input | 11-16 VDC 22-26 VAC, 22-26 VAC with optional heating unit |
| Current draw | 35mA max. (12VDC) 70mA (24VDC), 410mA max. (24VAC) with optional heating unit |
| Mounting height | 2.3 to 4m (7.6 to 13ft) |
| Sensitivity selector | Far: SH/H/M/L Near: SH/H/M/L |
| Range selector | to: On/Off |
| Detection logic selector | And/Or |
| Alarm input | NO, NC, 28 VDC 0.2A max. |
| Alarm interval period | Off/15, 30, 60 sec. |
| Troubleshooting | NC, 28 VDC 0.2 A max. |
| Tamper-proof | NC, 28 VDC 0.1 A max. |
| Alarm period | approx. 2 sec. |
| Warm-up period | approx. 60 sec. |
| Operating temperature | -25 to 60°C, -40 to +60°C with optional heating unit (-13 to + 140°F, -40 to 140°F with optional heating unit) |
| IP rating | Main unit: IP66 Frame: IP55 |
| Dimensions | 227x102x266 mm (9.0x4.0x10.5 in.) |
| Weight | 1.2 Kg (42 oz) |
