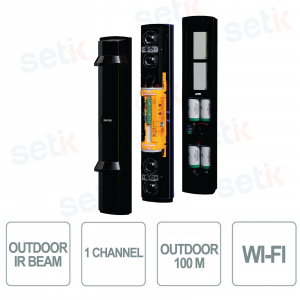

QUAD infrared barrier with low absorption for outdoor use, range 100m - wireless - Optex

QUAD infrared barrier with low absorption for outdoor use, range 100m - wireless - Optex
DOMANDE SUL PRODOTTO

 
-32%

Quad WI-FI infrared barrier with low power consumption and range up to 100 meters, ideal for reliable security applications. Supplied with 4 SAFT LSH20 lithium batteries, it offers automatic gain control (AGC) for stable and precise performance. Designed with infrared beam interruption detection and IP65 certification. - SL-350QNR



referencia : SL-350QNR

brand : Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Descubra todos los productos optex amplio catálogo de sensores de exterior. Encontrará optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Todo el mundo de la detección de intrusiones Optex

[short_description] =>

Optex

OPTEX fabricante y líder mundial en tecnología de detección de alto rendimiento. Desde hace más de 40 años en el mercado, Optex cuenta con miles de clientes en todo el mundo que les eligen cada día para sus sistemas de detección fiables.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex deteccion intrusiones, optex catalogo, optex sensores exterieur, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR QUAD LOW CONSUMPTION ACTIVE INFRARED BARRIER WI-FI - 100M RANGE - LONG RANGE - OPTEX

Barriera a raggi infrarossi QUAD Wi-Fi

Product details

  • QUAD infrared barrier low consumption outdoor long range
  • Wi-Fi
  • Range 100 m outside
  • Consumption: 745mA
  • Power supply: 3.6V DC
  • Working temperature: -20°C ~ +60°C
  • Dimensions: 452 x 83 x 138 mm

Technical data sheet

Model SL-350QNR
Maximum detection range 100m/350ft.
Maximum distance from arrival 1000m/3500ft
Detection method Quad infrared beam interruption detection
Selectable beam frequency 4 channels
Interruption time Variable between 50/100/250/500 ms (4 steps)
Power source Recommend: 3.6V, 13.0Ah
LSH20 lithium batteries manufactured by SAFT
Operating range: 3.2 V - 4.0 V lithium batteries
Transmitter: 2 or 4 units, Receiver: 2 or 4 units
Current draw 745µA
Transmitter: 420 µA + Receiver: 325 µA (at 25°C, 3.6 VDC)
Battery life Transmitter: Approx. 4 years
Receiver: Approx. 5 years
Output
Alarm output Form C-Solid State Switch: 3.6 VDC, 0.01 A
Alarm period 2 sec (±1) (Nominal)
DQ output Form C-Solid State Switch: 3.6 VDC, 0.01 A
(Receiver only)
Low battery output NC (mechanical switch): 3.6 VDC, 0.01 A
Tamper output (cover, back box, main unit) NC (contact output): 3.6 VDC, 0.01 A Opens when cover, main unit or back box is removed.
Indicator
Alarm indicator (Receiver) Alarm: ON
Light receiving: OFF
Level indicator (Receiver) No light receiving: OFF
Light receiving: Flickering or OFF
Power indicator (Transmitter) Power ON: ON
Power OFF: OFF
Low battery indicator Voltage reduction: Flickering
Operating temperature -20°C - +60°C (-40°F - 140°F)
Operating humidity 95% (max.)
Alignment angle ±90° Horizontal, ±10° Vertical
Dimensions 452 x 83 x 138 mm
Weight 3300 g (Total weight of Transmitter + Receiver, excluding accessories)
International protection IP65

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
