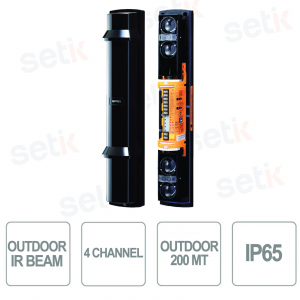

QUAD infrared barrier for outdoor use with long range, with a range of 200m and power control. The beam interruption detection with active infrared Quad technology guarantees precision and reliability, offering 4 selectable channels for a customized installation. Equipped with a practical button for selecting the upper or lower beam, this solution ensures optimal control in any context. - IP65 protection. - SL-650QDM



referencia : SL-650QDM

brand : Optex

BUSQUE INSTALADOR

434,71 €

639,28 € -32%
impuestos incluidos
IVA incl.
 Disponible en 5 dà­as
 dal


OUTDOOR QUAD ACTIVE INFRARED BARRIER - 200M RANGE - LONG RANGE - IP65 - OPTEX

Barriera a raggi infrarossi QUAD

Product details

  • QUAD long range outdoor infrared barrier
  • To branch
  • Range 200 m outside
  • 4 channels
  • Consumption: 40mA
  • Power supply: 10.5 - 30V DC
  • Working temperature: -25°C ~ +60°C
  • IP65 protection
  • Dimensions: 448 x 79 x 96 mm

Technical data sheet

Model SL-350QDM
Maximum detection range 200m / 650ft
Maximum arrival range 2000m / 6500ft
Detection method Quad infrared beam interruption detection
Interruption period Variable between 50/100/250/500 ms (4 steps)
Power Supply 10.5 - 30V DC
Current draw 40mA
(Transmitter:8mA Receiver:30mA)
Alarm period 2sec. (±1) nominal
Alarm output Form C relay : 30VDC, 0.2A
DQ output NC 28V DC, 0.2A (max.)
Tamper switch NC (contact output) : 30VDC, 0.1A Opens when cover removed
Operation Temperature -25°C - +60°C (-13°F - 140°F)
Operating Humidity 95% (Max)
Alignment Angle ± 90° Horizontal, ± 10° Vertical
Dimensions 448(17.6) x 79(3.1) x 96(3.8)
Weight 2400g(84.7oz) (Total weight of Transmitter + Receiver, excluding accessories)
IP rating IP65
