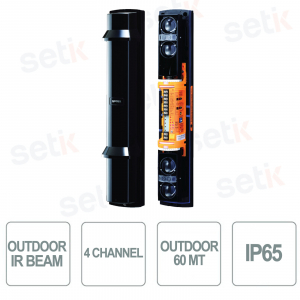

QUAD active infrared barrier for outdoor use range 60m - long range - IP65 - Optex

-32% nuevo

QUAD infrared barrier for outdoor use with long range, with a range of 60m and power control. The beam interruption detection with active infrared Quad technology guarantees precision and reliability, offering 4 selectable channels for a customized installation. Equipped with a practical button for selecting the upper or lower beam, this solution ensures optimal control in any context. - IP65 protection. - SL-200QN

referencia : SL-200QDM

brand : Optex

BUSQUE INSTALADOR

https://www.setik.biz/es/sensores-y-detectores/11126-optex-sl-200qdm-quad-active-infrared-barrier-for-outdoor-use-range-60m-long-range-ip65-optex.html

370,83 €

545,34 € -32%

impuestos incluidos

ERES PROFESIONAL DEL SECTOR?
REGÍSTRESE PARA ACCEDER A SU LISTA

cantidad

Disponible en 5 dàas

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Data Sheet Download

OUTDOOR QUAD ACTIVE INFRARED BARRIER - 60M RANGE - LONG RANGE - IP65 - OPTEX

Product details

QUAD long range outdoor infrared barrier
To branch
Range 60 m outside
4 channels
Consumption: 38mA
Power supply: 10.5 - 30V DC
Working temperature: -25°C ~ +60°C
IP65 protection
Dimensions: 448 x 79 x 96 mm

Technical data sheet

Model	SL-200QN
Maximum detection range	60m / 200ft
Maximum arrival range	600m / 2000ft
Detection method	Quad infrared beam interruption detection
Interruption period	Variable between 50/100/250/500 ms (4 steps)
Power Supply	10.5 - 30V DC
Current draw	38mA (Transmitter:8mA Receiver:30mA)
Alarm period	2sec. (±1) nominal
Alarm output	Form C relay : 30VDC, 0.2A
DQ output	NC 28V DC, 0.2A (max.)
Tamper switch	NC (contact output) : 30VDC, 0.1A Opens when cover removed
Operation Temperature	-25°C - +60°C (-13°F - 140°F)
Operating Humidity	95% (Max)
Alignment Angle	± 90° Horizontal, ± 10° Vertical
Dimensions	448(17.6) x 79(3.1) x 96(3.8)
Weight	2400g(84.7oz) (Total weight of Transmitter + Receiver, excluding accessories)
IP rating	IP65
