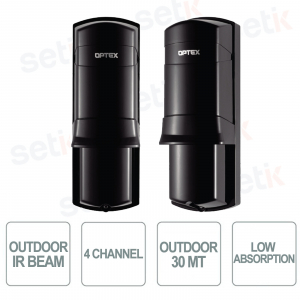

Low Power Outdoor Twin Infrared Barrier - 30m Range - IP55 - Optex

Low Power Outdoor Twin Infrared Barrier - 30m Range - IP55 - Optex
-32%

Outdoor low-consumption, double-beam coded infrared barrier with a range of 30m. 4 beam frequencies selectable directly on site, integrated with a DQ (environmental disqualification) circuit for optimal operation. Includes the beam interruption time adjustment function, LED signaling and low battery output. 4 SAFT LSH20 lithium batteries. - IP55 protection. - AX-100TFRC



referencia : AX-100TFRC

brand : Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Descubra todos los productos optex amplio catálogo de sensores de exterior. Encontrará optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Todo el mundo de la detección de intrusiones Optex

[short_description] =>

Optex

OPTEX fabricante y líder mundial en tecnología de detección de alto rendimiento. Desde hace más de 40 años en el mercado, Optex cuenta con miles de clientes en todo el mundo que les eligen cada día para sus sistemas de detección fiables.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex deteccion intrusiones, optex catalogo, optex sensores exterieur, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR INFRARED BARRIER WITH TWIN LOW ABSORPTION - WIRED - RANGE 30M - IP55 - OPTEX

Barriera a doppio fascio a infrarossi a basso assorbimento

Product details

  • Low absorption medium range outdoor twin infrared barrier
  • Range 30 m outside
  • Consumption: 620mA
  • Power supply: 3.6V 13.0Ah 4 LSH20 lithium batteries
  • Working temperature: -20°C ~ +60°C
  • IP65 protection
  • Dimensions: 217 x 89 x 163 mm

AX-100TFRC scope

Technical data sheet

Model AX-100TFRC
Detection method Infrared beam interruption detection
Maximum detection range 30m (100ft.)
Maximum arrival range 265m (870ft.)
Interruption period Selectable between 50, 100, 250, and 500m sec.
Selectable beam frequency 4 channels
Power Source 3.6V 13.0 Ah: LSH20 lithium batteries
manufactured by SAFT (not included)
Transmitter: 2units Receiver: 2 units
Current Drow 620mA
T: 300mA+R:320mA
(at 25°C, 3.6 VDC)
Batteries Life 5 Years
Output
Alarm period 2sec. (±1) nominal
Alarm output From C-Solid State Switch: 3.6 VDC, 0.01A
DQ output From A/B-solid State Switch: 3.6 VDC, 0.01 A
Low battery output From A/B-solid State Switch: 3.6 VDC, 0.01 A
(Transmitter & Receiver)
Tamper output for front cover From C: 3.6VDC, 0.01A
activates when cover removed (reciver only)
Tamper output for back box From C: 3.6VDC, 0.01A
activates when either back box or chassis is removed from the installment
Indicator
Alarm Indicator (Receiver) (1) Light on - IR Beam not received.
(2) Flickering Light - IR Beams not received sufficiently
(3) Light Off - IR Beams received
Power (Transmitter) Power ON:ON
Power OFF:OFF
Low Battery Voltage reduction: flicker
Operation temperature -20°C-+60°C (-4°F - +140°F)
Operating ambient humidity 95% (max.)
Alignment angle ± 90° Horizontal, ± 5° Vertical
Mounting Indoor/Outdoor, Wall/Pole/Tower mounting
(Optional main unit mounting brackets are required, when the unitsmount in the tower)
Weight 1600g (56.5oz)
(Total weight of transmitter + receiver, excluding accessories)
International protection IP55
