Low-consumption outdoor PIR + MW detector. Detection coverage with adjustable anti-masking up to 12 meters and 90° panoramic, programmable in 2 levels. Easy anti-fall masking. Double conductive shielding against disturbances due to strong light. VXS-DAMW
BUSQUE INSTALADOR

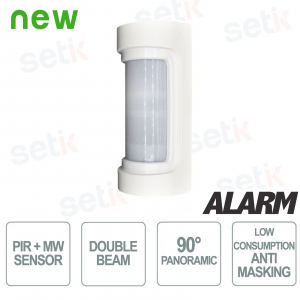

OUTDOOR PIR + MW DETECTOR WITH LOW ABSORPTION - ANTI-MASKING - RANGE 12 METERS AND 90° PANORAMIC - OPTEX
|
DESCRIPTION: This device features 2 adjustable detection beams, advanced temperature compensation logic and ambient noise immunity. Extremely reliable product. |
Product details
- Passive Infrared PIR Detector - Optex
- Anti-masking
- Type: Low-power outdoor PIR + MW detector
- Adjustable detection coverage up to 12 meters and 90° panoramic, 16 zones wide
- Power supply 9.5V ~ 18V DC
- Operating Temperature -30 to 60°C (-22 to 140°F)
- IP55 protection
- Dimensions 200 x 82 x 71 mm
Technical data sheet
| Model | VXS-RDAMW |
| System | |
| Detection method | Passive infrared, Antimasking + MW, low consumption |
| PIR Coverage | 12.0 m (40 ft) 90° wide / 16 zones |
| PIR Distance Limit | 2.5 – 12 m (5 levels) |
| Detectable Speed | 0.3 – 2.0 m/s |
| Sensitivity | 2.0°C (3.6°F) at 0.6 m/s |
| Power Input | Lithium or alkaline battery 3 – 9 V DC |
| Current Draw | 18 μA standby / 8 mA max. at 3 V DC |
| Alarm Period | 2.0 ±1 sec. |
| Warm-up Period | Approx. 60 sec. (LED blinks |
| AlarmOutput | NC / NO Selectable Solid State Switch 10V DC 0.01A Max |
| Tamper-Output | NC / NO Selectable Solid State Switch 10V DC 0.01A max. |
| LED indicator | Red: Heating, Alarm, Darkening detection Yellow: Heating, DIP switch ON or Pass test |
| Operating temperature | -20°C to +45°C (-4°F to +113°F) |
| Humidity environment | 95% max |
| International Protection | IP55 |
| Mounting | Wall, Pole (Outdoor, Indoor |
| Mounting Height | 0.8 – 1.2 m (2.64 – 3.94 ft) |
| Weight | 550g (17.7oz.) |
| Dimensions | 200mm x W: 82mm x D: 71mm. |
