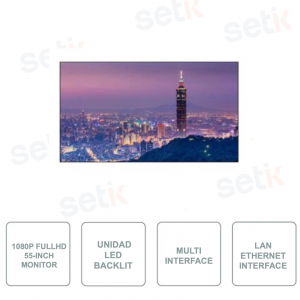

HYU-540 - LED Video Wall Unit - D-LED DID Panel - 55 Inches - 16:9 - FULL HD - USB - RJ45 - Multi interface

HYU-540 - LED Video Wall Unit - D-LED DID Panel - 55 Inches - 16:9 - FULL HD - USB - RJ45 - Multi interface

HYU-540 - HYUNDAI - 55 Inch LED Monitor - 16:9 Panoramic Aspect Ratio - Native Resolution 1920x1080 1080p Full HD - 1 HDMI - 1 DisplayPort - 1 BNC - 1 VGA - 1 RJ45 - USB Port - 24x7 Operation - 5ms Response Time - 178°/178° Viewing Angle (Horizontal/Vertical) - Point-to-Point Calibration Possibility - VESA Mount Compatible - Fanless and Noise-Free Design - 60,000 Hours of Use.



referencia : HYU-540

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Videosorveglianza Hyundai Security

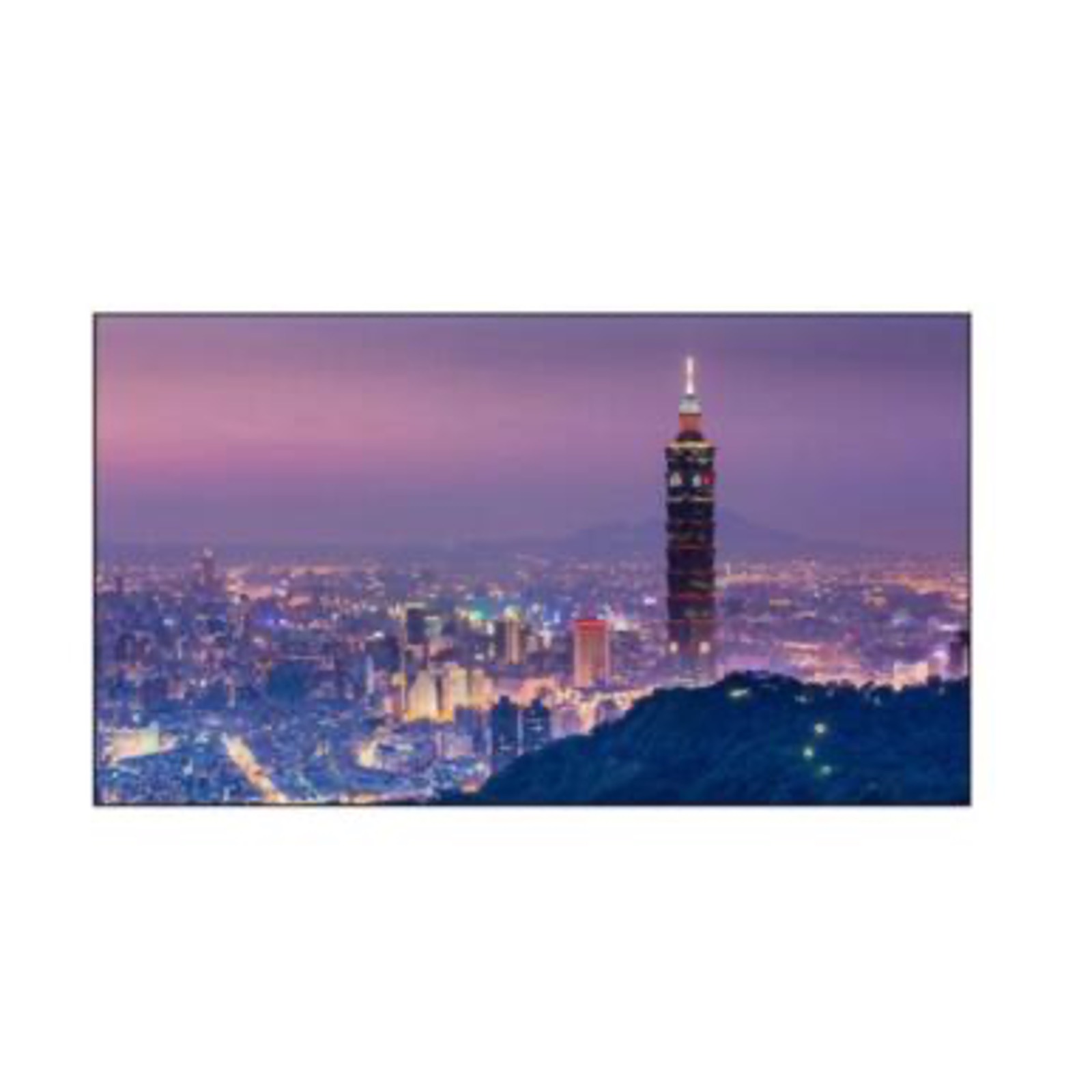

HYUNDAI 55 INCH LED MONITOR UNIT - 1920x1080 FULL HD - FOR VIDEOWALL

Hyundai Security

HYU-540 - HYUNDAI - 55 inch monitor - D-LED DID panel - Resolution 1920x1080p - HDMI - BNC - VGA - DVI - 2 RJ45 interfaces - Response time 5 ms - Ideal for video wall setup - Tested to work 24x7 continuously - VESA standard 500x400 - USB port - Fanless and silent - 60,000 hours of use (estimated mean time between failures) - 8-bit color depth - Contrast 4,000:1 - Brightness: 500 cd/m2 - Dimensions: 1213.5 (width) x 684.3 (height) x 96.6 (depth) mm - Operating temperature of the device: -10°C ~ +55°C - Viewing angle: 178°/178° (horizontal/vertical).

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOGUE:

Are you looking for a HYUNDAI product but you couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

Backlit LED display

LED Monitor

55 " LED backlit display.
High quality images

2.0 Megapixel Full-HD 1920x1080 resolution

FULL HD resolution (1920 x 1080)

FULL HD

With a resolution of 1920 x 1080p the monitor displays images in high definition. This means that it can fit more information on the screen; for example, it captures 60% more information than a 1280 x 1024 monitor.

Risoluzione FULL HD 1920x1080 Monitor E2280HS-B1

VESA mount

VESA mount

VESA mount compatibility means you can easily mount the LED to any VESA compatible stand.

The VESA size for this model is 500x400mm.

Attacco VESA

Uscita VGA



This product features 1x HDMI port, 1x VGA port, 1x BNC port, 1x DVI port

This DVR features 2 RJ-45 ports (10 / 100 / 1000Mbps) 2 RJ45 network interface
Tempo di risposta 5ms This product features a response time of 5ms
Power supply 12V 3A A 100V~240V AC, 50/60Hz power supply is required to operate this monitor.
Garanzia 3 anni This product is covered by a 3 Year Warranty!

Technical data sheet

Model HYU-540
  • 55" LED unit, ideal for video wall setup
  • Aspect ratio of 16:9
  • D-LED DID Panel
  • Maximum visual performance, with 14-bit grayscale
  • Point-to-point calibration, ensuring excellent color and brightness uniformity
  • Bevel Size: 2.3mm Top/Right, 1.2mm Left/Bottom, 3.5mm Total
  • Native resolution: 1920x1080
  • Brightness: 500 cd/m2
  • Contrast 4000:1
  • 8-bit color depth (16.7M)
  • Pixel size: 0.248 x 0.248
  • Maximum pixel frequency of 148.5MHz
  • Viewing angle: 178°/178° (horizontal/vertical)
  • Response time: 5ms
  • Input Interface: 1 HDMI, 1 DP (Display Port), 1 BNC, 1 VGA, 1 RJ45
  • Output interface: 1 BNC, 2 RJ45
  • USB port
  • Operating temperature -10°C ~ +55°C
  • Power supply: 100V ~ 240V AC, 50/60Hz
  • Consumption: ≤198W (max), <0.5w rest="" li="">
  • VESA mounting pattern 500x400
  • Dimensions: 1213.5 (width) x 684.3 (height) x 96.6 (depth) mm
  • Fanless, noiseless design: maximum silence
  • Supports 24x7 operation
  • MTBF: approximately 60,000 hours (estimated average time margin between possible failures)

Further details

Famiglia di prodotti hyundai

Download

Brochure: not available.
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
