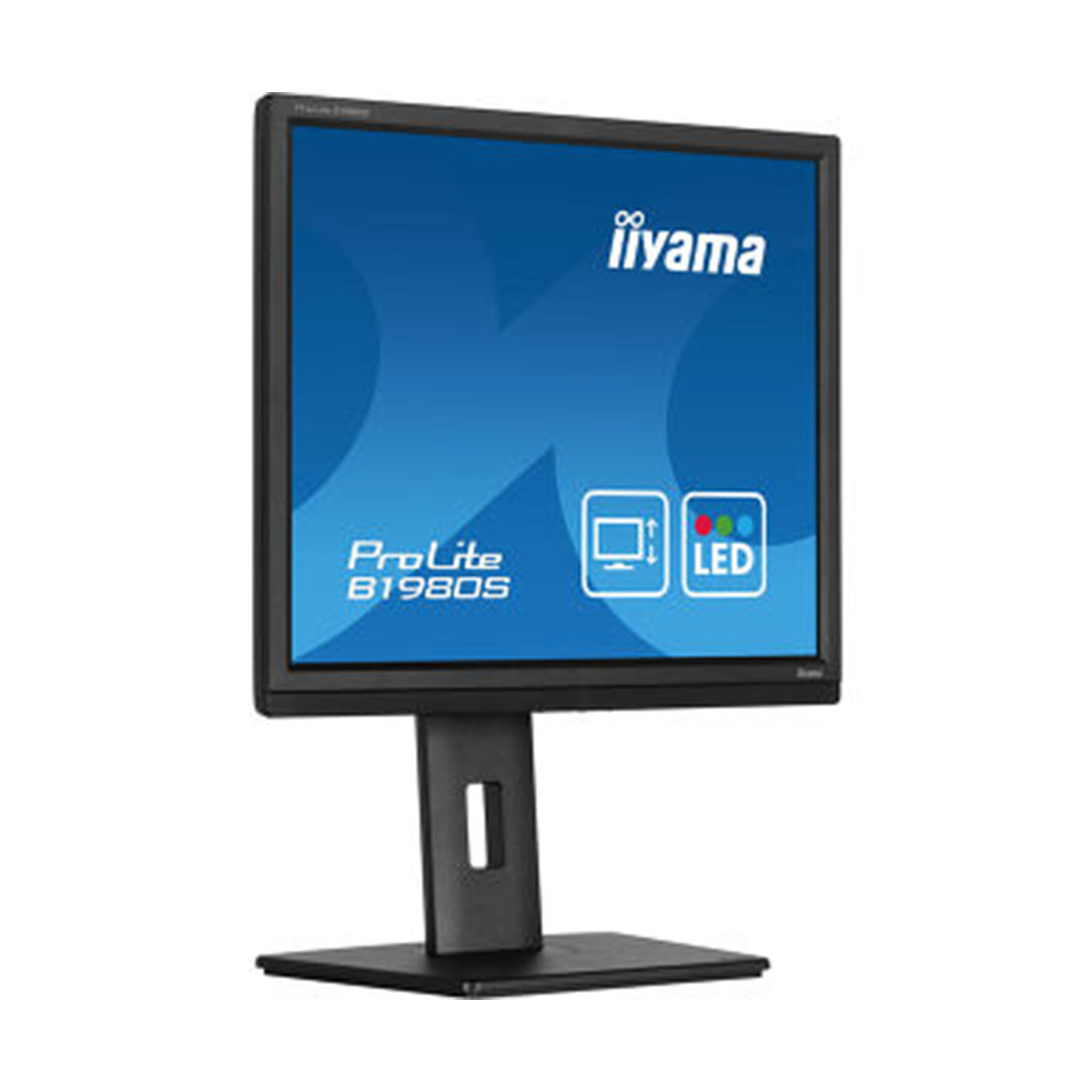

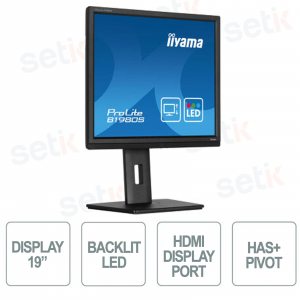

The IIYAMA ProLite B1980S-B1 is a 19'' 1280 x 1024 @75Hz 1.3MP monitor , 5:4 aspect ratio, with Height Adjustable Stand (HAS+PIVOT), which also supports screen rotation; the display is TN, LED backlit. 3ms response time and advanced contrast ratio 12,000,000 : 1. 1x HDMI & 1x DisplayPort, 2 X 2W high quality stereo speakers.
BUSQUE INSTALADOR
PROLITE LED MONITOR 19" 1280x720 1.3MP WITH SPEAKERS - HDMI - DISPLAYPORT - IIYAMA
LCD Monitor - IIYAMA
Size: 19" - LED Backlit TN Display - Resolution 1.3MP 1280x720p
Equipped with 2x2W Stereo Speakers and Headphone Output - 1x HDMI & 1x DisplayPort - Height Adjustable - HAS+PIVOT Adjustment - sRGB Color Range
3 Years Direct Manufacturer Warranty
Product details
- Monitor - IIYAMA
- Type: LED backlit TN monitor
- Display 19" 1280x720p 1.3 Megapixe l
- Integrated speakers ~ 2 x 2 W (Stereo)
- VESA mount support
- HDMI - DisplayPort
- Headphone Output
- Response time 3ms
- ACR function (Advanced Contrast Ratio = 12M:1 )
- OSD menu in multi-language (EN, DE, FR, ES, IT, CN, RU, JP, NL, PL )
- Dimensions: 411 x 453 (603) x 245.5mm
- Color: Matte, Black
Technical data sheet
| Model | B1980S-B1 |
| DISPLAY CHARACTERISTICS | |
| Diagonal | 19", 48cm |
| Panel | TN |
| Native resolution | 1280 x 1024 @75Hz (1.3 megapixels) |
| Aspect ratio | 5:4 |
| Brightness | 250 cd/m² typical |
| Static Contrast | 1000:1 typical |
| Advanced Contrast | 12M:1 |
| Response Time | 3ms |
| Viewing Area | horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80° |
| Colour Support | 16.7 million (sRGB: 99%; NTSC: 72%) |
| Horizontal Sync | 30 - 80kHz |
| Viewable area W x H |
376.32 x 301.05mm, 14.8 x 11.9" |
| PixelPitch | 0.294mm |
| Colour | matte finish |
| INTERFACES / CONNECTORS / CONTROLS | |
| Signal Input | HDMI x1 DisplayPort x1 |
| HDCP | yes |
| FEATURES | |
| OSD Languages | EN, DE, FR, ES, IT, CN, RU, JP, NL, PL |
| Control Buttons |
Power, Menu, + / Volume, -/ Eco, Signal Select (Auto) |
| User Controls |
picture adjust (contrast, brightness, i-Style colour, ACR, Eco, OD, |
| Speakers | 2 x 2W |
| Convenience | Kensington-lock™ prepared, DDC2B, Mac OSX |
| MECHANICAL | |
| Display Position Adjustment | height, swivel, tilt, pivot (rotation both sides) |
| Height adjustment | 150mm |
| Rotation (PIVOT function) | 90° |
| Swivel stand | 120°; 60° left; 60° right |
| Tilt Angle | 23rd up; 5th down |
| VESA mounting | 100 x 100mm |
| Cable management system | yes |
| ACCESSORIES INCLUDED | |
| Cables | power, HDMI |
| Other | quick start guide, safety guide |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power usage | 12W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulation |
CE, TÜV-GS, RoHS support, ErP, WEEE, REACH, UKCA |
| Energy efficiency class (Regulation (EU) 2017/1369) |
D |
| EPEAT Silver | *registration varies by country, go to www.epeat.net for details |
| REACH SVHC | above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D |
411 x 453 (603) x 245.5mm |
| Box dimensions W x H x D |
490 x 416 x 162mm |
| Weight (without box) | 4.5kg |
| Weight (with box) | 5.6kg |
Further details
 |
LED Backlit TN Monitor 19" LED backlit display. Common CCFL LCD monitors use 4 backlight bulbs.
|
 |
Resolution ( 1280 x 720 ) 1.3 MEGAPIXEL With a resolution of 1280 x 1024 @75Hz the monitor displays high definition images. |
 |
HAS + Pivot (rotate both sides) The height-adjustable stand allows you to create an ergonomic posture and working position, to meet all health and safety requirements. This not only prevents health problems, but also ensures improved productivity. The Pivot function allows you to rotate the screen from portrait to landscape mode. This feature is useful in case the application prioritizes height over width.  |
 |

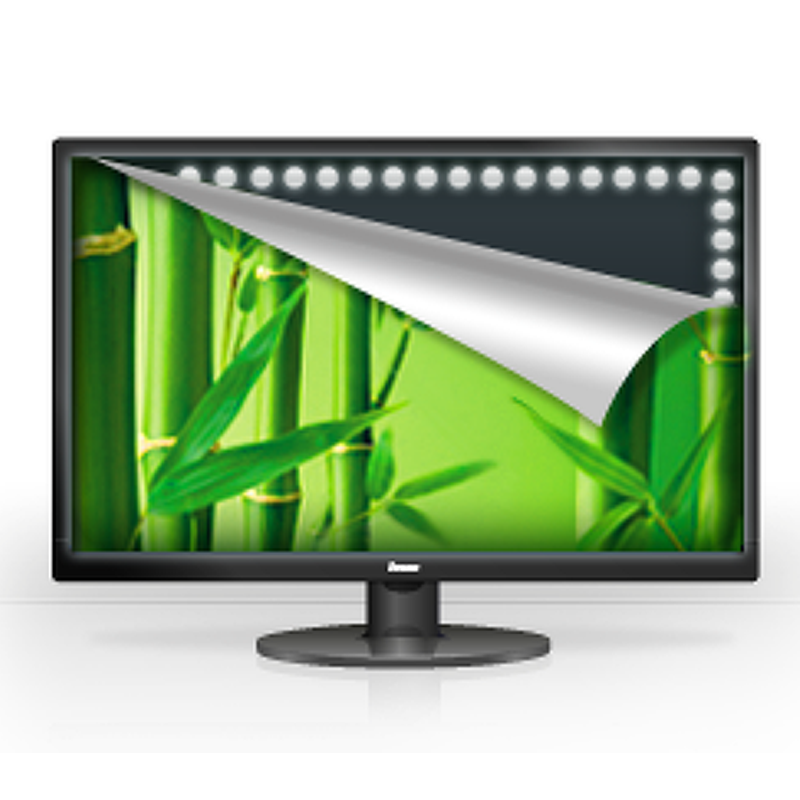

LED backlit A typical CCFL LCD uses four backlight lamps. The use of LED diodes significantly reduces energy consumption and CO2 emissions into the environment, making this LCD a true ECO-Friendly product.  |
 |

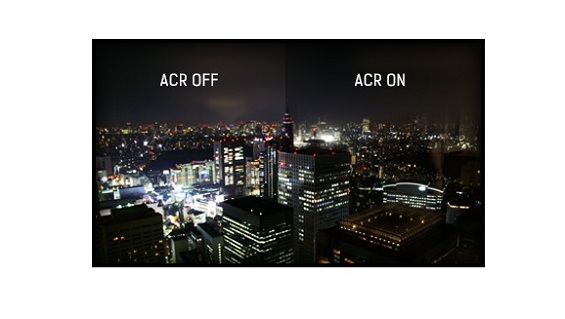

ACR (Advanced Contrast Ratio) Contrast Ratio is a measurement of the difference between the darkest black and the brightest white your monitor can display. Advanced Contrast Ratio is a feature that automatically adjusts the contrast and brightness of your display to ensure perfect image quality when watching movies or playing games. Ratio 12M:1
|
|
|
Stereo Speakers The monitor is equipped with 2 x 2W Speakers (Stereo) + Headphone Output . High quality sound
|
 |
VESA mount VESA mount compatibility means you can easily mount the LFD to any VESA-compatible mount.
|
|
|
This product features 1 x HDMI port, 1 x DisplayPort port, |
 |
This product features a response time of 3ms |
 |
This product is covered by a 3 YEAR DIRECT manufacturer's warranty . |
