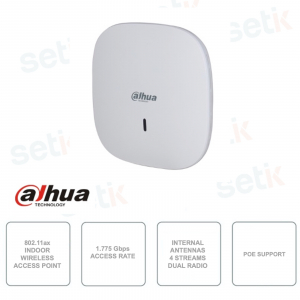

AWA6220-C - Dahua - Punto di accesso wireless - Standard wireless Wi-Fi 802.11ax - Supporta PoE - Fino a 1.775Gbps - 1 porta poE 802.3af - Porta ethernet RJ45 10/100Mbps - RF Optimizing Engine - Supporta OFDMA - Gain antenna fino a 5dBi - 4 antenne integrate - Prodotto di alta qualità.
317,38 €
738,10 € -57%PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)
DAHUA: PRECIOS BAJOS×
DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
Descubre la promoción ahora >>
PUNTO DI ACCESSO WIRELESS - 802.11ax - 1.775Gbps. - 4 ANTENNE - FREQUENZA DOPPIA 2.4GHZ e 5GHZ
![Made by Dahua width= Made by Dahua](https://www.setik.biz/img/m/13-prod_large.jpg)
WA6220-C - Dahua - Wireless access point
Dettagli prodotto
![NVR 8 Canali IP - NVR2108HS-W-4KS2 Router 4G LTE Wi-Fi](https://cdn.setik.biz/storage/images/Articoli/9320_3068_55_003.jpeg)
![]() |
Supporta WiFi 802.11ax
|
![]() |
1 porte LAN - RJ-45 (10/100Mbps) 1 porta PoE 802.3af
|
![]() |
Questo prodotto è coperto da Garanzia di 24 mesi. |
Scheda tecnica
AWA6220-C | |
Technical Speci?cation |
|
Hardware |
|
Weight (excluding mounting accessories) |
0.4 kg (0.88 lb) |
Dimensions (excluding mounting and accessories) |
185 mm × 185 mm × 43 mm (7.28" × 7.28" × 1.69") (L × W × H) |
Ethernet Ports |
1× 100/1000M Base-T RJ-45 |
PoE |
Port1: 802.3af |
Local Power Supply |
54 VDC |
Antenna |
Built-in omni-directional antenna 3 dBi antenna gain @2.4 GHz 5 dBi antenna gain @5 GHz |
Working Frequencies |
802.11ax/ac/n/a: 5.725 GHz–5.850 GHz; 5.47 GHz–5.725 GHz; 5.15 GHz–5.35 GHz 802.11ax/b/g/n: 2.4 GHz–2.483 GHz |
Modulation Mode |
11b: DSS: CCK@5.5/11 Mbps, DQPSK@2 Mbps, DBPSK@1 Mbps 11a/g: OFDM: 64QAM@48/54 Mbps, 16QAM@24 Mbps, QPSK@12/18 Mbps, BPSK@6/9 Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
Maximum Transmit Power |
20 dBm |
Reset/Restoration To Factory Default |
Yes |
State LED |
Alternating flashing mode, orange/green/blue for different working states, breathing mode |
Enviorment |
Indoor |
Working Temperature |
–10 °C to 55 °C (14 °F to 131 °F) |
Storage Temperature |
–40 °C to 70 °C(–40 °F to +158 °F) |
Working Humidity |
5%–95% (non-condensing) |
Storage Humidity |
5%–95% (non-condensing) |
Protection Class |
IP41 |
EMC |
CE EMC, CE RED |
MTBF |
>250000H |
Software speci?cations |
|
Compliance |
Compliant with 802.11a/b/g/n/ac/ax |
Working Frequencies And MIMO |
2.4G 2*2 MIMO 0.575 Gbps 5G 2*2 MIMO 1.2 Gbps |
Bandwidth |
20 MHz/40 MHz/80 MHz |
WLAN Basics |
Maximum number of clients per radio: 512 Virtual APs: 32 Open system/shared key authentication Broadcast probe request acknowledge control Concurrent login of WPA, WPA2,WPA3 and Pre-RSNA users RTS/CTS CTS-to-self 802.11k and 802.11v smart roaming 802.11r fast transition roaming Advanced Traffic Management Restrict low rate/sticky terminals access Channel reuse Receiver sensitivity adjustment Automatic channel/power/bandwidth adjustment Hide SSID Hotspot 2.0 |
Security Policy |
WEP-64/128/152bit, dynamic WEP, TKIP, AES, EAP, CCMP , WPA3 Multiple triggering conditions for unicast and broadcast key update Support 802.11i 802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK Layer 2 user isolation SSID-based user isolation Packet filtering MAC address filtering Broadcast storm suppression Wireless EAD SSID and VLAN binding WIDS/WIPS |
AAA |
RADIUS client Multiple-domain authentication server Backup authentication server |
Layer 2 And Layer 3 Features |
IP address configuration: Static IP (available only in fat AP mode)/DHCP assigned IP (Option 60) IPV6: Native IPv6/IPv6 Portal/IPv6 SAVI ACL: IPv4/IPv6 Local forwarding based on SSID and VLAN Link Layer Discovery Protocol (LLDP) SSID-based VLAN assignment EoGRE Tunnel Multicast: IGMP Snooping/MLD Snooping |
QoS |
802.11e: Wi-Fi Multimedia (WMM) 802.1p priority and marking on Ethernet ports Priority mapping for wired and wireless packets SSID/VLAN and QoS policy mapping Layer 2 to Layer 4 packet filtering and traffic classification CAR Client bandwidth management Traffic-based load balancing Session-based load balancing Frequency-based load balancing (supports dual-band) Band navigation (5G priority) Multicast optimization (IPv4/IPv6) Call Admission Control (CAC) Airtime optimization Airtime fairness Layer 4-7 application identification SVP Phone |
Management And Maintenance |
AP Working Mode: Fit/Fat Network management:Trap, HTTP(S), SSH, Telnet, FTP/ TFTP, SNMP V1/V2/V3 only applicable in Fat mode Management SSID Syslog Remote Probing and analysis |
