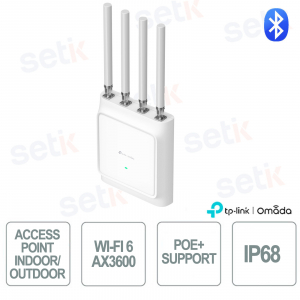

TP-Link Omada EAP668-Outdoor HD Access Point Indoor/Outdoor WiFi 6 AX3600 for High Density Business Networks IP68

TP-Link Omada EAP668-Outdoor HD Access Point Indoor/Outdoor WiFi 6 AX3600 for High Density Business Networks IP68
ANUNCIOS nuevo

TP-Link Omada EAP668-Outdoor HD is a high-performance Wi-Fi 6 access point designed for high-density outdoor environments. With speeds of up to 3550 Mbps , it supports MU-MIMO, OFDMA and centralized management via Omada SDN , ensuring a stable, secure and scalable connection. The IP67 weatherproof design makes it perfect for campuses, stadiums and public spaces



referencia : EAP668-Outdoor HD

brand : OMADA

EAN: 1210002602570

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2024-06-19 10:38:25 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

EAP668-Outdoor HD Banner

AX3600 CEILING ACCESS POINT DUAL-BAND Wi-Fi 6 - TPLINK OMADA

Next-generation AX3600 Dual-Band Wi-Fi 6 Access Point, designed to deliver ultra-fast and reliable connectivity in outdoor environments. With a combined speed of up to 3.6 Gbps (1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz), it supports up to 1,024 devices simultaneously, making it perfect for high-density public spaces such as campuses, plazas, stadiums and industrial areas.
Equipped with multiple ports for flexible networking, it includes 1x 10G SFP+ slot, 1x 2.5G PoE-In port, and 1x
Gigabit PoE-Out port, providing great versatility in connection management. Power is compatible with PoE+ (802.3at) and PoE++ (802.3bt), with PoE+ output to power other network devices.
Designed to withstand the harshest environments, it features an IP68 weatherproof enclosure, 6kV lightning protection and an operating range of -40°C to +70°C, ideal for all climate conditions.
Advanced features include seamless roaming, Omada Mesh, built-in Bluetooth, and centralized cloud management via the Omada SDN platform.


EAP668-Outdoor HD fronte e retro

Main features:

  • Ultrafast Wi-Fi 6 up to 3.6Gbps: 1148 Mbps on 2.4GHz and 2402 Mbps on 5GHz
  • Supports up to 1,024 simultaneous devices, ideal for high-density environments
  • Flexible connectivity with: 1 x 10G SFP+ slot, 1 x 2.5G PoE-In port & 1 x Gigabit PoE-Out port
  • PoE+/PoE++ (802.3at/bt) power supply with support for PoE+ (802.3at) output
  • Ultra-rugged outdoor construction: IP68 rated, 6kV lightning protection, withstands
  • Advanced Features: Omada Mesh, Seamless Roaming, Built-in Bluetooth & Centralized Management via Omada SDN (cloud/web/app)

Technical data sheet

Model EAP668-Outdoor HD
HARDWARE FEATURES
Interface 1 2.5G Ethernet port + 1 Gigabit Ethernet port + 1 10G SFP+ port
Key Reset
Diet PoE 802.3at/bt
Energy consumption 802.3bt:
EU: 20.2 W (bt type 3: PSE af output; bt type 4: PSE at output)
US: 25.4 W (bt type 3: PSE af output; bt type 4: PSE at output);
802.3at:
EU: 20.2W (PSE disabled)
US: 25.4W (PSE disabled)
Note: PoE output power not included. PoE output functionality requires 802.3bt PoE input.
Dimensions (L x W x H) 9.5 × 3.2 × 12.3 inches (240 × 80 × 312 mm) (excluding antennas, waterproofing kit and mounting kit)
Antenna type 4 external dual-band omnidirectional antennas
2.4GHz: 6.0dBi
5GHz: 6.0dBi
Bluetooth Yes
Weatherproof Enclosure IP68
Mounting type Wall/Pole Mount (Kits Included), Supports ±45° Horizontal Adjustment
Optional bracket accessory APM-110: supports vertical adjustment ±90°, horizontal ±45°
Optional bracket accessory APM-100: supports vertical adjustment ±45°, horizontal ±45°
(Note: Optional bracket accessories need to be purchased separately)
WIRELESS FEATURES
Concurrent Clients 1,000+
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax
Frequency 2.4GHz and 5GHz
Signal rate 5GHz: Up to 2402Mbps
2.4GHz: Up to 1148Mbps
Wireless functionality 1024-QAM
Mesh
Seamless Roaming (802.11k/v/r)
Enable/Disable Wireless Radio
Enable/Disable SSID Broadcast
Guest Network
Automatic Channel Assignment (Adjust transmit Power on dBm)
Transmit Power Control
Band Steering
Load Balance
Beamforming
Airtime Fairness
Multiple SSIDs:16 (8 for each band)
MU-MIMO (4 × 4 MU-MIMO DL/UL)
UL/DL OFDMA
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IP
Wireless Security VLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
Wireless Isolation between Clients
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission power CE: < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band 1&band 2, EIRP); < 30 dBm (5 GHz, band 3, EIRP);
FCC: < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3)
MANAGEMENT
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Hardware Controller
Omada Software Controller
Omada App
Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
SSH Yes
Web-based management Yes
OTHER
Certification CE, FCC, RoHS
Package Contents EAP668-Outdoor HD
4× External Dual-Band Omni Antennas
Waterproof Kit
Installation Guide
Mounting Kits
Environment Operating Temperature: 0°C–40°C (32°F–104°F);
Storage Temperature: -40°C–70°C (-40°F–158°F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing
EAP668-Outdoor HD icons

Ultra high capacity

With a high-performance multi-core CPU and advanced QoS, the EAP668-Outdoor HD ensures optimal WiFi performance to support over 1000 connected devices.

Ultra high capacity

Perfect for Wi-Fi coverage of the annex

Perfect for Wi-Fi coverage of the annex

Industry-leading IP68 weatherproof design

The fully sealed EAP668-Outdoor HD exceeds IP67 standards, offering total protection against dust and withstanding prolonged immersion in water – the ideal solution for even the most challenging outdoor conditions. Industry-leading IP68 weatherproof design

Flexible Networking Solutions with SPF+ and PoE Ports

Equipped with SPF+ Ethernet and PoE ports for versatile network connectivity to meet different needs.

Flexible Networking Solutions with SPF+ and PoE Ports

Seamless Connectivity with Mesh and Roaming

It ensures customers enjoy uninterrupted streaming even when they are on the move by automatically directing clients to access points with the best signal.

Seamless Connectivity with Mesh and Roaming

Quick and easy setup

Easy installation via wall and pole mounting*

Quick and easy setup EAP668-Outdoor HD

Works with Omada SDN for one-click installation

Omada SDN enables users to quickly set up the EAP668-Outdoor HD through automatic device identification and one-click adoption.

Works with Omada SDN for one-click installation EAP668-Outdoor HD

Providing Enterprises with Reliable Omada SDN Solutions

Omada's Software-Defined Networking (SDN) solution seamlessly integrates access points (APs), managed switches, and gateways, enabling 100% centralized cloud management for a highly scalable network.

Omada SDN reliable EAP668-Outdoor HD

2 year warranty

The following product is covered by a 2 year warranty
