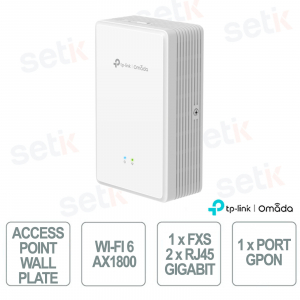

TP-Link Omada EAP625GP-Wall Access Point Wall-Plate GPON WiFi 6 AX1800 MU-MIMO for High Density Enterprise Networks
The TP-Link Omada EAP625GP-Wall is a Wi-Fi 6 AX1800 GPON wall-mounted access point designed for hotels, offices and residential complexes. It offers speeds of up to 1.8Gbps (1201Mbps on 5GHz and 574Mbps on 2.4GHz), ensuring fast and reliable connections. Equipped with a GPON port for high-speed fiber optic access, an RJ11 FXS port for VoIP services and two RJ45 Gigabit ports (one with 802.3af PoE support), it allows for flexible deployment and connection of various wired devices. Centralized management via Omada SDN and advanced features such as Omada Mesh and seamless roaming ensure an efficient and easily manageable network.
BUSQUE INSTALADOR
AX1800 ACCESS POINT INDOOR WALL PLATE GPON Wi-Fi DUAL-BAND MU-MIMO - TPLINK OMADA
The TP-Link Omada EAP625GP-Wall is a Wi-Fi 6 AX1800 access point designed to provide high-speed connections and advanced integration with optical fiber, perfect for environments such as hotels, offices and residential complexes. Thanks to Wi-Fi 6 technology, it offers speeds of up to 1.8 Gbps (1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz), ensuring optimal performance for browsing, streaming and remote working.
Equipped with a GPON port, it allows ultra-fast access to the fiber network, while the two Gigabit RJ45 ports (one with PoE 802.3af Out) offer maximum flexibility for connecting wired devices. Support for VoIP allows you to manage multiple accounts and advanced features, offering a higher call quality than traditional telephone lines.
Installation is simple and straightforward, thanks to One-Click Pairing and automatic adoption within the network. Integration with Omada SDN enables centralized remote management, while advanced features such as Omada Mesh and seamless roaming ensure smooth and stable coverage throughout the facility.
Main features:
- High-performance Dual-Band Wi-Fi 6 : Speed up to 1.8 Gbps (1201 Mbps on 5 GHz + 574 Mbps on 2.4 GHz) and faster and more stable connections, ideal for streaming, VoIP and smart working
- Advanced connectivity with multiple ports : 1× GPON port for ultra-fast fiber optic access and 2× Gigabit RJ45 ports for wired connections, one of which with PoE 802.3af Out to power other devices
- Multi-service support on a single fiber infrastructure : Wi-Fi, wired, VoIP, data and HD video integrated into a single device
- Advanced VoIP for high quality calls : One-Click Pairing and automatic adoption for fast network integration
- Centralized Management & Optimized Roaming : Omada SDN for centralized cloud management and remote control, Omada Mesh support to expand network without additional cabling and seamless roaming for smooth and continuous connection
Technical data sheet
| Model | EAP625GP-Wall |
| HARDWARE FEATURES | |
| Interface | 1x GPON Port 1x FXS Port 2x Gigabit RJ45 Ports (One supporting 802.3af PoE Out) |
| GPON Interface | Port Type: SC-APC Standards and Protocols: ITU-984.x, G.988, Class B+ Data Rate: 2,488 Gbps (Downstream); 1,244 Gbps (Upstream) Fiber Type: 9/125 um Single mode Max. Cable Length: 20km |
| Key | Reset, LED |
| Diet | 100–240V~ 50/60Hz, 0.5A |
| Energy consumption | 30.5W (PoE out full load 15W) |
| Weight | 350g |
| Dimensions (L x W x H) | 5.6 × 3.4 × 1.8 in (143 × 86 × 44.6 mm) |
| Antenna type | Internal Omni 2.4GHz: 2 x 4dBi 5GHz: 2 x 6.5dBi |
| Mounting type | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 50㎡(600ft²)** |
| Concurrent Clients | 120+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 1201Mbps 2.4GHz: Up to 574Mbps |
| Wireless functionality | 2×2 (2.4G & 5G) MU-MIMO HE80 (80MHz Bandwidth) OFDMA Mesh Seamless Roaming § Multiple SSIDs (16 SSIDs, 8 on each band) Enable/Disable SSID Broadcast Enable/Disable Wireless Radio Guest Network Automatic Channel Assignment Beamforming Rate Limit Band Steering Load Balance Airtime Fairness Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule and Statistics Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission power | THERE IS: <20dBm(2.4GHz,EIRP) <23 dbm="" 5="" ghz="" band1="" band2="" eirp="" br=""> <24dBm(5GHz, band3, EIRP) FCC: <21dbm 2="" 4ghz="" br=""> <21dbm 5ghz="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| Local and remote system logs | System Log |
| SSH | Yes |
| Web-based management | Yes |
| VLAN Management | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | EAP625GP-Wall Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Omada Complete Optical Network Solution
|
|
|
One fiber, more services
|
|
|
Seamless WiFi 6 mesh network
|
|
|
Five-step installation
|
|
|
Lifetime warranty The following product is covered by a lifetime warranty |
|
