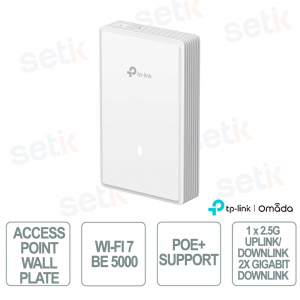

TP-Link Omada EAP725-Wall Access Point Wall-Plate WiFi BE5000 MU-MIMO for High Density Enterprise Networks
The TP-Link Omada EAP725-Wall is a dual-band Wi-Fi 7 access point designed for wall-mounted installations, ideal for environments such as hotels, offices and dormitories. It offers combined speeds of up to 3.6Gbps (2882Mbps on 5GHz and 688Mbps on 2.4GHz), ensuring fast and reliable connections. It is equipped with a 2.5Gbps PoE input port, a 2.5Gbps pass-through port and two RJ45 Gigabit downlink ports, making it easy to connect wired devices. Advanced features such as centralized management via Omada SDN, mesh support and seamless roaming ensure an efficient and easily manageable network.
BUSQUE INSTALADOR
BE5000 ACCESS POINT INDOOR WALL PLATE DUAL-BAND Wi-Fi MU-MIMO - TPLINK OMADA
The TP-Link Omada EAP725-Wall is a dual-band Wi-Fi 7 access point designed for wall installation, perfect for hotels, offices, dormitories and environments with multiple connected users. Thanks to the BE5000 Wi-Fi 7 technology, it offers combined speeds of up to 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, ensuring stable, fast and reliable connections.
Equipped with a 2.5Gbps PoE input port, a 2.5Gbps pass-through port and two Gigabit RJ45 downlink ports, it allows for seamless integration with wired devices such as VoIP phones, PCs and other network terminals. The 240MHz bandwidth and Multi-RUs technology improve network efficiency, allowing for multiple simultaneous transmissions without interference.
Integration with Omada SDN provides advanced centralized management, while seamless mesh and roaming functions ensure seamless and continuous Wi-Fi coverage throughout the building.
Main features:
- Wi-Fi 7 Dual-Band BE5000 : Speed up to 4324 Mbps on 5 GHz and 688 Mbps on 2.4 GHz, ultra-fast and stable connections for high-density user environments
- High-speed ports for maximum connectivity : 1× 2.5G PoE input port for power and data, 1× 2.5G pass-through port for direct connections and 2× Gigabit RJ45 downlink ports for wired devices such as PCs and VoIP phones
- Greater network efficiency : 240 MHz bandwidth for more simultaneous transmissions, Multi-RUs technology to reduce interference and improve stability
- Advanced management and optimal coverage : Centralized management with Omada SDN for remote and multi-site control, Mesh support for network expansion without additional cabling, and seamless roaming for smooth connection on the go
- Easy and discreet wall installation : Compact design ideal for hotels, offices and multi-room environments and PoE power for easy setup without the need for electrical outlets
Technical data sheet
| Model | EAP725-Wall |
| HARDWARE FEATURES | |
| Interface | Uplink: 1× 2.5G Ethernet Port Downlink: 1× 2.5G Ethernet Port + 2× Gigabit Ethernet Ports (The 2.5G port supports PoE pass-through. The PoE pass-through feature requires 802.3at/bt input. If the power consumption of the AP's downstream device exceeds 7W, the AP needs an 802.3bt input.) |
| Physical security lock | No |
| Key | Reset, LED |
| Diet | 802.3af/bt PoE |
| Energy consumption | 802.3bt: 17W (PoE Out support 15.4W) 802.3at: 17W (PoE Out support 7W) |
| Dimensions (L x W x H) | 143 × 86 × 40 mm (5.6 × 3.4 × 1.6 in) |
| Antenna | 4× Internal Antennas 2.4GHz: 2 x 4dBi 5GHz: 2 x 5dBi |
| Mounting type | Wall Plate Mounting |
| WIRELESS FEATURES | |
| Coverage | 50 ㎡ (600 ft²)** |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 4324Mbps 2.4GHz: Up to 688Mbps |
| Wireless functionality | 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming § Beamforming Rate Limit (Based on SSID/Client) Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission power | < 22dBm (2.4GHz) < 22 dBm (5 GHz, band 1 & band 2 & band 3 & band 4) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| Local and remote system logs | System Log |
| SSH | Yes |
| Web-based management | Yes |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | FCC, RoHS |
| Package Contents | BE5000 Wall Plate Wi-Fi 7 Access Point Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
WiFi 7: Swifter, Smoother, Stronger
|
|
|
Dedicated and complete private WiFi networks for each room
|
|
|
Optimized wired performance with 2.5G PoE ports
|
|
|
Enhanced network security
|
|
|
Seamless integration into Omada SDN Remotely manage your access points, switches, and routers across multiple locations, all from a single interface.
|
|
|
Lifetime warranty The following product is covered by a lifetime warranty |
|
