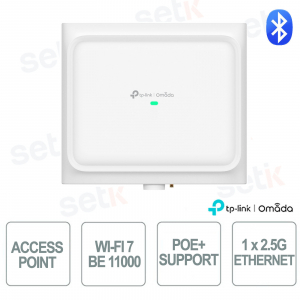

copy of TP-Link Omada EAP772 BE9300 Tri-Band WiFi 7 Access Point for High-Density Business Networks

copy of TP-Link Omada EAP772 BE9300 Tri-Band WiFi 7 Access Point for High-Density Business Networks
ANUNCIOS

TP-Link Omada EAP772 is a BE9300 Tri-Band WiFi 7 access point designed to provide fast, stable and reliable wireless connections in dense user environments, such as businesses, offices, hotels, restaurants and other organizations that require stable, scalable and easy-to-manage Wi-Fi connections. With combined speeds of up to 5760 Mbps and support for MU-MIMO and OFDMA technology, it ensures optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP772 is the ideal choice for implementing modern, reliable and scalable business networks.



referencia : EAP772-Outdoor

brand : OMADA

EAN: 1210002602280

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2024-06-19 10:38:25 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

EAP772 bunting

EAP772 CEILING ACCESS POINT TRI-BAND Wi-Fi 7 - TPLINK OMADA

BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point, equipped with 1×2.5G Ethernet ports. Offers speeds of 5760Mbps (6GHz) + 2880Mbps (5GHz) + 574Mbps (2.4GHz). Supports power supply via PoE 802.3at or DC 12V/2.5A. Includes 4 internal antennas and advanced features such as MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.


EAP773 fronte e retro

Main features:

  • Wi-Fi 7 BE9300 : Offers wireless speeds of up to 5760 Mbps on the 6 GHz band, 2880 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band.
  • Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 7 standard, quadruple network capacity, allowing more devices to connect simultaneously without interruption.
  • Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
  • PoE+ Support: Compatible with Power over Ethernet (802.3at standard).
  • Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
  • Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
  • Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
  • Ultra-slim design: With a diameter of 220 mm and a thickness of 32.5 mm, the EAP773 integrates seamlessly into any environment, offering installation flexibility.

Technical data sheet

Model EAP772
HARDWARE FEATURES
Interface 1× 2.5G Ethernet Port
Key Reset
Diet 802.3at PoE or 12V/2.5A DC
Notice: Due to the software update, the power supply has been updated from 802.3bt to 802.3at.
Energy consumption 25.44W (For PoE);
22.57W (For DC)
Dimensions (L x W x H) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna type 2.4GHz: 2× 4.0dBi
5GHz: 2× 5.0dBi
6GHz: 2×5dBi
Bluetooth 1 × 4.0dBi, Bluetooth 5.2
*Firmware update may be required.
Mounting type Ceiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Coverage 140㎡(1500 ft²) §
Concurrent Clients 380+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6GHz, 5GHz, and 2.4GHz
Signal rate 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†
Wireless functionality MLO
4K QAM
MU-MIMO
HE320
Mesh
BBS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS: 24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Wireless Security Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise,WPA3-Personal/Enterprise
Transmission power < 25dBm (2.4GHz)
< 25dBm (5GHz)
< 23dBm (6GHz)
MANAGEMENT
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
SSH Yes
Web-based management Yes
OTHER
Certification CE, FCC, RoHS, IC
Package Contents EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Notes: Power Adapter is NOT included.
Environment Operating Temperature: 0°C–40°C (32°F–104°F);
Storage Temperature: -40°C–70°C (-40°F–158°F);
Operating Humidity: 10%–90% non-condensing;
Storage Humidity: 5%–90% non-condensing

EAP772 icons

Wi-Fi 7: Swifter, Smoother, Stronger

Wi-Fi 7 Swifter Smoother Stronger

Wi-Fi 7 Increased Throughput

Wi-Fi 7 Increased Throughput

Software Defined Networking (SDN) with Cloud access

Software Defined Networking (SDN) with Cloud access

Enhanced security

Enhanced security

3 year warranty

The following product is covered by a 3 year warranty
