TP-Link Omada EAP215-Bridge KIT is a Long-Range Indoor/Outdoor Wireless designed to provide fast, stable and reliable wireless connections in high-density environments, such as offices, schools and shops. With combined speeds of up to 867 Mbps in 5Ghz and support for MU-MIMO technology, it guarantees optimized performance even when using multiple devices simultaneously. This device integrates perfectly with the Omada SDN ecosystem, allowing centralized cloud management for simple and flexible control of the network. Thanks to the pole-mount design, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP215-Bridge KIT is the ideal choice for implementing modern, reliable and scalable business networks. IP65 protection.
BUSQUE INSTALADOR
WIRELESS POINT TO POINT INDOOR/OUTDOOR 5GHZ MU-MIMO ANTENNA - TPLINK OMADA
Indoor and outdoor pole mount wireless antenna, equipped with 3 x Gigabit ethernet port. Offers connection speed up to 867 Mbps in 5Ghz. Transmission with a range of up to 5Km, supports power supply via 12V DC / 24V Passive PoE. Includes 2 internal polarized antennas and advanced features such as MU-MIMO, seamless roaming, Band Steering, Beamforming, load balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive configuration.
Main features:
- Wireless Connection: Offers wireless speeds up to 867Mbps in 5GHz .
- Perfect for crowded environments: Advanced MU-MIMO technologies, introduced with the Wi-Fi standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- Passive PoE Support: Compatible with Power over Ethernet 24V passive PoE power supply.
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a length of 60mm, a height of 224mm and a thickness of 79mm, the EAP215-Bridge KIT model integrates perfectly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP215-Bridge KIT |
| HARDWARE FEATURES | |
| Interface | 3x Gigabit Ethernet Ports |
| Key | Reset |
| Diet | 12V DC / 24V Passive PoE (Passive PoE adapter included.) |
| Energy consumption | 11.5W |
| Dimensions (L x W x H) | 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm) |
| Antenna type | Internal 2×2 Dual-polarized directional MIMO antennas 5GHz: 11.0dBi |
| Weatherproof Enclosure | IP65 |
| Mounting type | Pole mounting (Accessories included) |
| WIRELESS FEATURES | |
| Coverage | 5000m(16400ft) |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/ac |
| Frequency | 5GHz |
| Signal rate | 5GHz: Up to 867Mbps |
| Wireless functionality | Mesh MU-MIMO: 5G 2x2 MU-MIMO DL Load Balance Beamforming Seamless Roaming (802.11r) Airtime Fairness Multiple SSIDs:8 Wireless Statistics Wireless Schedule Reboot Schedule RADIUS Accounting MAC Authentication Static IP/Dynamic IP |
| Wireless Security | VLAN Access Control Rogue AP Detection Captive Portal Authentication Maximum number of MAC Filter: 4,000 WPA-Personal/Enterprise, WPA2-Personal/Enterprise |
| Transmission power | THERE IS: <23dbm 5="" ghz="" band="" 1="" 2="" eirp="" br=""> <30dbm 5ghz="" band3="" eirp="" br=""> FCC: <22dbm 5ghz="" band1="" 4="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller Omada Cloud-Based Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| SSH | Yes |
| Web-based management | Yes |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP215-Bridge KIT Passive PoE Adapter Power Cord Mounting Kits Installation Guide |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Long distance PtMP and Wi-Fi PtP transmission, perfect for multiple scenarios
|
|
|
|
|
|
Network Point to Point (PtP) or remote monitoring via camera
|
|
|
External PtP (Point-to-Point) Wi-Fi Connection
|
|
|
Point-to-multipoint (PtMP) connections with wider beamwidth for distributed cameras
|
|
|
Outdoor Wi-Fi PtMP (Point-to-Multipoint) for Surveillance
|
|
|
Simple setup and installation
|
|
|
Standalone mode
|
|
|
Compatible with Omada SDN
|
|
|
Designed for outdoors |
|
|

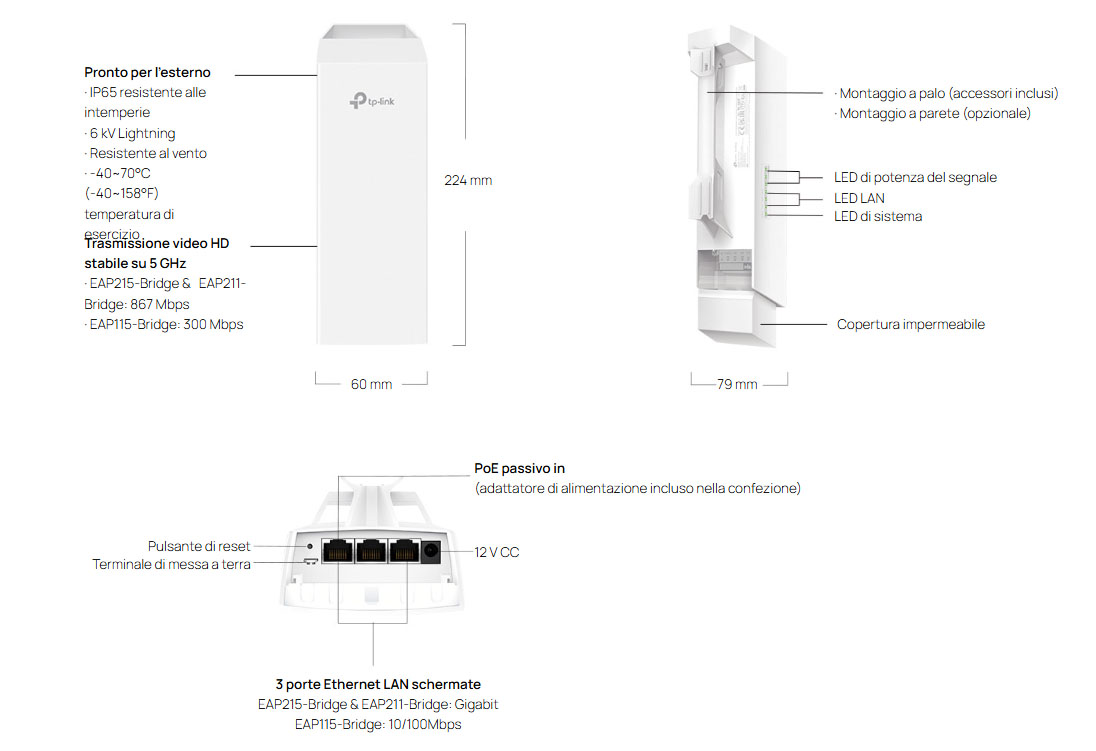

Dedicated hardware design |
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
