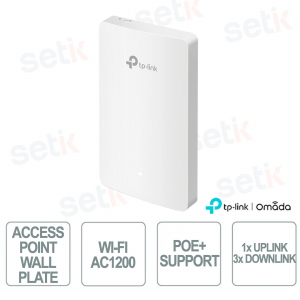

TP-Link Omada EAP235-Wall Access Point Wall-Plate WiFi AC1200 MU-MIMO for High Density Enterprise Networks
TP-Link Omada EAP235-Wall is an AC1200 WiFi Wall-Plate access point designed to provide fast, stable and reliable wireless connections in dense user environments, such as offices, schools and retail stores. With combined speeds of up to 300 Mbps in 2.4 GHz and 867 Mbps in 5 GHz and support for MU-MIMO and OFDMA technology, it ensures optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP235-Wall is the ideal choice for implementing modern, reliable and scalable business networks.
BUSQUE INSTALADOR
AC1200 ACCESS POINT INDOOR WALL PLATE DUAL-BAND Wi-Fi MU-MIMO - TPLINK OMADA
AC1200 Dual-Band Ceiling Mount Wi-Fi Access Point with 1 x 10/100/1000 Mbps Uplink Port and 3 x 10/100/1000 Downlink Ports. Offers speeds of 300 Mbps in 2.4GHz and 867 Mbps in 5GHz. Supports 802.3af/802.3at PoE. Includes 4 internal antennas and advanced features such as MU-MIMO, Seamless Roaming, Band Steering, Beamforming, Load Balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- AC1200 Wi-Fi : Offers wireless speeds of up to 300 Mbps in 2.4 GHz and 867 Mbps in 5 GHz.
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3af/802.3at PoE standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a length of 143mm, a height of 86mm and a thickness of 20mm, the EAP225 integrates perfectly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP235-Wall |
| HARDWARE FEATURES | |
| Interface | Uplink: 1× 10/100/1000 Mbps Ethernet Port Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.) |
| Physical security lock | Yes |
| Key | Reset |
| Diet | 802.3af/802.3at PoE |
| Energy consumption | 9.8 watts /24.4 watts (PoE Out Included) |
| Dimensions (L x W x H) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna type | 2 Dual Band Antennas 2.4GHz: 2 x 4dBi 5GHz: 2 x 4dBi |
| Mounting type | Wall Plate Mounting |
| WIRELESS FEATURES | |
| Coverage | 25㎡(300 ft²) |
| Wireless Client Capacity | 200+ |
| Concurrent Clients | 200+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/ac |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 867Mbps 2.4GHz: Up to 300Mbps |
| Wireless functionality | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
| Transmission power | THERE IS: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <21dbm 2="" 4ghz="" br=""> <21dbm 5ghz="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c |
| Local and remote system logs | Local/Remote Syslog |
| SSH | Yes |
| Web-based management | HTTP/HTTPS |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | CE, FCC, RoHS EN60601-1-2 (MEDICAL EMC) |
| Package Contents | Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Wi-Fi coverage in every environment
|
|
|
Dual-Band Wi-Fi and MU-MIMO Technology: Speed and Efficiency Thanks to the latest generation 802.11ac Wave 2 MU-MIMO technology, the EAP325-Wall Access Points ensure superior wireless performance and high coverage, with speeds of up to 1200 Mbps to multiple devices simultaneously.
|
|
|
Compact and elegant design
|
|
|
Flexible installation EAP235-Wall features 802.3af/802.3at PoE support which allows the device to be installed and powered via network cable.
|
|
|
Quick and easy installation EAP235-Wall can be mounted on the wall using a 503 bracket or any electrical flush box. The unique design simplifies placement and only requires an Ethernet cable connected to a PoE switch.
|
|
|
Integrated switch with PoE Passthrough EAP235-Wall integrates a managed switch with 3 Gigabit LAN ports for connecting additional devices. One of the downlink ports features 802.3af/802.3at PoE Passthrough, allowing direct powering of devices such as IP phones or cameras.
|
|
|
Omada SDN - Software Defined Networking Omada SDN is the new professional solution from TP-Link that integrates access points, switches and gateways managed by a single centralized Hybrid-Cloud or Full-Cloud controller, ensuring maximum efficiency, reliability and network security for your business.
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
