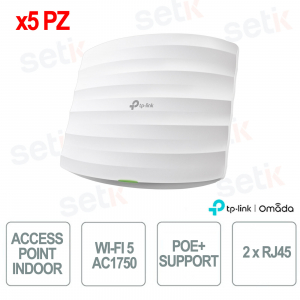

TP-Link Omada EAP245(5-Pack) 5pcs Indoor WiFi 5 AC1750 MU-MIMO Access Point for High Density Business Networks
TP-Link Omada EAP245(5-Pack) is a 5-pack WiFi 5 AC1750 indoor access point designed to provide fast, stable and reliable wireless connections in dense user environments, such as offices, schools and retail stores. With combined speeds of up to 1.75 Gbps and support for MU-MIMO and OFDMA technology, it ensures optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP245(5-Pack) is the ideal choice for implementing modern, reliable and scalable business networks.
BUSQUE INSTALADOR
AC1750 INDOOR CEILING ACCESS POINT DUAL-BAND Wi-Fi 5 MU-MIMO - TPLINK OMADA
AC1750 Dual-Band Wi-Fi 5 Access Point, 5 Pack, Ceiling Mount, Equipped with 2 x Gigabit Port (RJ-45). Offers speed of 1.75 Gbps (450 Mbps in 2.4 GHz and 1300 Mbps in 5 GHz). Supports power supply via PoE 802.3at or 48V Passive PoE. Includes 4 internal antennas and advanced features such as MU-MIMO, seamless roaming, Band Steering, Beamforming, load balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive configuration.
Main features:
- Wi-Fi 5 AC1750 : Offers wireless speeds up to 1770 Mbps (470 Mbps in 2.4 GHz and 1300 Mbps in 5 GHz) .
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 5 standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3at standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a length of 205.5mm, a height of 181.5mm and a thickness of 37.1mm, the EAP265 HD model integrates perfectly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP245 |
| HARDWARE FEATURES | |
| Interface | 2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3af/at PoE and Passive PoE) |
| Physical security lock | Yes |
| Key | Reset |
| Diet | 802.3at PoE 48V Passive PoE |
| Energy consumption | 12.3 W |
| Dimensions (L x W x H) | 205.5 × 181.5 × 37.1 mm |
| Antenna type | Internal Omni 2.4GHz: 3 × 3.5dBi 5GHz: 3 × 4dBi |
| Mounting type | Ceiling /Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 140㎡(1500 ft²) |
| Wireless Client Capacity | 220+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 1300Mbps 2.4GHz: Up to 470Mbps |
| Wireless functionality | Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise WPA-PSK / WPA2-PSK |
| Transmission power | THERE IS: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <24dbm 2="" 4ghz="" br=""> <24dbm 5ghz="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c |
| Local and remote system logs | Local/Remote Syslog |
| SSH | Yes |
| Web-based management | HTTP/HTTPS |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | CE, FCC, RoHS EN60601-1-2 (MEDICAL EMC) |
| Package Contents | Indoor Access Point MU-MIMO Wi-Fi AC1750 EAP245 Passive PoE power supply (available in 1-unit pack only) Power Cord Mounting Kits Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Superior Wi-Fi performance with minimal management costs
|
|
|
Seamless Roaming The 802.11k/802.11v protocols allow clients to switch from one access point to the next by evaluating the best signal quality and without interrupting the connection. The EAP series is the ideal solution for time-sensitive applications such as VoIP or video streaming.
|
|
|
Omada SDN - Software Defined Networking Omada SDN is TP-Link's Software Defined solution that offers wireless and wired solutions ideal for hotels, healthcare facilities, education, businesses, public spaces and more. Omada SDN integrates a full range of devices - Access Points, Switches, Gateways and Hardware Controllers - into a highly scalable solution with Full-Cloud and Hybrid-Cloud management.
|
|
|
Dual-mode PoE power supply
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
