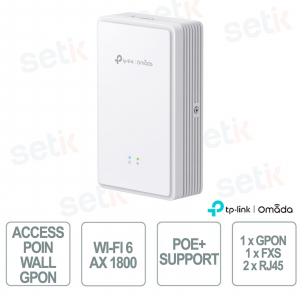

TP-Link Omada EAP615GP-Wall Access Point Wall GPON WiFi 6 AX1800 for High Density Enterprise Networks
TP-Link Omada EAP615GP-Wall is a Waal GPON WiFi 6 AX1800 access point designed to provide fast, stable and reliable wireless connections in dense user environments, such as offices, schools and retail stores. With combined speeds of up to 1.8 Gbps and support for MU-MIMO and OFDMA technology, it ensures optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP615GP-Wall is the ideal choice for implementing modern, reliable and scalable business networks.
BUSQUE INSTALADOR
PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
AX1800 WALL ACCESS POINT DUAL-BAND Wi-Fi 6 - TPLINK OMADA
AX1800 Dual-Band Wi-Fi 6 Wall Mount Access Point, featuring 1 × GPON Port, 1x FXS Port and 2x Gigabit RJ45 Ports. Offers speed of 1.8 Gbps (574 Mbps in 2.4 GHz and 1201 Mbps in 5 GHz). Supports 100–240V~ 50/60Hz, 0.5A power supply. Includes 2 internal antennas and advanced features such as MU-MIMO, seamless roaming, Band Steering, Beamforming, load balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- Wi-Fi 6 AX1800: Offers wireless speeds up to 1.8G bps 1775Mbps (574Mbps in 2.4GHz and 1201Mbps in 5GHz) .
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 6 standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a height of 143mm, length of 86mm and a thickness of 37.6mm, the EAP615GP-Wall model integrates seamlessly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP615GP-Wall |
| HARDWARE FEATURES | |
| Interface | 1x GPON Port 1x FXS Port 2x Gigabit RJ45 Ports |
| GPON Interface | Port Type: SC-APC Standards and Protocols: ITU-984.x, G.988, Class B+ Data Rate: 2,488 Gbps (Downstream); 1,244 Gbps (Upstream) Fiber Type: 9/125 um Single mode Max. Cable Length: 20km |
| Key | Reset LED |
| Diet | 100–240V~ 50/60Hz, 0.5A |
| Energy consumption | 12.2W |
| Weight | 320g |
| Dimensions (L x W x H) | 5.6 × 3.4 × 1.5 in (143 × 86 × 37.6 mm) |
| Antenna type | 2 Dual Band Antennas 2.4GHz: 2×3dBi 5GHz: 2×6.5dBi |
| Mounting type | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 50㎡(600 ft²) |
| Wireless Client Capacity | 120+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 1201Mbps 2.4GHz: Up to 574Mbps |
| Wireless functionality | 2×2 (2.4G & 5G) MU-MIMO‡ HE80 (80MHz Bandwidth)‡ OFDMA‡ Seamless Roaming § Multiple SSIDs (16 SSIDs, 8 on each band) Enable/Disable SSID Broadcastt Enable/Disable Wireless Radio Guest Network Automatic Channel Assignment Beamforming Rate Limit Band Steering Load Balance Airtime Fairness Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule and Statistics Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission power | THERE IS: <20dBm(2.4GHz,EIRP) <23dBm(5GHz, Band1, EIRP) <24dBm(5GHz, band3, EIRP) FCC: < 21dBm (2.4GHz) < 21 dBm (5GHz, Band1) |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| Local and remote system logs | System Log |
| SSH | Yes |
| Web-based management | Yes |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP615GP-Wall Wall Mounting Kit Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Omada Optical Network Omada Optical Network Solution provides enterprise-grade gigabit passive optical network. It seamlessly integrates essential components such as Omada switches, routers, OLTs (Optical Line Terminals) and ONUs (Optical Network Units), ideal for point-to-multipoint (P2MP) environments such as hotels and multi-unit residential complexes (MDUs).
|
|
|
|
|
|
One fiber, many services Connect a fiber optic cable to the EAP610GP-Wall to connect cameras, PCs, TVs and an IP phone, so you can transmit data, voice, wired and wireless Internet, HD video and VoIP services.
|
|
|
Seamless Wi-Fi 6 Mesh Network Leverage GPON Wi-Fi 6 technology for a robust and seamless networking experience, delivering speeds of up to 1.8Gbps.
|
|
|
5-step installation
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
