TP-Link Omada EAP610GP-Desktop Desktop Access Point WiFi 6 AX1800 Slim Design for High Density Business Networks
TP-Link Omada EAP610GP-Desktop is an indoor WiFi 6 AX1800 access point designed to provide fast, stable and reliable wireless connections in dense user environments, such as offices, schools and retail stores. With combined speeds of up to 574 Mbps at 2.4Ghz and 1201 Mbps in 5Ghz and support for MU-MIMO and OFDMA technology, it guarantees optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible control of the network. Thanks to the ceiling-mount design and the slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. The TP-Link Omada EAP610GP-Desktop is the ideal choice for implementing modern, reliable and scalable business networks.
BUSQUE INSTALADOR
PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
AX1800 INDOOR CEILING ACCESS POINT DUAL-BAND Wi-Fi 6 - TPLINK OMADA
AX1800 Dual-Band Ceiling Mount Wi-Fi 6 Access Point with 1 x GPON Port, 1 x FXS Port & 4 x Gigabit RJ45 Ports. Offers speeds of 574Mbps in 2.4Ghz and 1201Mbps in 5GHz. Supports 53.5V/0.81A DC power supply. Includes 4 internal antennas and advanced features such as MU-MIMO, seamless roaming, Band Steering, Beamforming, load balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- Wi-Fi 6 AX1800: Offers wireless speeds up to 574Mbps in 2.4Ghz and 1201Mbps in 5GHz .
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 6 standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3at standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a height of 175mm, a width of 140mm and a thickness of 33mm, the EAP613 integrates perfectly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP610GP Desktop |
| HARDWARE FEATURES | |
| Interface | 1x GPON Port 1x FXS Port 4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out) |
| GPON Interface | Port Type: SC-APC Standards and Protocols: ITU-984.x, G.988, Class B+ Data Rate: 2,488 Gbps (Downstream); 1,244 Gbps (Upstream) Fiber Type: 9/125 um Single mode Max. Cable Length: 20km |
| Key | Reset LED |
| Diet | 53.5V/0.81A DC |
| Energy consumption | 17.3W (PoE Out Off) |
| Weight | 492g |
| Dimensions (L x W x H) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenna type | Internal Omni 2.4GHz: 2×5dBi 5GHz: 2× 4.5dBi |
| Mounting type | Desktop / Wall mouting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 140㎡(1500ft²) |
| Wireless Client Capacity | 120+* |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 1201Mbps 2.4GHz: Up to 574Mbps |
| Wireless functionality | 2×2 (2.4G & 5G) MU-MIMO‡ HE80 (80MHz Bandwidth)‡ OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable SSID Broadcast Enable/Disable Wireless Radio Guest Network Automatic Channel Assignment Beamforming Rate Limit Reboot Schedule Airtime Fairness Band Steering Load Balance Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule and Statistics Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission power | THERE IS: <20dBm(2.4GHz,EIRP) <23 dbm="" 5="" ghz="" band1="" band2="" eirp="" br=""> <27dBm(5GHz, band3, EIRP) FCC: <25dbm 2="" 4ghz="" br=""> <25dbm 5ghz="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| Local and remote system logs | System Log |
| SSH | Yes |
| Web-based management | Yes |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | EAP610GP-Desktop Desktop/Wall Mount Kit Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Omada Optical Network Omada Optical Network Solution provides enterprise-grade gigabit passive optical network. It seamlessly integrates essential components such as Omada switches, routers, OLTs (Optical Line Terminals) and ONUs (Optical Network Units), ideal for point-to-multipoint (P2MP) environments such as hotels and multi-unit residential complexes (MDUs).
|
|
|
|
|
|
One fiber, many services Connect a fiber optic cable to the EAP610GP-Desktop to connect cameras, PCs, TVs and an IP phone, so you can transmit data, voice, wired and wireless Internet, HD video and VoIP services.
|
|
|

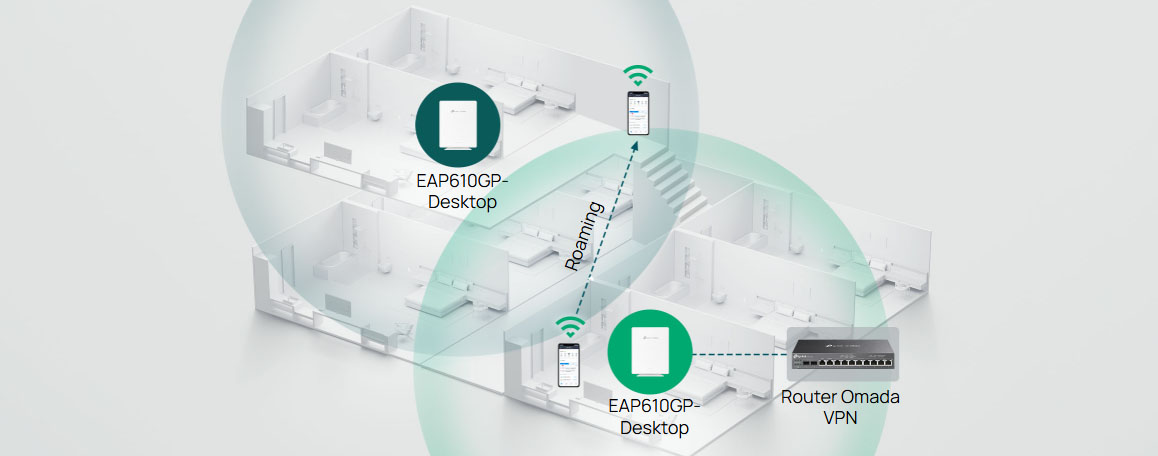

Seamless Wi-Fi 6 Mesh Network
|
|
|
Flexible Desktop/Wall Mounting Installation
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
