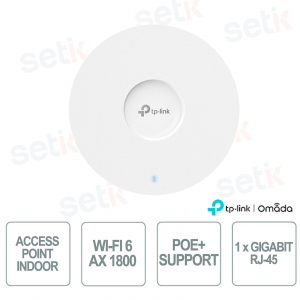

TP-Link Omada EAP613 Indoor WiFi 6 AX1800 Access Point Slim Design for High Density Business Networks
TP-Link Omada EAP613 is an indoor WiFi 6 AX1800 access point designed to provide fast, stable and reliable wireless connections in dense user environments, such as offices, schools and retail stores. With combined speeds of up to 574 Mbps at 2.4Ghz and 1201 Mbps in 5Ghz and support for MU-MIMO and OFDMA technology, it guarantees optimized performance even when using multiple devices simultaneously. This device integrates perfectly with the Omada SDN ecosystem, allowing centralized cloud management for simple and flexible control of the network. Thanks to the ceiling-mount design and the slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP613 is the ideal choice for implementing modern, reliable and scalable business networks.
BUSQUE INSTALADOR
PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
AX1800 INDOOR CEILING ACCESS POINT DUAL-BAND Wi-Fi 6 - TPLINK OMADA
AX1800 Dual-Band Ceiling Mount Wi-Fi 6 Access Point with 1 x Gigabit Port (RJ-45). Offers speeds of 574Mbps in 2.4Ghz and 1201Mbps in 5GHz. Supports power supply via PoE 802.3at, 12V DC/ 1A DC or 48V passive PoE. Includes 4 internal antennas and advanced features such as MU-MIMO, seamless roaming, Band Steering, Beamforming, load balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- Wi-Fi 6 AX1800: Offers wireless speeds up to 574Mbps in 2.4Ghz and 1201Mbps in 5GHz .
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 6 standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3at standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a diameter of 160 mm and a thickness of 33.6 mm, the EAP613 fits perfectly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP613 |
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port |
| Key | Reset |
| Diet | 802.3at PoE 48V Passive PoE 12 V / 1 A DC (Power Adapter IS NOT included) |
| Energy consumption | EU: 11.0W (For PoE) US: 9.9W (For DC) |
| Dimensions (L x W x H) | 160 × 160 × 33.6 mm |
| Antenna type | Internal Omni 2.4GHz: 2×4dBi 5GHz: 2×5dBi |
| Mounting type | Ceiling /Wall Mounting (Kits included) Junction Box Mounting |
| WIRELESS FEATURES | |
| Coverage | 115㎡(1250 ft²) |
| Wireless Client Capacity | 250+** |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 1201Mbps 2.4GHz: Up to 574Mbps |
| Wireless functionality | 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO HE160 (160MHz Bandwidth) Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission power | THERE IS: <20dBm(2.4GHz,EIRP) <23 dbm="" 5="" ghz="" band1="" 2="" eirp="" 25="" band3="" br=""> FCC: <25dbm 2="" 4ghz="" br=""> <25dbm 5ghz="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes, through OC300 OC200 Omada Software Controller Omada Cloud-Based Controller |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| Local and remote system logs | Local/Remote Syslog |
| SSH | Yes |
| Web-based management | HTTP/HTTPS |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP613 Installation Guide Ceiling/Wall Mounting Kits Note: DC adapter is not included in the package, and is sold separately. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Next-level Wi-Fi 6 speed The EAP613 reaches a combined Wi-Fi speed of up to 1775 Mbps (up to 574 Mbps in 2.4 GHz and 1201 Mbps in 5 GHz) †. The speed is significantly increased over the previous standard thanks to technologies such as 1024 QAM and Long OFDM Symbol, for a smooth and lag-free connection experience.
|
|
|
Centralized Cloud Management with Omada SDN EAP613 is an integrated product in the Omada Software Defined Networking (SDN) solution that, through a controller, allows you to manage and monitor the entire network from the intuitive Cloud management platform, even remotely.
|
|
|
Seamless Roaming The 802.11k/802.11v protocols allow clients to switch from one Access Point to the next by evaluating the best signal quality and without experiencing connection interruptions, the ideal solution for time-sensitive applications such as VoIP or video streaming.
|
|
|
Greater safety and efficiency
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
