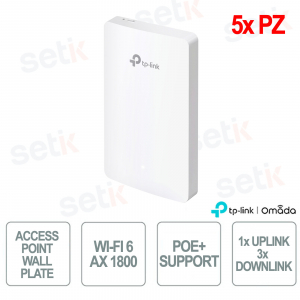

TP-Link Omada EAP615-Wall 5-Pack WiFi 6 AX1800 Wall-Plate Access Point for High-Density Business Networks
TP-Link Omada EAP615-Wall(5-pack) 5 Pieces is a Wall-Plate WiFi 6 AX1800 access point designed to provide fast, stable and reliable wireless connections in high-density environments, such as offices, schools and retail stores. With combined speeds of up to 1775 Mbps and support for MU-MIMO and OFDMA technology, it guarantees optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. The TP-Link Omada EAP615-Wall(5-pack) is the ideal choice for implementing modern, reliable and scalable business networks.
BUSQUE INSTALADOR
PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
AX1800 CEILING ACCESS POINT DUAL-BAND Wi-Fi 6 - 5 PIECES - TPLINK OMADA
AX1800 Ceiling Mount Dual-Band Wi-Fi 6 Access Point, featuring 1× 10/100/1000 Mbps Ethernet Uplink and 3× 10/100/1000 Mbps Ethernet Downlink. Offers speeds of 1775Mbps (574 Mbps in 2.4GHz and 1201 Mbps in 5GHz). Supports 802.3at PoE power supply. Includes 2 internal antennas and advanced features such as MU-MIMO, seamless roaming, Band Steering, Beamforming, load balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup. 5 Pieces
Main features:
- Wi-Fi 6 AX1800: Offers wireless speeds up to 2976Mbps 1775Mbps (574Mbps in 2.4GHz and 1201Mbps in 5GHz) .
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 6 standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3at standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a height of 143 mm, length of 86 mm and a thickness of 20 mm, the EAP615-Wall model integrates perfectly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP615-Wall |
| HARDWARE FEATURES | |
| Interface | Uplink: 1× 10/100/1000 Mbps Ethernet Port Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.) |
| Physical security lock | Yes |
| Key | Reset |
| Diet | 802.3at PoE |
| Energy consumption | EU: 10W (802.3at PoE, PoE Out off) US: 11.5W (802.3at PoE, PoE Out off) |
| Dimensions (L x W x H) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna type | 2 Dual Band Antennas 2.4GHz: 2×3dBi 5GHz: 2×4dBi |
| Mounting type | Wall Plate Mounting |
| WIRELESS FEATURES | |
| Coverage | 50㎡(600 ft²) |
| Wireless Client Capacity | 120+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 1201Mbps 2.4GHz: Up to 574Mbps |
| Wireless functionality | 16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Seamless Roaming(802.11k/v/r)§§ Beamforming Rate Limit Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission power | THERE IS: <20dBm(2.4GHz,EIRP) <23dBm(5GHz, Band1, EIRP) FCC: < 21dBm (2.4GHz) < 21 dBm (5GHz, Band1) < 21dBm（5Ghz, Band4 |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| Local and remote system logs | Local/Remote Syslog |
| SSH | Yes |
| Web-based management | HTTP/HTTPS |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall Installation Guide Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
High-efficiency Wi-Fi 6 1024 QAM and Long OFDM Symbol technologies increase network capacity up to 4 times compared to the previous Wi-Fi 5 (802.11ac) standard. Ideal for high-density scenarios and for business networks with many wireless devices connected simultaneously.
|
|
|
Unprecedented connection experiences Next-generation Wi-Fi 6 technologies ensure high network efficiency and lower latency.
|
|
|
Omada SDN - Software Defined Networking Omada SDN is TP-Link's Software Defined solution that offers wireless and wired solutions ideal for hospitality, healthcare, education, business, public spaces and more. Omada SDN integrates a full range of devices - Access Point, Switch, Gateway and Hardware Controller - into a highly scalable network solution with Full-Cloud and Hybrid-Cloud management.
|
|
|
Safety first Protect your network from brute-force attacks and snooping with WPA3 standard technologies, portal authentication, and separate guest networks.
|
|
|
Maximum flexibility thanks to PoE technology EAP615-Wall features 802.3af/802.3at PoE support which allows the device to be installed and powered via network cable.
|
|
|
Gigabit wired connectivity and PoE Passthrough switches EAP615-Wall integrates a managed switch with 3 Gigabit LAN ports for connecting additional devices. One of the downlink ports features 802.3af/802.3at PoE Passthrough and allows direct powering of devices such as IP phones or cameras.
|
|
|
Quick installation EAP615-Wall can be mounted on the wall using a 503 bracket or any electrical flush box. The unique design simplifies placement and only requires an Ethernet cable connected to a PoE switch.
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
