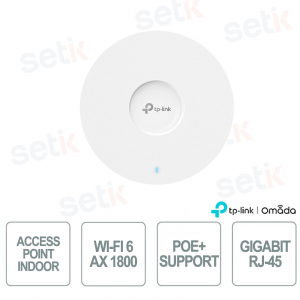

TP-Link Omada EAP620 HD Access Point Indoor WiFi 6 AX1800 Slim Design V3 for High Density Business Networks
TP-Link Omada EAP620 HD is an indoor WiFi 6 AX1800 access point designed to provide fast, stable and reliable wireless connections in dense user environments, such as offices, schools and retail stores. With combined speeds of up to 1775 Mbps and support for MU-MIMO and OFDMA technology, it ensures optimized performance even when using multiple devices simultaneously. This device integrates seamlessly with the Omada SDN ecosystem, enabling centralized cloud management for simple and flexible network control. With its ceiling-mount design and slim profile, it easily fits into any environment, maintaining a discreet aesthetic. It supports PoE power supply, simplifying installation and reducing costs. TP-Link Omada EAP620 HD is the ideal choice for implementing modern, reliable and scalable business networks.
BUSQUE INSTALADOR
PRODOTTO NO DISPONIBLE, DE DESCUENTO AHORA 3%
AX1800 INDOOR CEILING ACCESS POINT DUAL-BAND Wi-Fi 6 - V3 - TPLINK OMADA
AX1800 Dual-Band Ceiling Mount Wi-Fi 6 Access Point with 1 x Gigabit Port (RJ-45). Offers speeds of 1775Mbps (574Mbps in 2.4GHz and 1201Mbps in 5GHz). Supports power supply via PoE 802.3at or DC 12V/1.5A. Includes 4 internal antennas and advanced features such as MU-MIMO, seamless roaming, Band Steering, Beamforming, load balancing, Airtime Fairness. Centrally manageable via Omada SDN Controller or via Omada App for easy and intuitive setup.
Main features:
- Wi-Fi 6 AX1800: Offers wireless speeds up to 1775 Mbps (574 Mbps in 2.4 GHz and 1201 Mbps in 5 GHz) .
- Perfect for crowded environments: Advanced MU-MIMO and OFDMA technologies, introduced with the Wi-Fi 6 standard, quadruple the network capacity, allowing more devices to connect simultaneously without interruption.
- Seamless Roaming: Ideal for streaming and other real-time applications, it allows you to move between access points without losing performance.
- PoE+ Support: Compatible with Power over Ethernet (802.3at standard).
- Guest Network: Includes a Captive Portal for quick and secure access, with multiple authentication modes available.
- Omada SDN Integration: Omada Software Defined Networking platform enables centralized network management, with remote access via the cloud.
- Omada App: Simple and intuitive network management via Android and iOS devices, accessible anywhere thanks to the cloud connection.
- Ultra-slim design: With a diameter of 160 mm and a thickness of 33.6 mm, the EAP653 integrates seamlessly into any environment, offering installation flexibility.
Technical data sheet
| Model | EAP620 HD |
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Key | Reset |
| Diet | 802.3at PoE 48V Passive PoE 12V / 1.5A DC |
| Energy consumption | EU: 14.4W (For PoE); 13.1W (for DC) US: 14.9W (For PoE); 13.4W (for DC) |
| Dimensions (L x W x H) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna type | Internal Omni 2.4GHz: 2×4dBi 5GHz: 2×5dBi |
| Mounting type | Ceiling /Wall Mounting (Kits included) Junction Box Mounting |
| WIRELESS FEATURES | |
| Coverage | 140㎡(1500 ft²) |
| Wireless Client Capacity | 1,020+** |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4GHz and 5GHz |
| Signal rate | 5GHz: Up to 1201Mbps 2.4GHz: Up to 574Mbps |
| Wireless functionality | 1024-QAM 4× Longer OFDM Symbol OFDMA Multiple SSIDs (Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO HE160 (160MHz Bandwidth) Seamless Roaming § Omada Mesh§ Band Steering Load Balance Airtime Fairness Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication§ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission power | THERE IS: <20dBm(2.4GHz,EIRP) <23dBm(5GHz band1/2, EIRP) <25dbm 5ghz="" band3="" br=""> FCC: <25dbm 2="" 4ghz="" br=""> <25dbm 5ghz="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
| Cloud Access | Yes, through OC300 OC200 Omada Software Controller Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) |
| Email Alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| Local and remote system logs | Local/Remote Syslog |
| SSH | Yes |
| Web-based management | HTTP/HTTPS |
| L3 Management | Yes |
| Multisite Management | Yes |
| VLAN Management | Yes |
| Zero Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) |
| OTHER | |
| Certification | CE, FCC, RoHS |
| Package Contents | EAP620 HD Installation Guide Ceiling/Wall Mounting Kits Note: DC adapter is not included in the package, and is sold separately. |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | Operating Temperature: 0°C–40°C (32°F–104°F); Storage Temperature: -40°C–70°C (-40°F–158°F); Operating Humidity: 10%–90% non-condensing; Storage Humidity: 5%–90% non-condensing |
|
Capacity increased up to 4x
|
|
|
|
|
|
Multi-stream Wi-Fi for unprecedented speeds With 1024 QAM and Long OFDM Symbol technologies, the EAP620 HD is capable of achieving combined Dual Band speeds of up to 1,775Mbps (1,201Mbps on 5GHz and 574Mbps on 2.4GHz)†. With 4 streams, multi-user throughput is significantly increased so you can run multiple applications simultaneously.
|
|
|
Omada SDN Integrated Products Omada SDN is TP-Link's Software Defined solution that offers wireless and wired solutions ideal for hotels, healthcare facilities, education, businesses, public spaces and more. Omada SDN integrates a full range of devices - Access Points, Switches, Gateways and Hardware Controllers - into a highly scalable solution with Full-Cloud and Hybrid-Cloud management.
|
|
|
Auto Channel Selection and Power Adjustment for optimized performance Adjust the channel settings and transmission power of nearby Access Points within the same network to provide top-notch wireless performance and dramatically reduce Wi-Fi interference.
|
|
|
Flexible installation with Omada Mesh Quick connection without wiring Mesh technology allows you to connect Access Points to each other via Wi-Fi, without the need for an Ethernet connection. Ideal for covering remote areas without having to intervene on the available wired infrastructure.
Optimized performance The system automatically recognizes the best data transmission path between the EAPs and the Router, ensuring the best performance for connected devices even in the event of a malfunction of one of the Access Points.
|
|
|
Seamless Roaming The 802.11k/802.11v protocols allow clients to switch from one Access Point to the next by evaluating the best signal quality and without experiencing connection interruptions, the ideal solution for time-sensitive applications such as VoIP or video streaming.
|
|
|
Greater safety and efficiency
|
|
|
3 year warranty The following product is covered by a 3 year warranty |
|
