DS-K2M062 - HIKVISION - Secure door control unit, capable of communicating with access terminals through S485 protocols - Door contact input - Exit Button - Closing control.
BUSQUE INSTALADOR

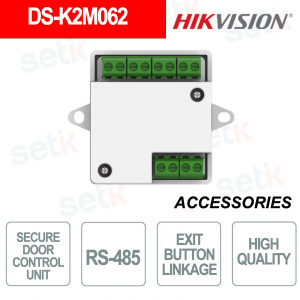

DS-K2M062 | HIKVISION | SECURE DOOR CONTROL UNIT - RS485
HIKVISION Secure Door Control Unit - DS-K2M062 is a kind of device that communicates with access terminals with RS485 protocols for actions such as closing and opening doors - Exit Button - Closing Control - Power Indicator - 12 VDC Power Supply.
MAIN FEATURES:
- Model: DS-K2M062
- Communication interface: RS-485
- 1x Closure Control
- 1x Exit Button
- 1x Door contact input
- Power indicator
- Power consumption: 3W
- Power supply: 12VDC
- Operating temperature: -30° C to 60° C
- Dimensions: 53.95mm × 43.5mm × 15.5mm
- Relative humidity: 0% to 90%
Technical data sheet
| DS-K2M061 | |
|
Interface |
|
|
Lock control |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
RS-485 |
1 |
|
General |
|
|
Power supply |
12VDC |
|
Power consumption |
3 W |
|
Working temperature |
-30° C to 60° C (-22° F to 140° F) |
|
Working humidity |
0% to 90% |
|
Dimensions |
53.95mm × 43.5mm × 15.5mm |
Further details
Download
Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
