NVR Hyundai 8 Channel PoE IP 32MP NVR Recorder

NVR Hyundai 8 Channel PoE IP 32MP NVR Recorder
nuevo

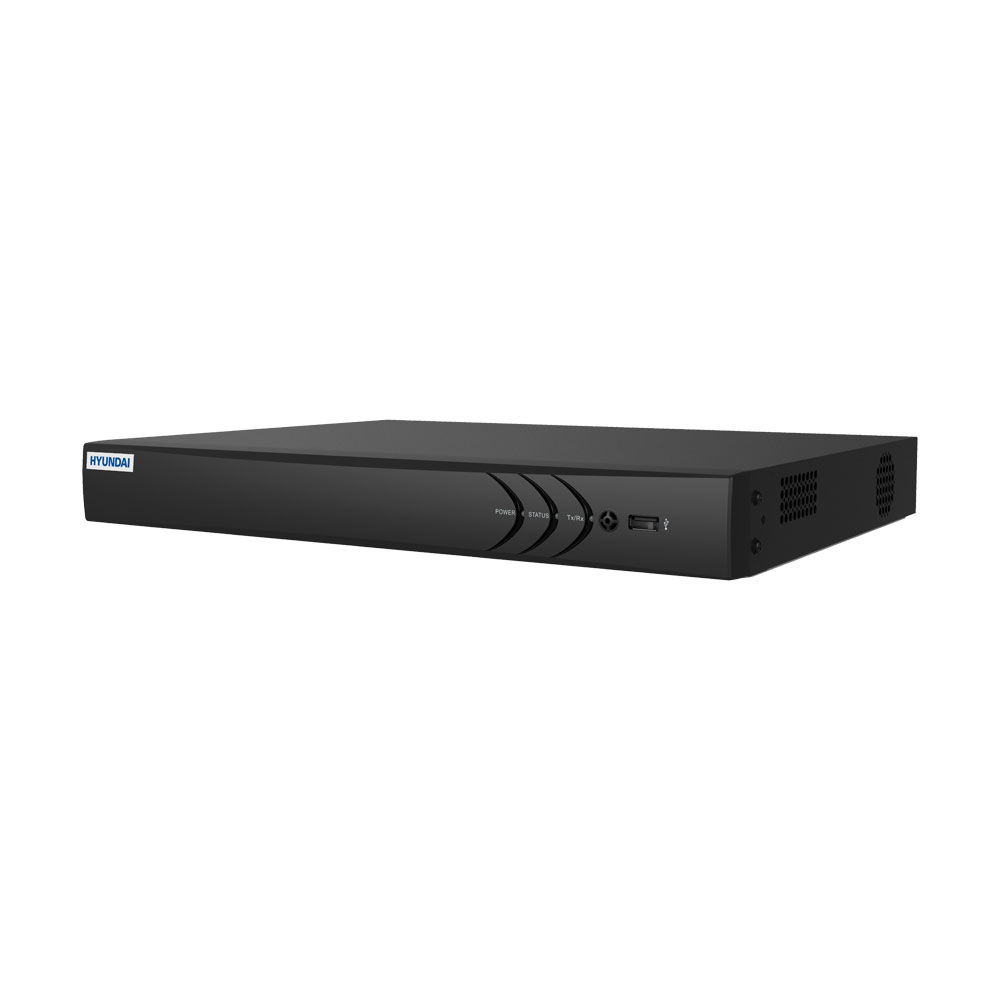

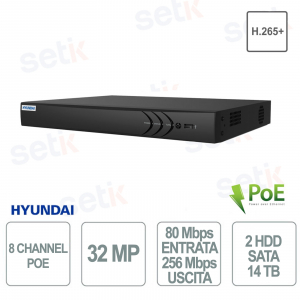

NVR Hyundai HYU-1138 8 Channel PoE IP NVR with resolution up to 32 MP 32 Megapixel , input bandwidth 80 Mbps and output 256 Mbps, H.265/H.265+ , 1x HDMI (4K) , 1 VGA (1080P) -1 BNC - 1 USB 2.0, 1 USB 3.0 - Audio and Alarm - P2P - max 2 HDD up to 14 TB (Not Included) - Hyundai Security



referencia : HYU-1138

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Hyundai Security

HYUNDAI NVR 8 CHANNEL POE IP ONVIF® 8K UHD 32 MP RECORDER - 80 MBPS INPUT 256 MBPS OUTPUT

Hyundai Security
NVR 8 Channel PoE IP ONVIF® - Hyundai 8K Resolution 32 MP 32 megapixel - 80 Mbps Input 256 Mbps Output Compression up to H.265+ - 1 HDMI output (4K), 1 VGA output (1080P) and 1 BNC video output - 1 USB 2.0, 1 USB 3.0, 2 RJ45 ports (10/100/1000M) - Cloud P2P - 2 Hard Disk SATA 3.5" (Max 14TB - not included) - 4 inputs / 1 alarm output

Product details

HYU-1138
Standard ONVIF® Onvif is the most important standard in the IP world.
Being Onvif guarantees a wide range of IP devices compatible with each other (DVR/cameras).

This NVR is ONVIF® compatible

H265+ Video Compressione
This NVR supports compression standards up to H.265+

H.265+: What are the benefits?

- Save up to 90% on bandwidth

- Reduce storage space

- Longer recording times on analog surveillance systems with the same storage space.

Standard di Video Compressione H.265+

Questo NVR presenta 8 canali

8 PoE Channels
Recording up to 32 Megapixels!

Questo dvr supporta la funzione Cloud
  • Possibility of management and viewing from Smartphone "P2P installation", via Hyundai HYU-connect application (iOs and Android).
applicazione hyundai hyu-connect

  • Network configuration via free cloud (www.hdcvi.hyundai-security.es - Manageable by App. HYUVMS).

applicazione hyuvms

HD Hard Disk

Supports 2x SATA Audio / Video AV-GP SATA 3.5" Hard Disk, up to 14TB



WARNING: On NVR systems use specific audio/video disks.
For more information, read our dedicated article .

HARD DISK NOT INCLUDED



Video Content analsysis

SUPPORT SMART CAMERAS

It can connect to HYUNDAI intelligent IP cameras and realize VCA alarm recording, playback, and replay.

Supports special cameras, such as people counting cameras, ANPR (license plate recognition) cameras or fisheye cameras

SMART SEARCH

This feature allows you to quickly obtain various motion videos by simply drawing an area during playback. Very useful in case you encounter an emergency.

Funzione Smart Search

4K Risoluzione Ultra HD

ULTRA HD RESOLUTION

New ULTRA HD 4K Technology!
Resolution even higher than FULL-HD!
More detail available, greater sense of depth and realism.

This NVR features:

1 HDMI video output (4K) and 1 VGA output (1080P)

Questo DVR presenta ingressi / uscite audio This NVR features 1 input + 1 RCA Audio output
Questo DVR presenta 8 ingressi allarme e 1 uscita allarme This NVR features 4 Inputs + 1 Alarm Outputs
Porta USB IN This NVR features 1xUSB 2.0, 1xUSB 3.0
Questo DVR presenta 2 porte RJ-45 ( 10 / 100 / 1000Mbps) This NVR features 2 RJ45 ports (10/100/1000Mbps)
Menu multilingua

This recorder features multilingual menus

Technical data sheet

Model HYU-1138
Specifications
8 IP camera inputs
H.265+, H.265, H.264+ and H.264 compression formats
Incoming bandwidth 80Mbps
Outgoing bandwidth 256 Mbps
Independent HDMI 4K and VGA 1080P video outputs
BNC video output
Output split: 1, 2, 4, 4, 6, 8, 9
Bidirectional audio 1 RCA input / 1 RCA output
Recording resolution 32MP, 24MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, UXGA, 720P, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Supports up to 4 channels at 32MP/24MP.
Decoding ability With AI on: 20 1080P channels at 30 fps
With AI off: 32 channels 1080P at 30 fps
Intelligent analysis based on deep learning algorithm
Perimeter protection up to 4 channels
Face recognition with up to 16 face libraries and 50,000 face images in total, up to 8-channel face matching and 4-channel face detection
Motion detection 2.0 with person and vehicle classification
ANPR on all channels with vehicle and license plate attributes
8-channel synchronized playback
Alarm channels 4 inputs / 1 output
Storage 2 SATA ports up to 14TB (HDD not included)
Supports multiple VCA (Video Content Analytics) events from IP cameras
Smart search
POS triggered recording and alarming possible
Overlay POS information on live view and playback
Auto-adaptive Ethernet RJ45 (10/100/1000M) network interface
Network protocols TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Onvif (S/G), SDK, ISAPI support
Up to 128 remote connections
Compatible with IE11, Chrome, Firefox, Safari, Edge browsers
Connections 1 USB 2.0, 1 USB 3.0
Back panel incorporates 8 independent (100Mbps) PoE+ 802.3af/at PoE+ ports
PoE delivery ≤150W
Power supply: 100V ~ 240V AC
NVR power consumption: ≤30W
Operating temperature -10°C ~ +55°C
Relative humidity 10~90%
Dimensions 385 (W) x 52 (H) x 317 mm
Weight ≤2.5kg

Further details

No additional details

Download

Download the English Brochure (not available)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
