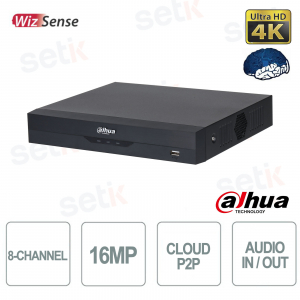

8-Channel IP NVR 4K H.265 up to 16MP 1HDD Audio - WizSense - Dahua

8-Channel IP NVR 4K H.265 up to 16MP 1HDD Audio - WizSense - Dahua
BEST PRICE -58%

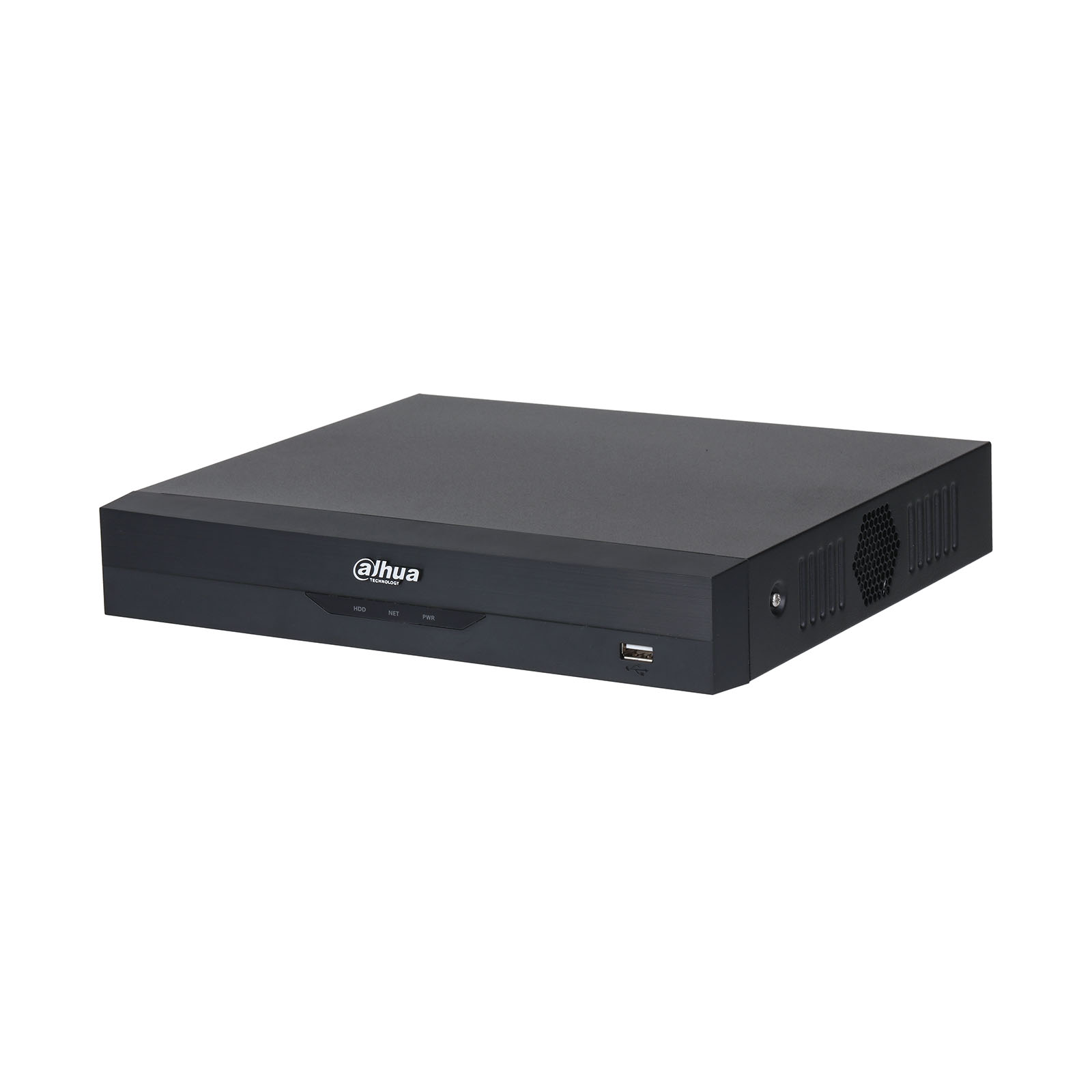

NVR4108HS-EI - IP NVR Video Recorder for Surveillance 8 Channels up to 16Megapixel 4K ULTRA-HD in preview and playback, Max 80Mbps bandwidth, Video Compression H.265+ / H.264, 1 HDMI (4K), 1 VGA, Max 1HDD SATA 16TB, 2 USB Ports, Audio, 1 RJ-45 10/100Mbps port. ONVIF compatible, support Video Analysis. WizSense Series. Dahua



referencia : NVR4108HS-EI

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-03-19 12:15:55 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DAHUA: DEBAJO DEL COSTE×


 DESCUENTOS INCREÍBLES
en una selección de productos DAHUA
 Descubre la promoción ahora >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

SSD1TB PRECIO DE CHOQUE!×


 SSD1TB SHOCK PRICE!
Same price as the NON-SSD version!
Only 100 pieces!
  Buy now >>

LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

8 CHANNEL 4K ULTRA-HD IP NVR UP TO 16 MEGAPIXEL - H.265.+ - VIDEO AUDIO ANALYSIS - DAHUA WIZSENSE SERIES

Made by Dahua
8 Channel IP NVR - New 4K Series - Dahua - WizSense
8 4K ULTRA-HD channels up to 16Megapixel - Max 80Mbps broadband - H.265+
ONVIF® Compatible - Video Analytics Supported - Audio
Supports 16TB SATA HDD ( not included ) - 24 months warranty


4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD Technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition viewing. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on H265 standard, the new video compression that allows savings of up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.



Product details

NVR4108HS-EI

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

4K Risoluzione Ultra HD New ULTRA HD 4K Technology!
Resolution even higher than FULL-HD!
More detail available, greater sense of depth and realism.
8 Canali IP

8 Channels up to 4K ULTRA-HD 16 Megapixel in preview and playback !

Recording Resolution: 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF

Max 80Mbps of incoming broadband

Support ONVIF® Version 2.4 IP cameras
Questo DVR supporta telecamere per la videosorveglianza Supports IP cameras: Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more

(the functioning with the models proposed here must be verified on a case by case basis)
Funzione Video Analisi

This video recorder supports some Video Analysis functions:
- Heat map
- Crossing the line
- Intrusion
- People counting


Full HD

Cloud function with Easy4IP

Funzione Video Analisi

This NVR supports cameras with built-in IVS (Video Analysis Functions)



Questo NVR presenta la visibilità da remoto fino a 20 utenti simultanei

Multiple Network Monitoring: Web viewer, CMS(DSS/PSS) & DMSS(Best CCTV Software for Mobile)

Questo NVR è compatibile con tutti i sistemi mobile: Android, Windows Mobile, Iphone, Blackberry, Symbian OS Compatible with all mobile devices: Android, iPhone,
Android, Iphone,
PoE Power Supply Equipped with: 1 SATA III Port, up to 16TB capacity. (Hard drive not included)

WARNING: On NVR systems use specific audio/video disks.
For more information, read our dedicated article .
Funzione Motion Motion Function. Recording starts when the camera detects motion.
1x RJ-45 (10/100Mbps)
IP66 Waterproof This NVR features 2x USB Ports
4K Risoluzione Ultra HD

Resolution up to 4K via HDMI port!

New ULTRA HD 4K Technology!
Resolution even higher than FULL-HD!
More detail available, greater sense of depth and realism.

This NVR Features 1x VGA port

Questo DVR presenta ingressi / uscite audio This DVR features 1 audio input and 1 audio output
Funzione Dynamic DNS Dynamic DNS: allows you to reach the NVR even in the case of a Dynamic IP
Funzione invio email in caso di notifica

This NVR has email sending.
In case of events (camera blur, signal cut, motion, broken disk, network problems etc...), it is able to send a notification via email, an audible notification or upload videos & screenshots via FTP

It also records and sends snapshots to external Cloud Storage (Dropbox, Skydrive)

Warranty

This product is covered by a 24 month warranty.

Technical data sheet

Model: DVR NVR4108HS-EI
SYSTEM
Main Processor Industrial-grade embedded processor
Operating System Embedded Linux
Operation Interface Web Local GUI
TO THE
AI by Recorder Face detection, face recognition, perimeter protection, and SMD Plus;
AI by Camera Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map
Perimeter Protection
Perimeter Performance AI by Recorder (Number of Channels) 2 channels, 10 IVS rules for each channel
Perimeter Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
Face Detection
Face Attributes Gender; age group; glasses; expressions; face mask; beard
Perimeter Performance AI by Recorder (Number of Channels) 1 channel (up to 12 face images/s each channel)
Face Detection Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
Face Recognition
Face Database Capacity Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Perimeter Performance AI by Recorder (Number of Channels) 8-channel FD (by camera) + FR (by recorder), image stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s
Face Recognition Performance of AI by Camera (Number of Channels) All channels (8 targets/s)
SMD Plus
SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
SMD Plus by Camera All channels (16 targets/s)
Audio and Video
Access Channel 8 channels
Network Bandwidth 80 Mbps for access, 80 Mbps for storage and 80 Mbps outing
Resolution 16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 960p; 720p; D1; CIF
Decoding Capability AI disabled: 2-channel 16 MP@30 fps; 2-channel 12MP@30fps; 4-channel 8MP@30fps; 4-channel 6MP@30fps; 6-channel 5MP@30fps; 8-channel 4MP@30fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel 12MP@30fps; 3-channel 8MP@30fps; 3-channel 6MP@30fps; 4-channel 5MP@30fps; 6-channel 4MP@30fps; 8-channel 1080p@30fps
Video Output 1 HDMI, 1 VGA
HDMI: 3840×2160, 1920×1080, 1280×1024, 1280×720
VGA: 1920×1080, 1280×1024, 1280×720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.
Multi-screen display Main Screen: 1/4/8/9
Sub Screen: 1/4/8/9
Third Party Camera Access Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
Standard Compression
Video Compression Smart H.265+/H.265/Smart H.264+/H.264
Audio Compression

G.711a; G.711u; PCM; G726

Network
Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access iOS; Android
Standard Access ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK
Browser Chrome; IE9 and later; Firefox
Record Playback
Multichannel Playback Up to 8 channels
Record Mode General, motion detection; intelligent; alarm
Backup USB device and network
Playback Function Instant playback, general playback, event playback, tag playback, smart playback
ALARM
General Alarm Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm
Anomaly Alarm Camera disconnection; storage errors; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception
Smart Alarm Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map
Alarm Linkage Record; snapshot; IPC external alarm output; audio; buzzers; log; presets; e-mail
PORT
Audio Input 1-channel RCA
Audio Output 1-channel RCA
Disk Interface 1 SATA port. Each disk can contain up to 16 TB. This limit varies depending on the environment temperature.
USB 1 front USB 2.0 port, 1 rear USB 2.0 port
HDMI 1
VGA 1
Network port 1 (10/100 Mbps Ethernet port, RJ-45)
GENERAL PARAMETER
Power Supply DC12V, 2A
Power Consumption ≤ 10W (without HDD)
Net Weight 0.81kg (1.79 lb) (without HDD)
Gross weight 1.43 kg (3.15 lb)
Dimensions 260.0 mm × 232.5 mm × 47.6 mm(10.24" × 9.15" × 1.87") (W × D × H)
Packaging Dimensions 334 mm × 89 mm × 314 mm (13.15" × 3.50" × 12.36") (W × D × H)
Operating Temperature -10°C to +55°C (+14°F to +131°F)
Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity 10%–93% (RH), non-condensing
Installation Rack or desktop
Certification FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014

Further details

Schema dimensioni NVR4108HS-4KS2/L
