Description Product Details Technical Sheet Further Details Download

SUPER NVR IP SERVER 256 CHANNELS - UP TO 32MEGAPIXEL 4K - 768MBPS - RAID SUPPORT - REDUNDANT POWER - DAHUA - IVSS7124-8I

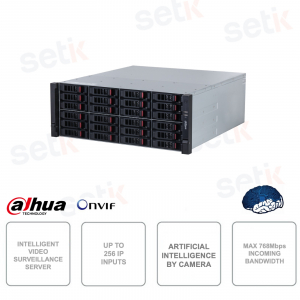

Super NVR IP Server Dahua - IVSS7124-8I
256 Channels up to 32Megapixel 4K ULTRA-HD - Up to 768Mbps Bandwidth - H.265+
Up to 24HDD supported - RAID support RAID 0/1/5/6/10/50/60 - AI camera support - ANPR - Variable speed smart fan -
Alarm 16 inputs + 8 outputs / Audio 1 input and 1 output - RS232/RS485 - eSATA - 4x HDMI/1xVGA/4xUSB - 1+1 Redundant Power Supply

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?
4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition viewing. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160! Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on H265 standard, the new video compression that allows savings of up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

4K TECHNOLOGY - ULTRA HD - WHAT DOES IT MEAN?

4K Ultra HD Technology 4K technology (also called ULTRA HD ) is one of the latest innovations in the field of high definition viewing. 4K corresponds to the resolution of 4 Full-HD, so 3840 X 2160!
Already used in the consumer electronics sector, it is finally arriving in the world of security. The new generation of DAHUA devices, in fact, allows the support of cameras up to 12MPX on H265 standard, the new video compression that allows savings of up to 50% compared to the previous H264. Thanks to the 4K output it is also possible to view (on a 4K monitor) the image with its maximum detail.

Product details

Dahua IVSS goes beyond ordinary NVR products. IVSS7124DR-16I is an intelligent Video Surveillance Server that combines video management functionality with traditional video storage functions in one device. It basically works as a network video recorder, but integrates features such as face detection and face recognition for various business and industrial applications. A new user interface design supports the operation and maintenance of the device management, improving the value and experience of surveillance viewing, and serving the era of big data security.
	New ULTRA HD 4K Technology! Resolution even higher than FULL-HD! More detail available, greater sense of depth and realism.
	256 IP Channels! Recording up to 32 Megapixel 4K ULTRA-HD! Max 768Mbps bandwidth
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	Supports ONVIF® Profile S, T and G IP cameras
	Artificial intelligence This recorder supports AI cameras Available AI functions: 1) FACE DETECTION: 128 Channels. Support 6 properties: Gender, age range(6 levels), glasses, expressions(8 types), mouth mask, and beard 2) FACE RECOGNITION: 128 Channels 3) VIDEO METADATA: 64 Channels. Support Physical Features, Vehicle Features, Non-Motorized Vehicle Features. 4) PERIMETER PROTECTION: 256 Channels -
	ANPR \| Automatic license plate recognition Up to 160 channels 2MP or 80 channels 4MP Channels 50 license plate databases with 500,000 license plate numbers in total. Supports allowlist/blocklist
	Smart Tracking Function The Smart Tracking PTZ function automatically tracks a moving target across the camera's entire field of view. This feature is ideal for tracking an object as it moves through airports, parking lots, city centers, or other scenarios.
	Multiple Network Monitoring: Web viewer, CMS(DSS/PSS) & DMSS(Best CCTV Software for Mobile)
	Supports up to 24 SATA Audio / Video AV-GP SATA3.0/SAS Hard Disks ( Max 20TB each ) It also works without a hard disk, even REMOTELY! WARNING: On NVR systems use specific audio/video disks. For more information, read our dedicated article . Also present 1 eSATA port HARD DISK NOT INCLUDED! RAID Function: RAID mode allows you to replicate the contents of a disk onto a second disk, thus ensuring data reliability in the event of disk failure and continuity of service. RAID 0/1/5/6/10/50/60

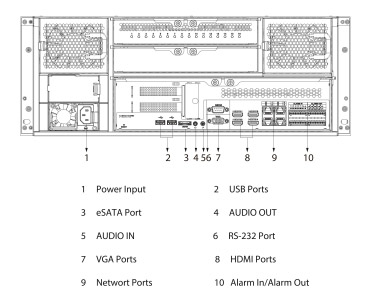

	This NVR features 4x USB ports (2x USB2.0 on the front, 2x USB3.0 on the back)
	Equipped with 4 HDMI ports with 4K output support (on HDMI output 1)! New ULTRA HD 4K Technology! Resolution even higher than FULL-HD! More detail available, greater sense of depth and realism.
	This product features 1x VGA ports with 1080P resolution!
	RS 485 for peripheral PTZ control. Supports various protocols
	RS 232 for debug or transparent COM data
	With 16 input + 8 output alarm relay for burglar alarms or other devices and to activate external peripherals (gates, sirens, etc.)
	This NVR features 1 audio input and 1 audio output (speaker output, audio linkage)
	This NVR has email sending. In case of events (camera blur, signal cut, motion, broken disk, network problems etc...), it is able to send a notification via email, an audible notification or upload videos & screenshots via FTP
	Motion Function. Recording starts when the camera detects motion.
	4x RJ-45 (10/100/1000/25000Mbps) self-adaptive.
	Also rack mountable!
	100–127/200–240VAC, 50/60Hz, 7/3.5A 1+1 Redundant Power Supply
	This product is covered by a 24 month warranty.

Technical data sheet

IVSS7124-8I

System

Main Processor

64-bit multi-core processor

Operating System

Embedded Linux OS

Operating Interface

Web (PCAPP), local GUI

AI Applications

AI by Camera

Face detection; face recognition; video metadata (human; vehicle; non-motor vehicle); IVS; license plate comparison; tripwire people counting; regional people counting; abnormal number of people in queue; smoking detection; call detection; face & body detection; SMD

AI by Recorder

Face detection; face recognition; entries frequency; video metadata (human; vehicle; non-motor vehicle); metadata attributes alarm by recorder; IVS;

AcuPick

1.AI by Recorder: Supports 256-channel 2 MP or 128-channel 4 MP resolution

2.AI by Camera: Supports 160-channel 2 MP or 80-channel 4 MP resolution

Face Detection

Face Detection

1. AI by Recorder: 128-channel 2 MP or 128-channel 4 MP with normal IP camera;
2. AI by Camera: 160-channel 2 MP or 80-channel 4 MP resolution with face detection IP camera;
3. Supports 6 properties: Gender, age, glasses, expression, face mask, and beard

Search by Image

Search by Image

Search by image in the face database, search by face or human body images, and 1:1 face recognition.

Face Recognition

Face Database Capacity

1,100 human face databases with 500,000 face pictures in total
2. 5 passerby databases with 500,000 face pictures in total
The human face database and the passerby database share the total capacity and number of face images.

Face Recognition

1. AI by Recorder: 256-channel 2 MP or 256-channel 4 MP with normal IP camera; 160-channel 2 MP or 80-channel 4 MP with face detection IP camera (Totally 160 × 2 MP or 80 × 4 MP face pictures analyzed per second);

2. AI by Camera: 160-channel 2 MP or 80-channel 4 MP with face recognition IP camera;

3. Supports entries frequency alarm

Vehicle License Plate Comparison

License Plate Database Capacity

1. 50 plate databases with 500,000 plate numbers in total
2. Supports allowlist and blocklist

Vehicle License Plate Comparison

Supports 160-channel 2 MP or 80-channel 4 MP resolution with ITC

Video Metadata

Video Metadata

1. AI by Recorder: Supports 128-channel 2 MP or 128-channel 4 MP resolution
2. AI by Camera: Supports 160-channel 2 MP or 80-channel 4 MP resolution
3. Object type:
Human body: Gender, age, sleeves length, top color, bottom type, bottom color, bag, rain coat, umbrella, hat, hairstyle, direction, hold a baby, face mask
Vehicle: Vehicle type, vehicle color, plate color, logo, calling, seatbelt, ornament
Non-motorized Vehicle: Non-motor vehicle type, non-motor vehicle color, number of passengers, umbrella, rain coat, bag, sleeve, length, top color, hat, hair style, face mask

IVS Analytics

IVS

1. AI by Recorder: Supports 128-channel 2 MP or 128-channel 4 MP with normal IP camera
2. AI by camera: Supports 160-channel 2 MP or 80-channel 4 MP
3. Rules: AI by Recorder: tripwire, intrusion, crowd gathering, loitering detection and parking detection
AI by Camera: tripwire, intrusion, abandoned object, missing object, fast moving, crowd gathering, loitering, parking, and fence-crossing

Intelligent Task Analytics

Intelligent Task Analytics

Local video records, import DAV videos from external devices for analysis

Video Diagnosis

Video Diagnosis

1. Supports 1-channel tour detection
2. Supports 12 detection items: Video tampering, scene changing, video jitter, noise detection, stripe interference, video loss, image freeze, overexposure, defocus detection, video color cast, abrupt image change and low contrast

Audio and Video

Access Channel

256-channel

Network Bandwidth

Incoming bandwidth: 768 Mbps
Recording bandwidth: 768 Mbps
Outgoing bandwidth: 768 Mbps

Resolution

32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p

Decoding Capability

1-channel 32MP@30fps; 2-channel 24MP@30fps; 3-channel 24MP@24fps; 4-channel 16MP@25fps; 7-channel 12MP@20fps; 7-channel 8MP @30fps; 14-channel 8MP@15fps; 9-channel 6MP@30fps; 11-channel 5MP@30fps; 13-channel 5MP@25fps; 14-channel 4MP@30fps; 22-channel 4MP@20fps; 18-channel 3MP @30fps; 22-channel 3MP @25fps; 14-channel 1080p@60fps; 28-channel 1080p@30fps; 63-channel 720p@30fps

Video Output

1-channel VGA output, 4-channel HDMI output, VGA 1/ HDMI 1 outputs the same video source.

Multi-screen display

1st Screen: Max.64-channel;
2nd Screen: Max.16-channel;
3rd Screen: Max.1-channel;
4th Screen: Max.1-channel

Third Party Camera Access

Onvif, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung

Standard Compression

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264

Audio Compression

G.711a;G.711u;PCM;G.726

Network

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;P2P;iSCSI

Mobile Phone Access

DMSSS

Interoperability

ONVIF (Profile S, T and G); CGI; SDK

Browser

Chrome; PCAPP; IE9 or higher; Firefox

Network Mode

Multiple-address mode;Load balance;Fault-tolerance;Link aggregation

Recording Playback

Multichannel Playback

Max. 16-channel playback

Record Mode

Search video detection; I alarm; thermal imaging; intelligent event; all record file

Storage Method

Internal HDD

Backup Method

HDD, peripheral USB storage device

Playback Function

1.Play; Breaks; Stop; Fast forward; Fastbackward; Reverse play; Frame by frame;
2.Full-screen; Backup (clips and files); Snapshots; Digital zoom; Audio on and off

Storage

Disk Group

Yes

Network Disk

iSCSI

RAID

RAID0;RAID1;RAID5;RAID6;RAID10;RAID50;RAID60

Record Management

Supports record control (continuous, event-based, scheduled, scheduled & event-based).

Alarm

General Alarm

Motion detection; tampering; local alarm; IPC external alarm; fire alarm; temperature alarm; temperature difference alarm; hot spot alarm; cold spot alarm

Anomaly Alarm

IPC offline alarm; storage errors; HDD full; IP conflict; MAC conflict; login lock; AI module temperature alarm; AI module offline; fan malfunction; no HDD; network security exception; power exception

Alarm Linkage

Record; snapshot (full image); alarm uploading; remote device alarm output; audio room; buzzers; log; presets; email, and smart tracking. Disarming alarm linkage action by period or one-click sync disarm config with channels

Port

Audio Input

1 channel

Audio Output

1 channel

Alarm Input

16 channels

AlarmOutput

8 channels

Disk Interface

24 slots, SATA3.0. Max.20TB/HDD

eSATA

1 port

RS-232

1 port, for debug or COM data transmission

RS-485

1 port, control peripheral PTZ and so on. Supports various protocols.

USB

4 ports. 2 USB2.0 ports at the front panel and 2 USB3.0 ports at the rear panel.

HDMI

4 ports. HDMI 1 supports 4K output.

VGA

1 port

Network Port

4 RJ-45 ports 10/100/1000/2500Mbps self-adaptive Ethernet ports

Power

Single supply

Network Port Extension

4 RJ-45 ports 10/100/1000/2500Mbps self-adaptive Ethernet ports;
2 × 10-GbE optical fiber ports (optional)

General

Disk Bay

Form Factor

Power Supply

100–127/200–240VAC, 50/60Hz, 7/3.5A

Power Consumption

Working(all HDDs connected): ≤ 420W(1433 BTU)
Working(without HDD): ≤ 150W(512 BTU)
Rated: ≤ 800W(2730 BTU)

Fan

Intelligent speed regulation fan

Net Weight

23.00 kg (50.71 lb)

Gross Weight

37.83 kg (83.40 lb)

Product Dimensions

Chassis: 446 mm× 543.4 mm× 175 mm (17.51" × 20.57" × 5.24") (W × L × H)
Max. size: 482.6 mm (with hanger) × 522.4 mm × 133.2 mm (19.09" × 20.57" × 5.24") (W × L× H)

Packaging Dimensions

With packaging: 689 mm × 779 mm × 552 mm (27.13" × 30.67" × 21.73")(W × L × H)

Operating Temperature

0°C to +45°C (+32 °F to +113 °F)

Operating Humidity

10%–80% (RH), non-condensing

Operating Altitude

≤5000m (16404.20ft)

Installation

Desktop; Rack

Certifications

CE-LVD?EN 62368-1
CE-EMC?EN IEC 61000-3-2?EN 61000-3-3?EN 55032?EN 50130-4?EN 55035

Further details

Download

Download the English Brochure

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
